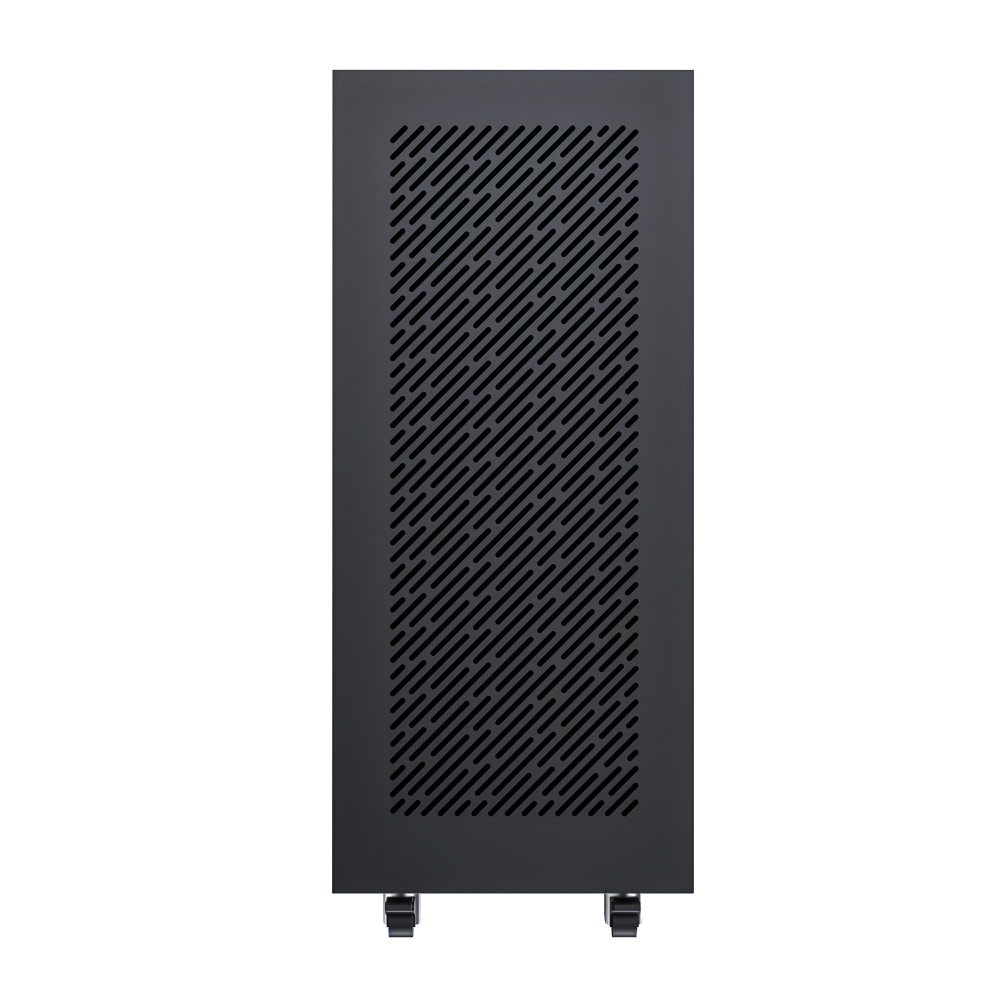

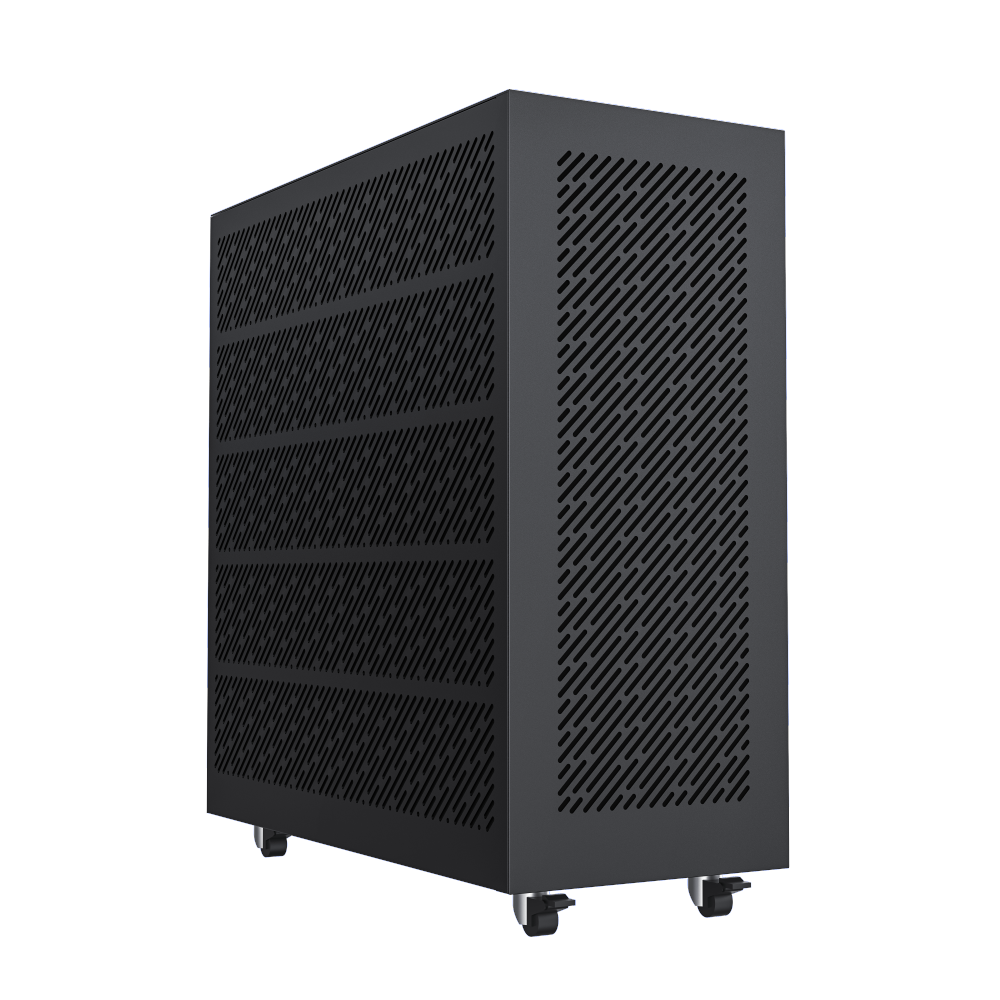

Sohoo AI Liquid Cooling Workstation
Product Overview The Sohoo AI Liquid Cooling Workstation is a tower-type AI server based on Intel® Xeon® W-series processors, with a motherboard designed to the E-ATX standard form factor. This product delivers outstanding computing performance, ultra-high cost-effectiveness, extreme quietness and superior heat dissipation capacity, and can be widely used in big data, cloud storage, distributed storage, warm storage, cold storage and other scenarios.
Core Advantages
Extreme Performance & Ultra-high Cost-Effectiveness
Supports 1 Intel® Xeon® W-series processor with powerful computing performance
Supports 8 DDR5 memory modules with a maximum frequency of 4800MT/s, increasing memory bandwidth by 50%
Based on E-ATX standard board design, it achieves ultra-high cost-effectiveness while meeting mainstream workload demands
Silent Heat Dissipation & High Efficiency & Stability
Adopts professional water cooling plate heat dissipation system with operating noise lower than 60dB, realizing library-level quietness
2×420 oversized cooling radiator design with dual water pump power system, improving heat dissipation efficiency by 100%
Mature and reliable liquid cooling solutions for both GPU and CPU, ensuring precise and stable temperature control
6 intelligent speed-adjusting fans and dual ATX power supply design, perfectly balancing noise and heat dissipation
Fully enclosed liquid cooling circulation system with no leakage risk, ensuring stable long-term operation
Low-noise operating environment, suitable for office areas, laboratories and other noise-sensitive places
Mass Storage & Flexible Configuration
Supports up to 4 3.5-inch hard drives (compatible with 2.5-inch) and 4 2.5-inch hard drives
Supports 2 M.2 NVMe SSDs, providing ultra-high storage I/O performance to meet tiered storage requirements
Excellent scalability with up to 7 standard PCIe expansion slots
Supports a maximum of 4 single-width GPU cards to meet AI deep learning computing needs
Stable, Reliable & Intelligent Management
Tool-less disassembly and assembly for key system components
High-power dual water pumps effectively guarantee heat dissipation and long-term stable system operation
Intelligent temperature control system automatically adjusts heat dissipation efficiency according to load, saving energy and reducing noise
Comprehensive monitoring and management functions including fan abnormality alarm and temperature monitoring
| Functional Module | Specifications |
|---|---|
| Form Factor | SH-LC88L workstation |
| Processor | 1× Intel® Xeon® W-3500/2500/3400/2400 series processor |
| Chipset | Intel W790 |
| Memory | 8× DDR5 DIMM, 8 channelsMax. 64GB (RDIMM); Max. 256GB (3DS RDIMM)Max. speed: 4800 MT/s |
| Storage Controller | Optional various RAID cards / SAS HBA cards |
| Storage | Max. 4× 3.5" HDD / 8× 2.5" HDDSupports 2× M.2 (PCIe 4.0 x4, 2280&22110)Max. 4× U.2 NVMe SSD |
| PCIe Expansion | 7× standard x16 expansion slotsSupports up to 4 double-width GPU cards |
| Network | 2× 10Gb LAN ports (Intel X710-AT2) |
| Cooling System | 2× 420 cooling radiators, dual water pumpsProfessional liquid cooling with silent design |
| Noise Control | Low-noise design, operating noise ≤35dBIntelligent speed-adjusting fans |
| Fan | Supports 6 fan modules with intelligent speed regulation & abnormality alarm |
| Power Supply | Configurable with 2× ATX power modulesOptional 220V AC / 240V DC input |
| Security | Optional TPM/TCM security moduleChassis open intrusion detection, lockable chassis top coverSupports Intel SGX 2.0 security technology |
| Dimensions | W240mm × H582mm × D542mm |
| Operating Temperature | 5℃–35℃ (without direct light) |
| Storage Temperature | -40℃–65℃ |
| Operating Humidity | 8%–90% (non-condensing) |
| Storage Humidity | 5%–95% (non-condensing) |
| OS Support | Microsoft Windows Server, Microsoft Hyper-V ServerRed Hat Enterprise Linux, SUSE Linux Enterprise ServerCentOS, Ubuntu, Oracle LinuxVMware ESXi, Citrix XenServer |
