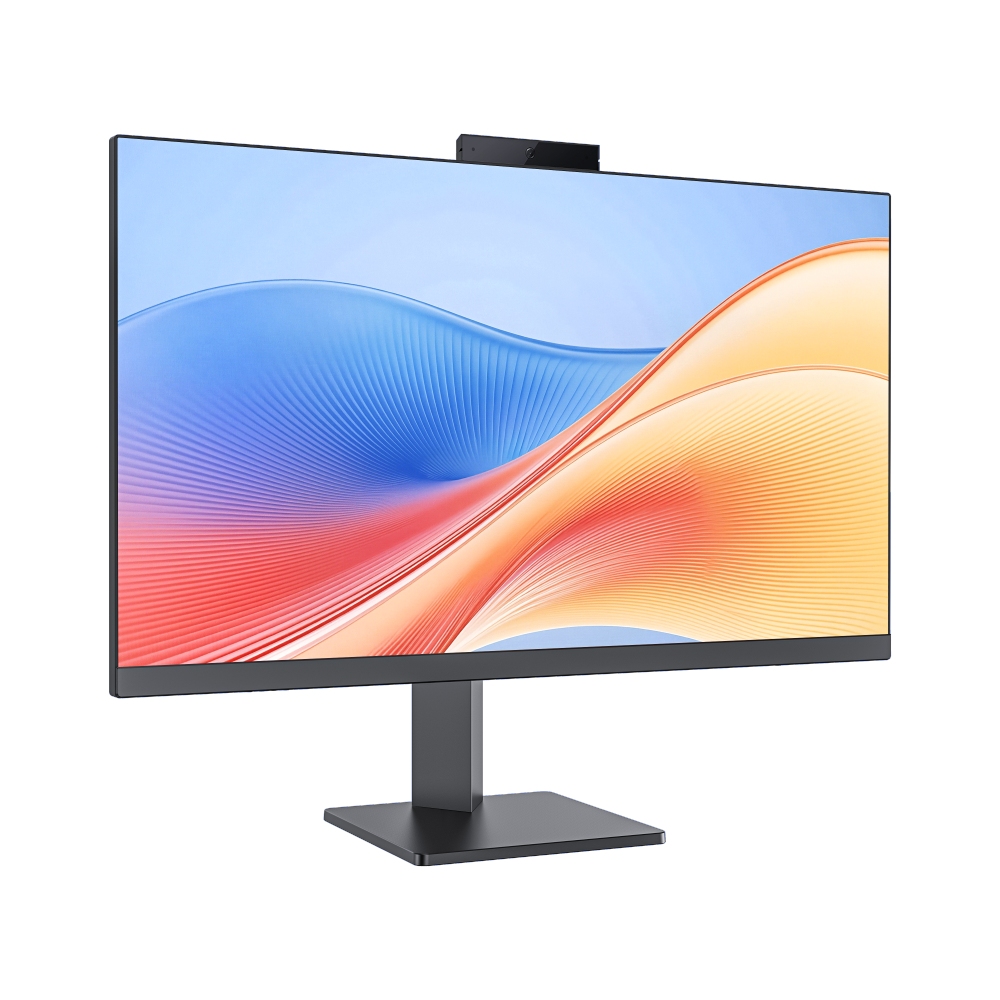

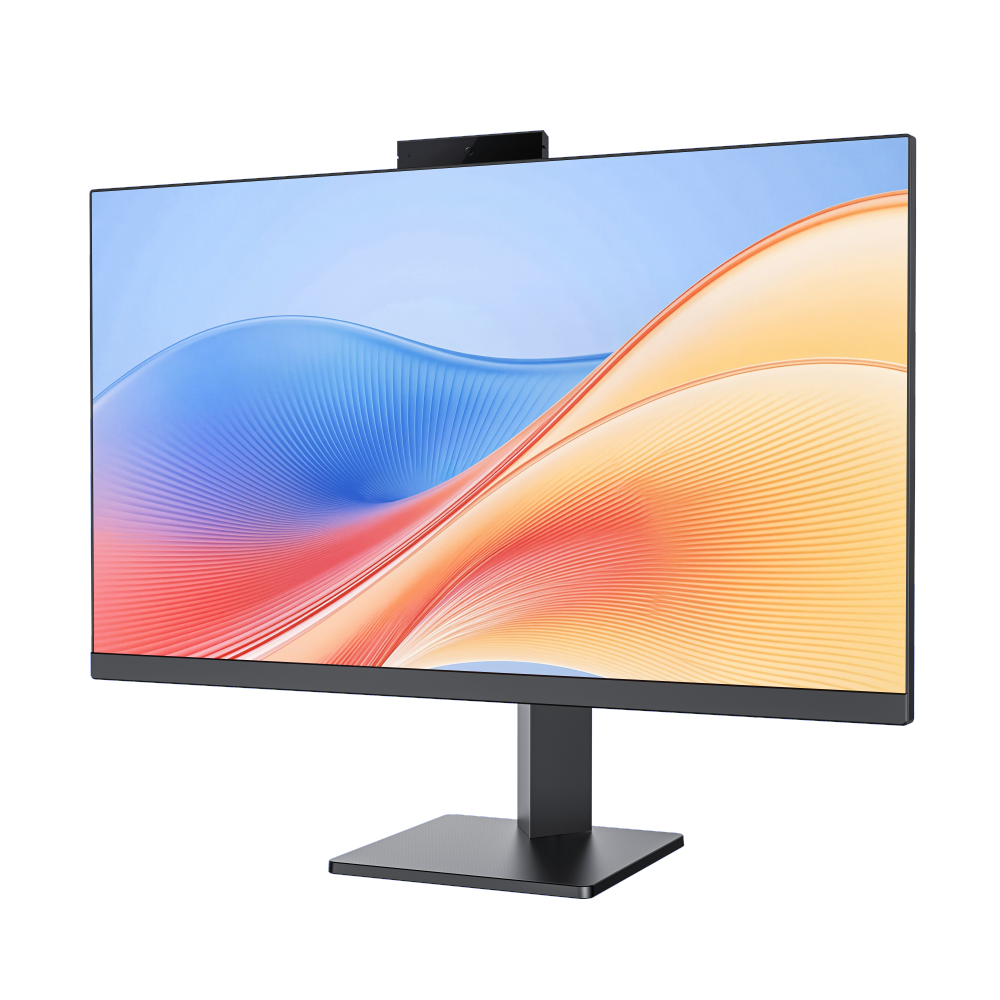

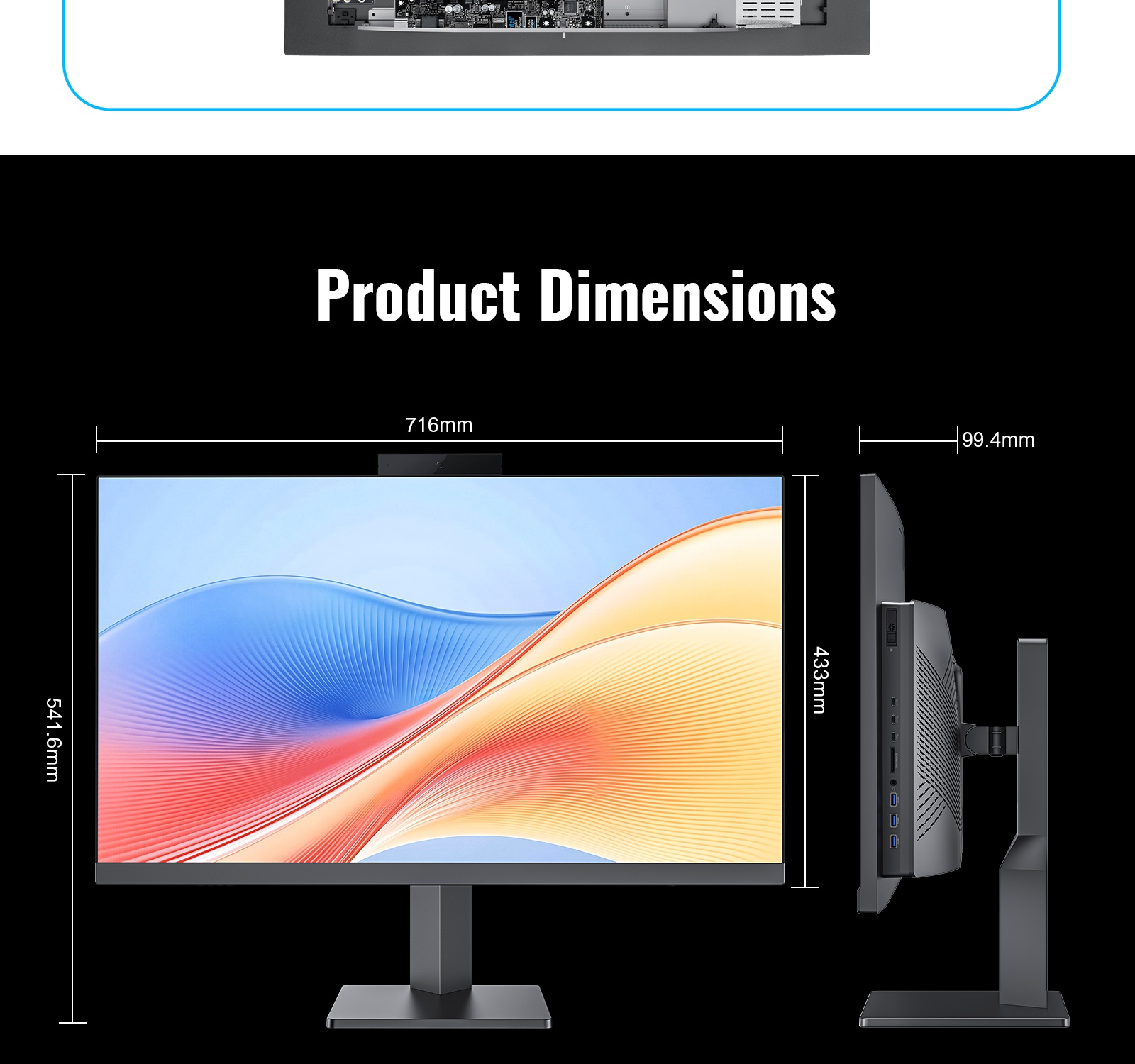

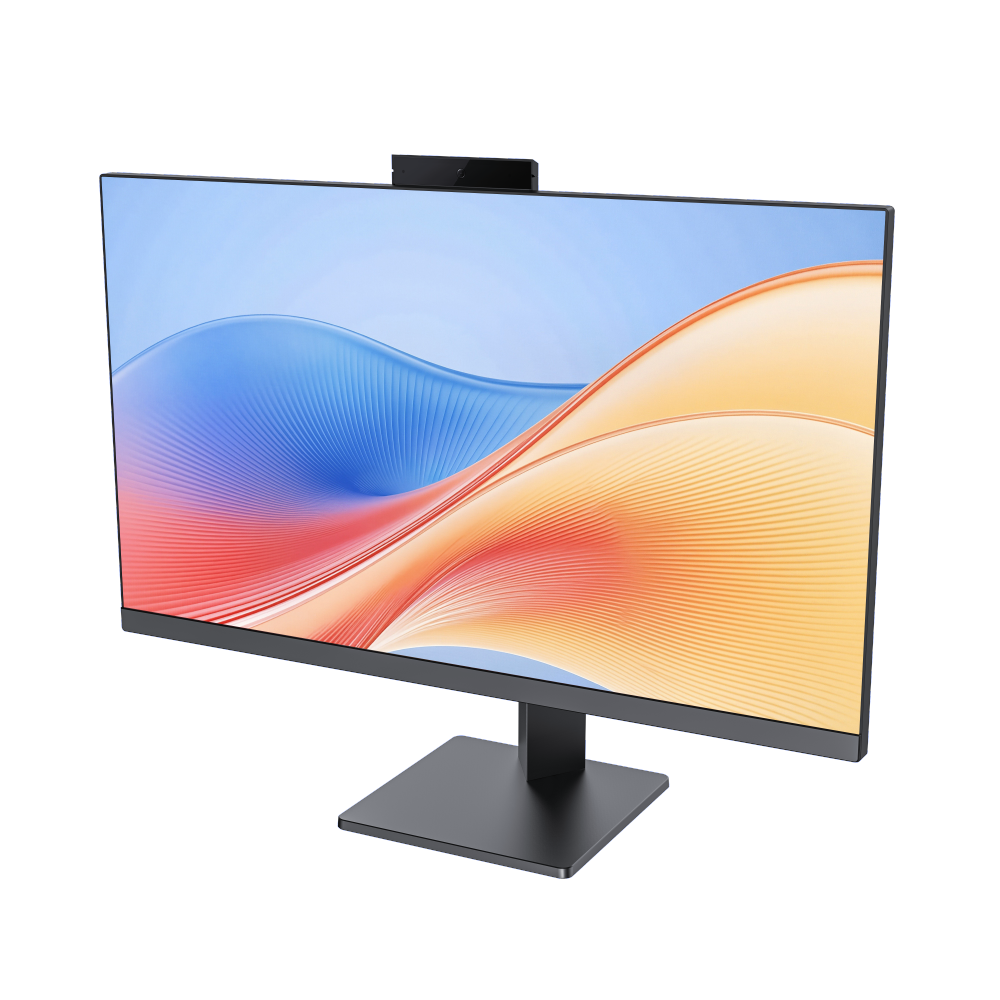

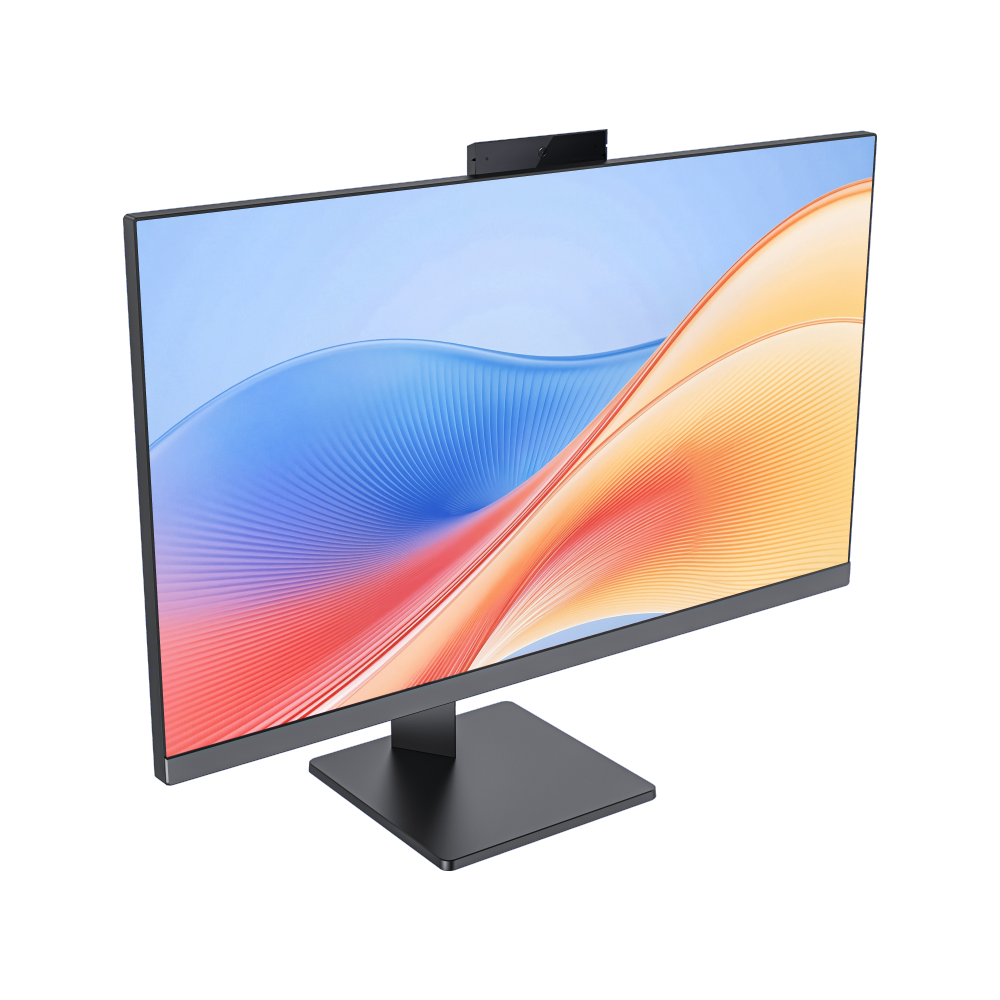

| LED Panel | Product Size | 31.5" |
| Display Size | 698.112(H) × 392.688(V) | |
| Resolution/refresh frequency | QHD2560*1440 100hz/180hz | |
| Aspect Ratio | 16:9 | |
| Panel Type | IPS/ADS | |
| Brightness | 300 CD/M²(Typical) | |
| Viewing Angle(H/V) | 178°/178° | |

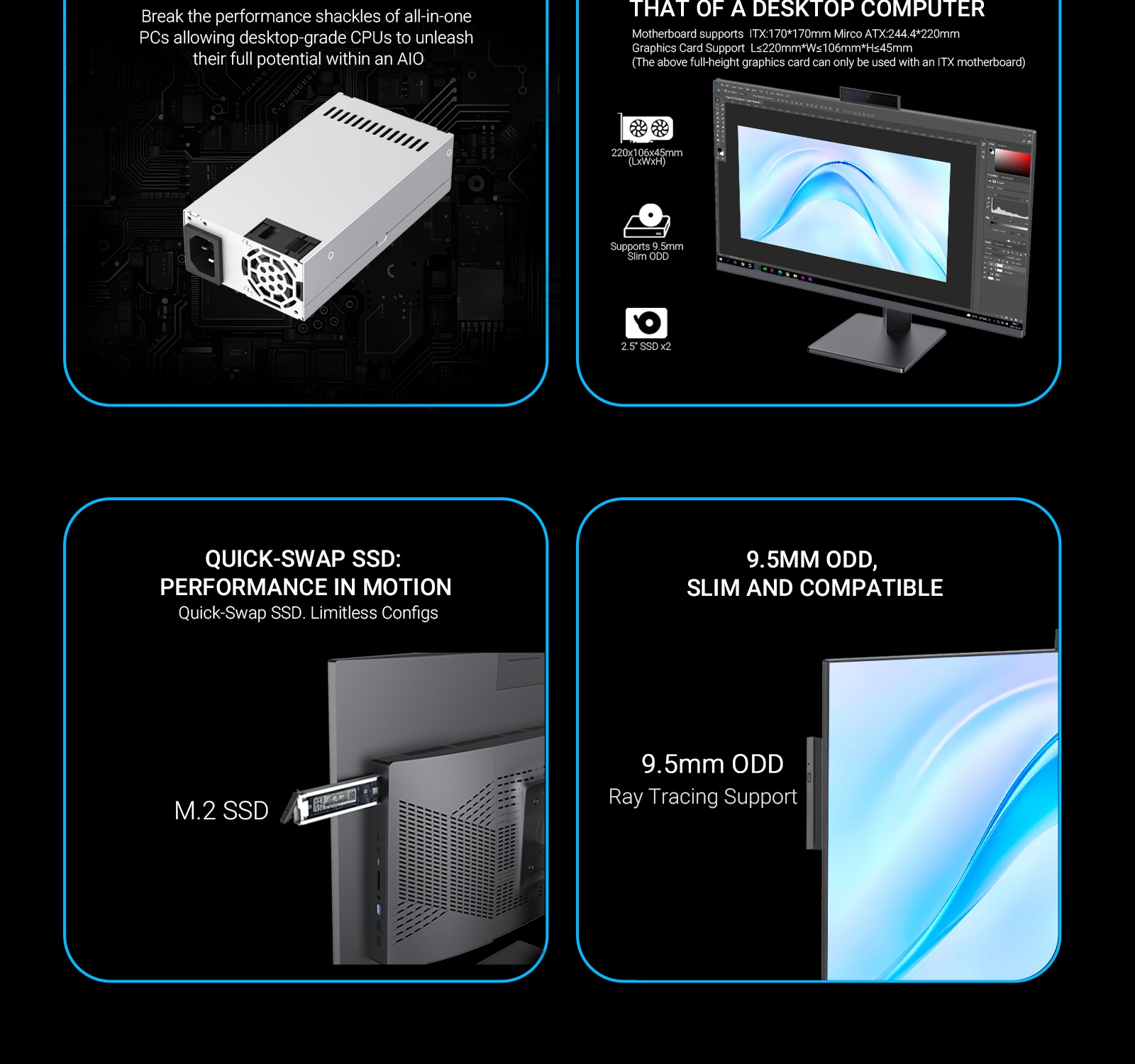

| Motherboard Type | Mirco ATX：244.4*210mm ITX::170*170mm(Can be optional install with video card when use ITX MB) | |
| Rear IO functional interfac | Basis on the Motherboard client will use | |

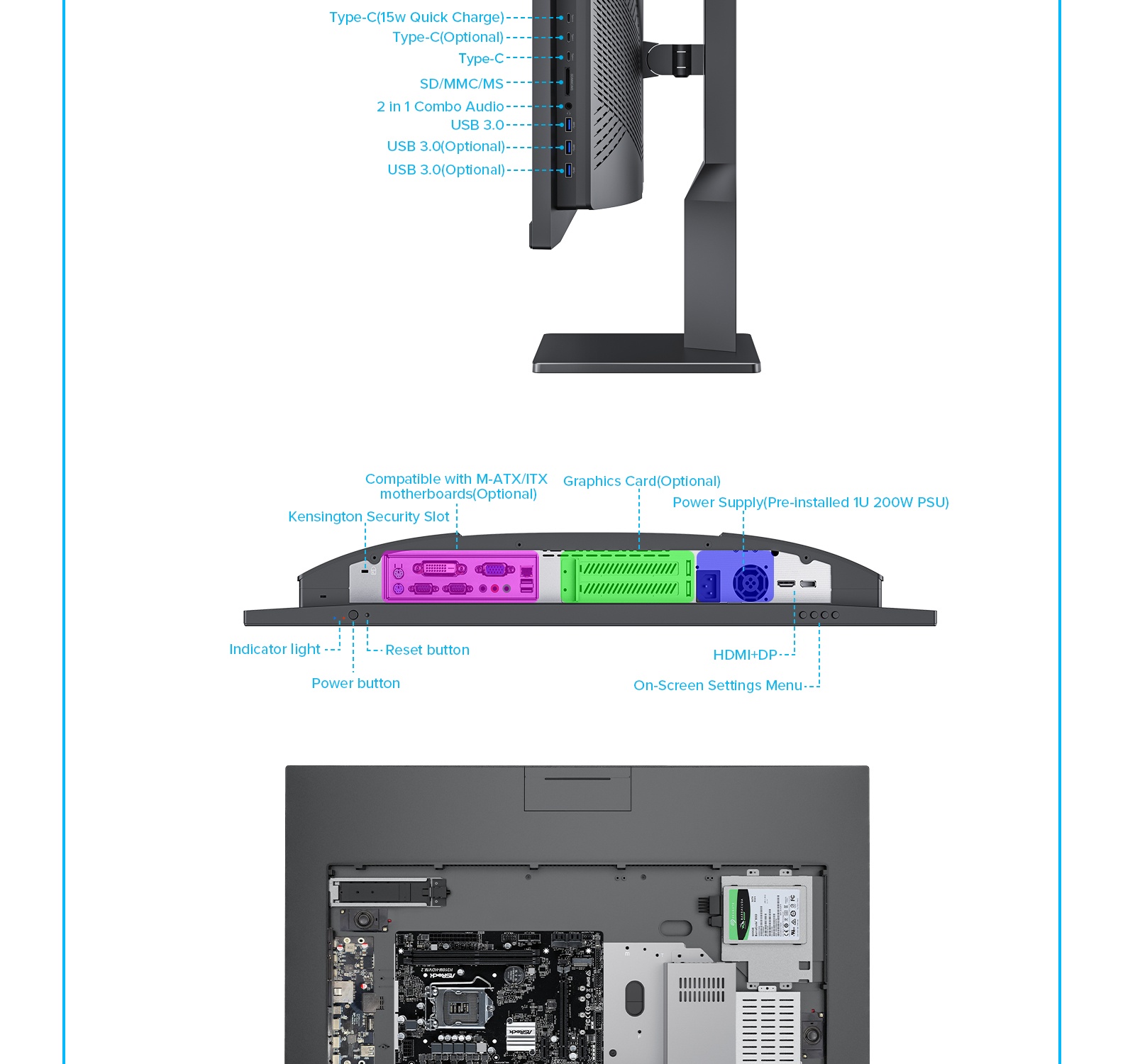

| Side Interface (Default) | USB3.0*1 ,Type-C-*1(Sharing 19pin),USB2.0*2+Type-C*2(Via USB2.0 HUB),SD/MMC/MS,Combo audio. PD15W | |
| Note: USB3.0*3, Type-C*3,all port via HUB3.0 Solution,Optional | ||
| Speaker | 4W*2 | |
| Power supply | AC range | AC 180-240V, 50/60Hz |
| Power watt | Flex True 250W 80+ APFC White (Label watt per OEM) | |
| Cooler Height | Height＜45mm | |
| Cameras | 8.0M Pixels , with dual Digital microphones | |
| Graphics card | Motherboard ITX:170*170mm (Can be equipped with video card L≤220mm*W≤106mm*H≤46mm） | |
| CPU | (Optional) | |
| DVD Drive | 9.5mm (Optional) | |
| DDR | (Optional) | |
| M2 Mobile Rack | 1x M2 Mobile Rack (Option) | Support NVME via USB link to MB( Default USB2.0, Option by Type-E (depend on MB) |
| SSD | (Optional) | |
| Fingerprint lock | (Optional) | |
| Function Keys | Power Switch Key，Menu Buttons | |

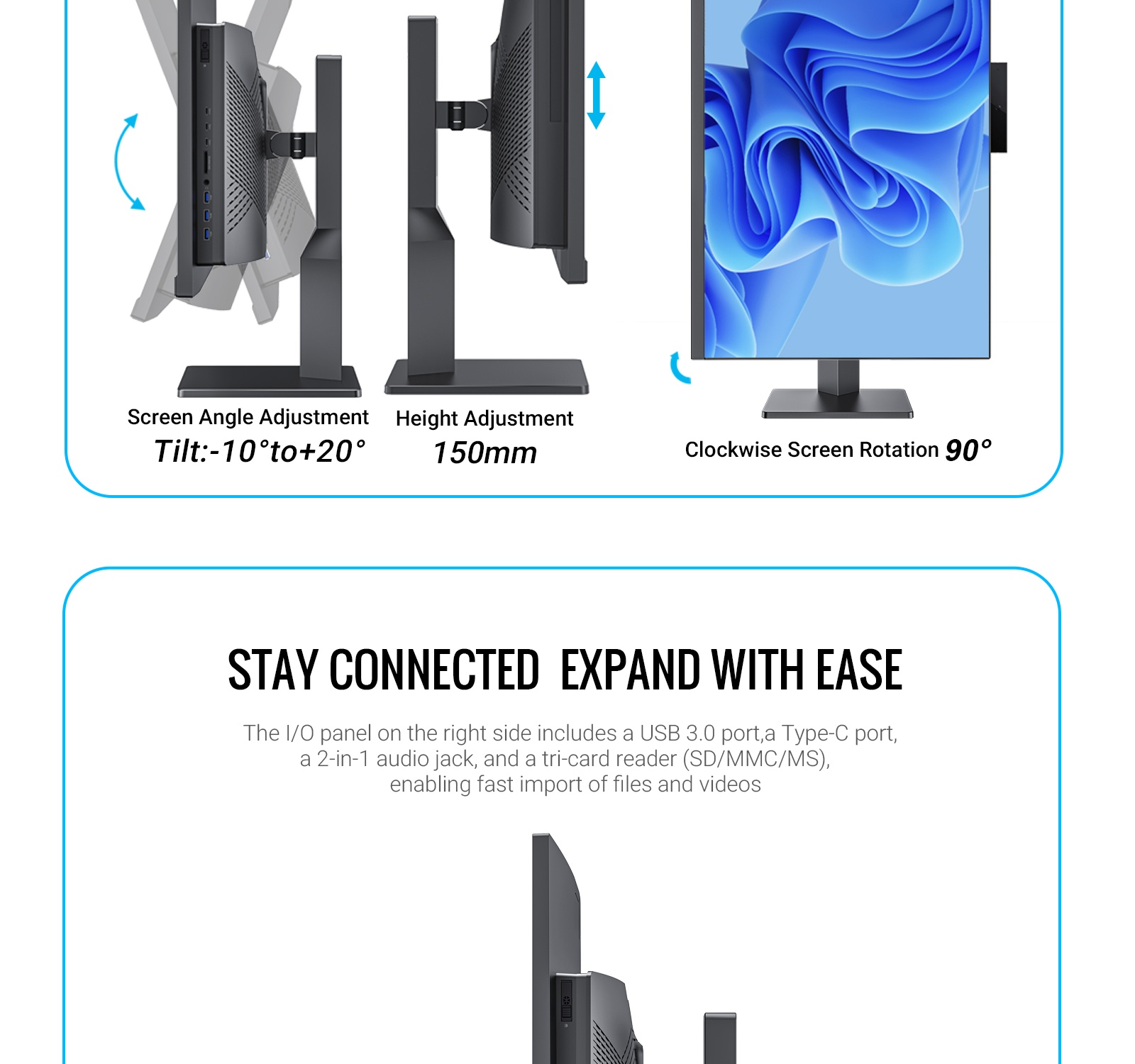

| Adjustable stand | UP/Down | 150mm |
| Angle adjustment | Lean forward 10° and lean back 22° | |

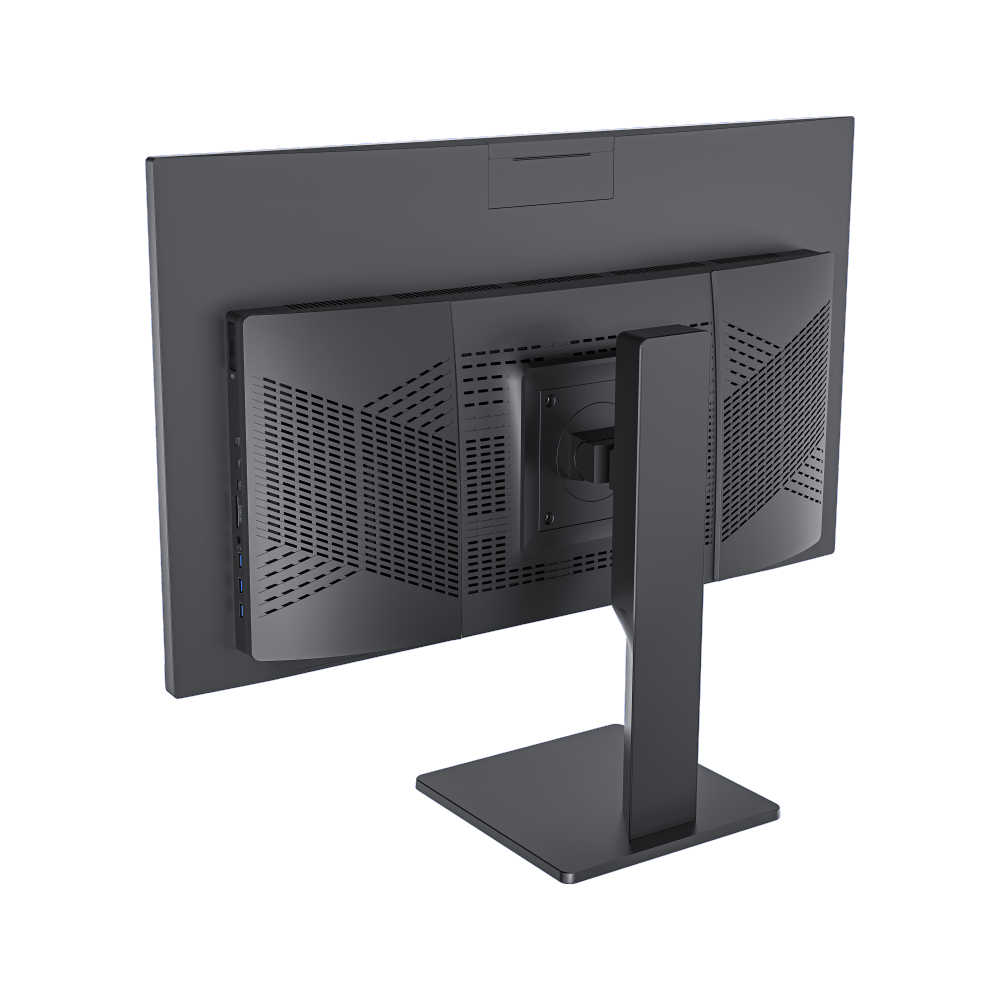

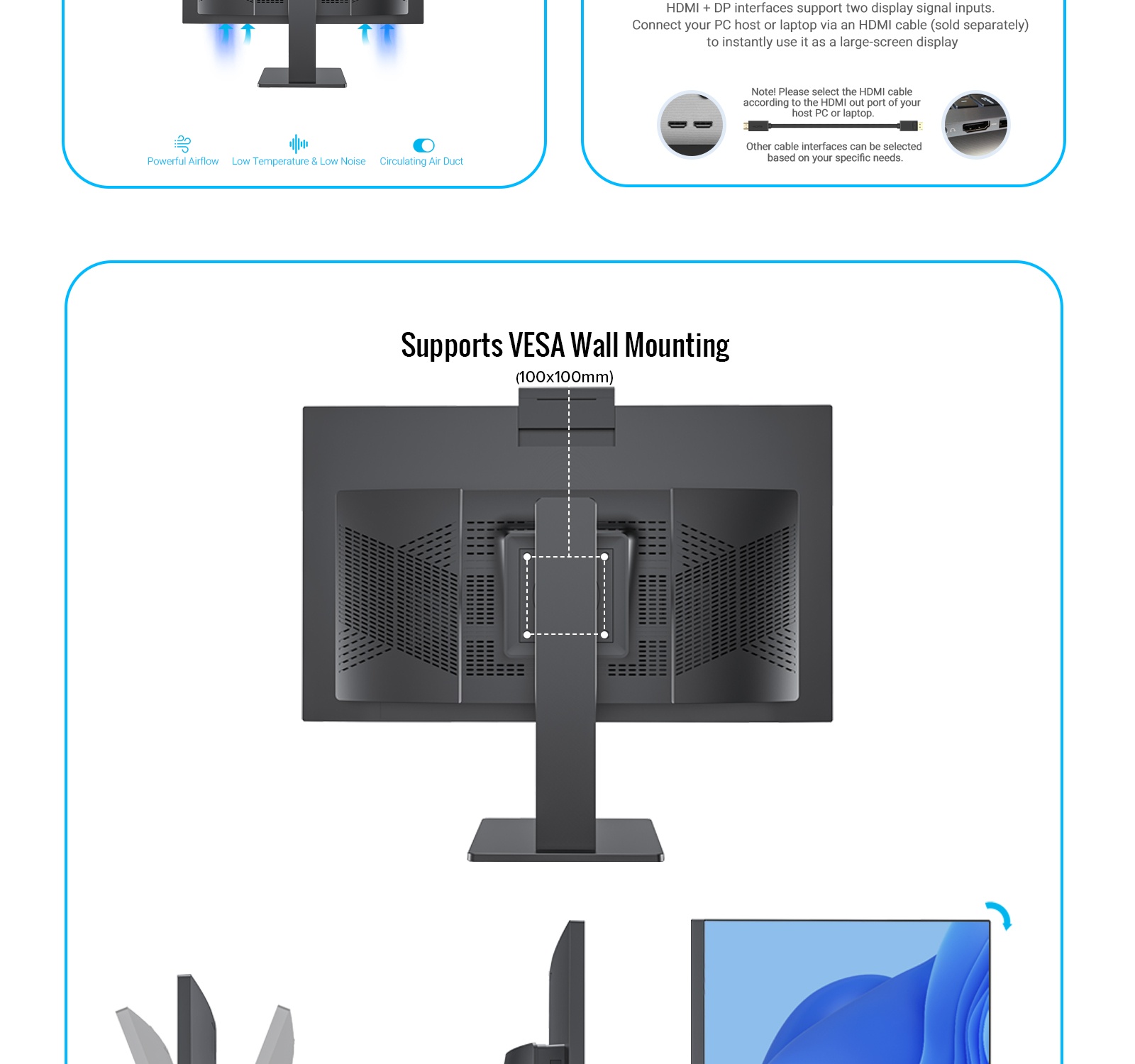

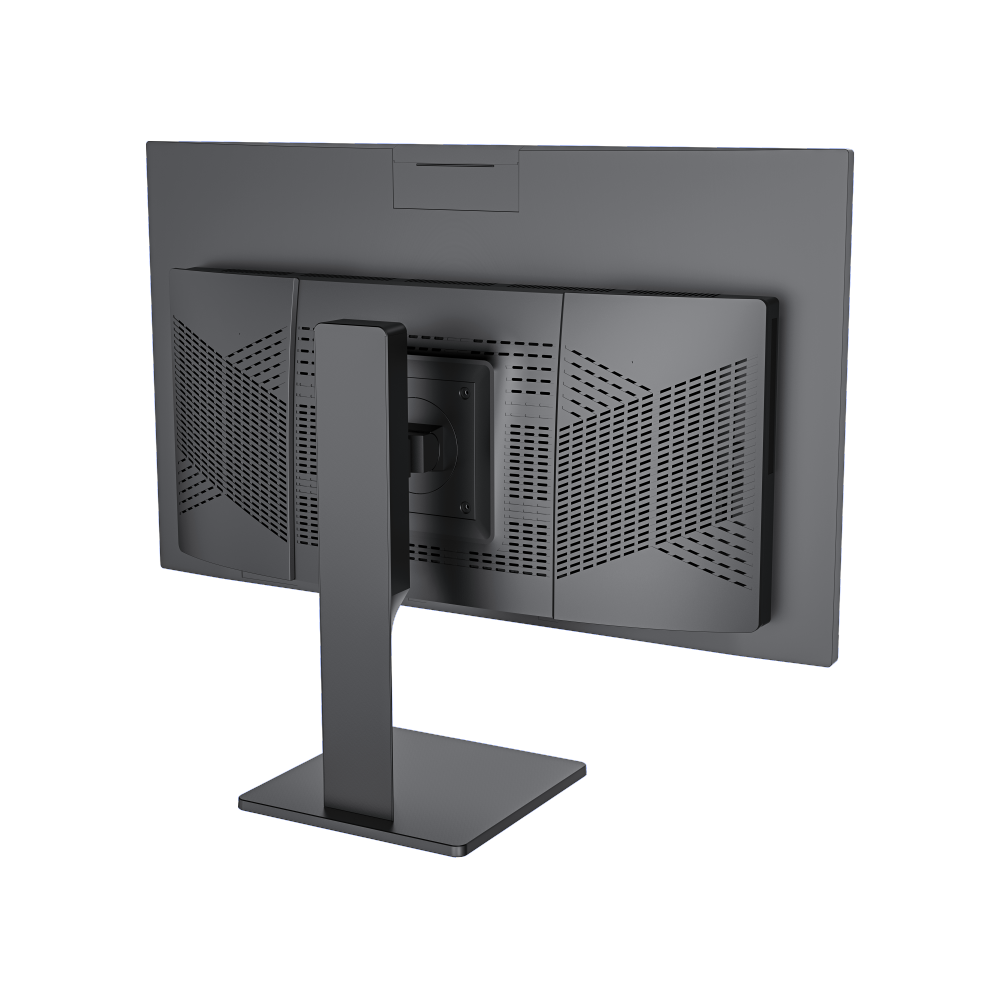

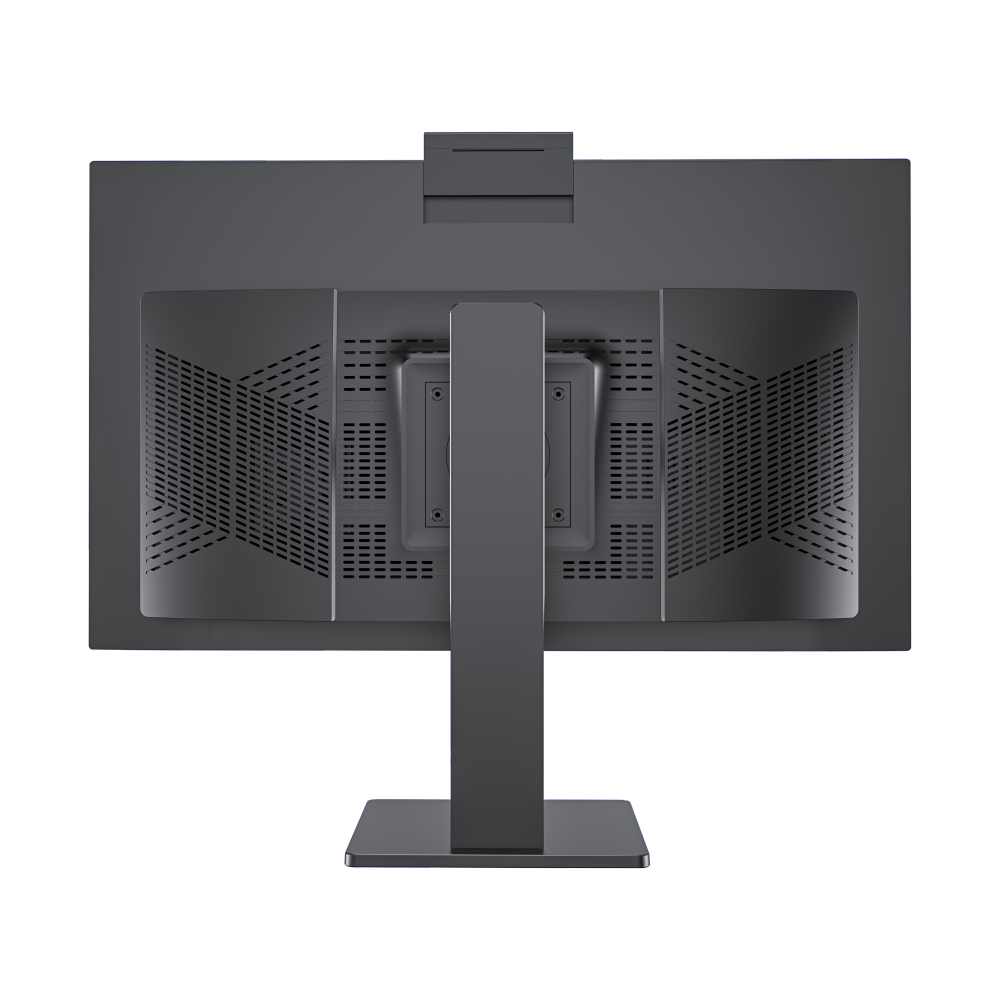

| VESA Type | 100*100mm | |
| Rotate | Clockwise 45 ° , Counterclockwise -45° ， Rotate 90° vertically。 | |
| AlO Color | Black as Default | |
| Accessory | AC power cord | Yes |
| CPU Cooler | Option | |
| Accessories box package | Yes | |
| Cabels | EU Power cord, HDMI Cable x 1 (When Q180, Additional DP Cable x1) | |
| User's Manual | Yes | |
