Desktop Case
15 Lite design
TFX PSU support
mATX Motherboard form

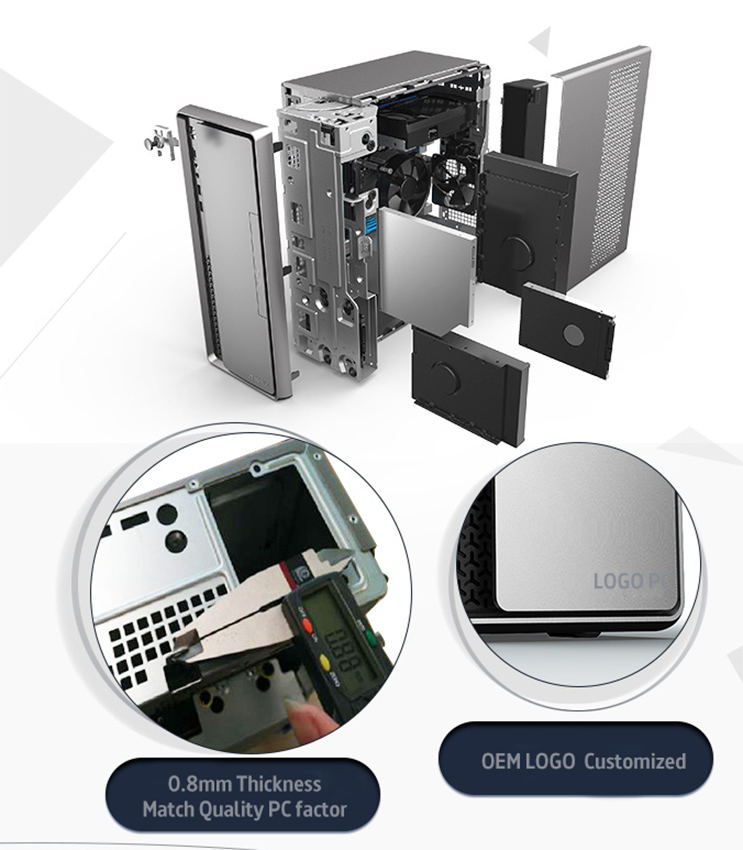

Tooless design

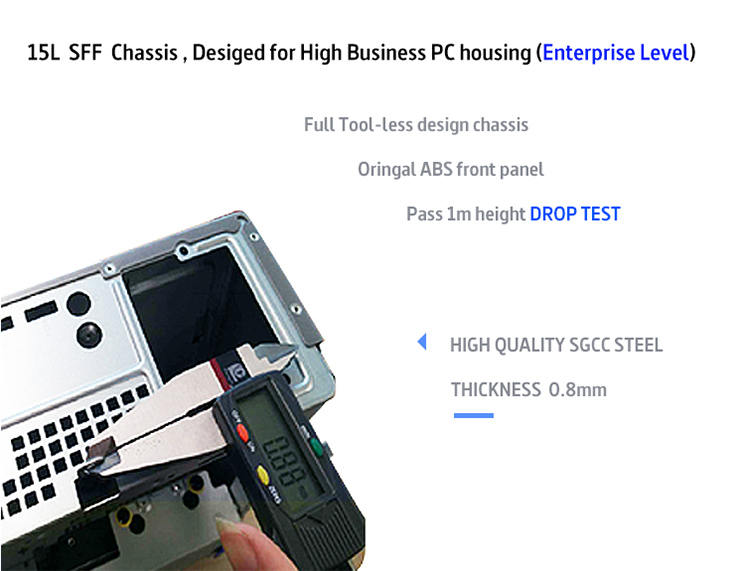

0.8mm Steel
EMC CE approved


: no more
: S703


Model    No.:MicroATX Desktop 15L
Chassis:0.8mm, SGCC, TOP/SIDE Half Paint by CE/ EMI Approved)
Type:Desktop Tower Case

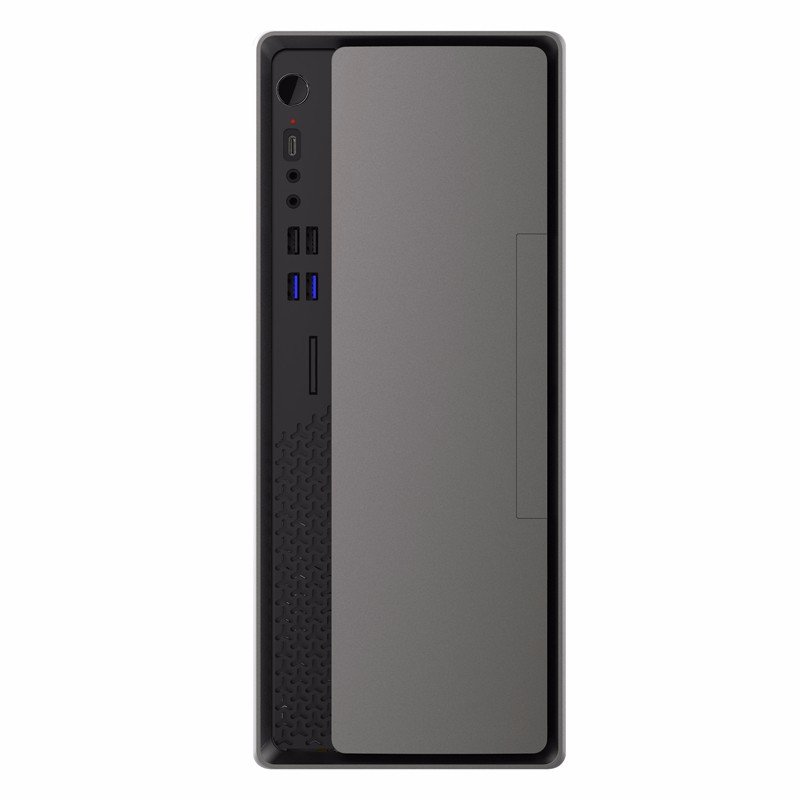

Front Panel:ABS material (Quick disassemble design)

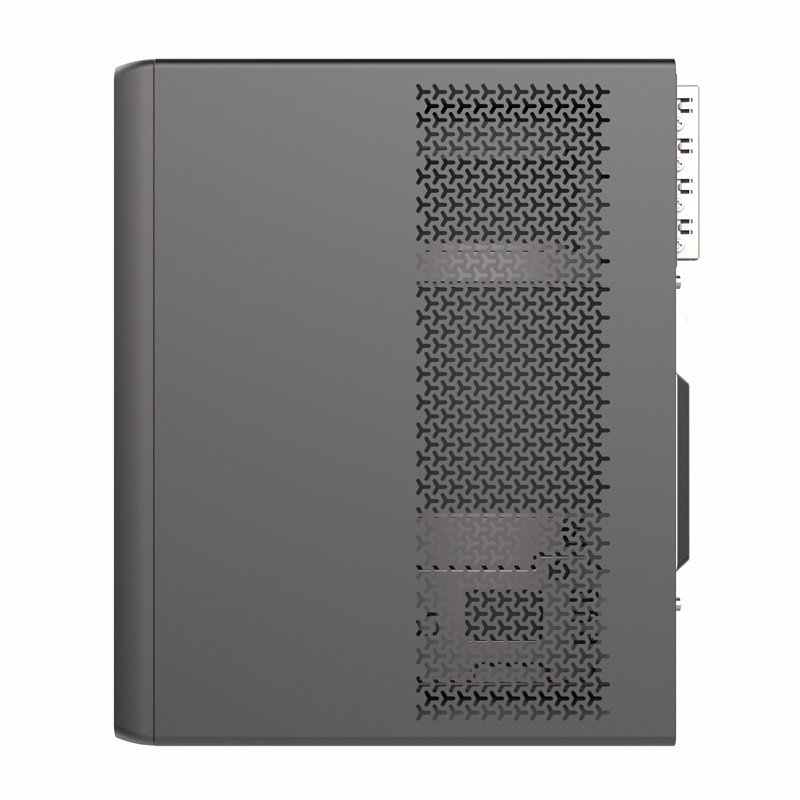

Side   Panel:U type, with TAC 2.0 cooling air flow channel
Front USB Ports:2x USB2.0  flat cable (included)
2x USB3.0  (included)
HD_AUDIO connector (Inlcuded)
Type C (optional)
Card Reader  (optional)
PSU  Type :TFX PSU  type
Motherboard Type :MATX M/B (Max 244*220mm)/Mini ITX M/B
Security/COM port(RS232/LPT)Padlock Loop / Kensington Slot/DB9/DB25
Reserved Fan Ports: Rear:  1x80mm  (optional)
Slim ODD  cableOptional ,SATA7+6P
Intrusion switch+Plastic holderTBD(optional)
Internal speak+AmplifyOptional

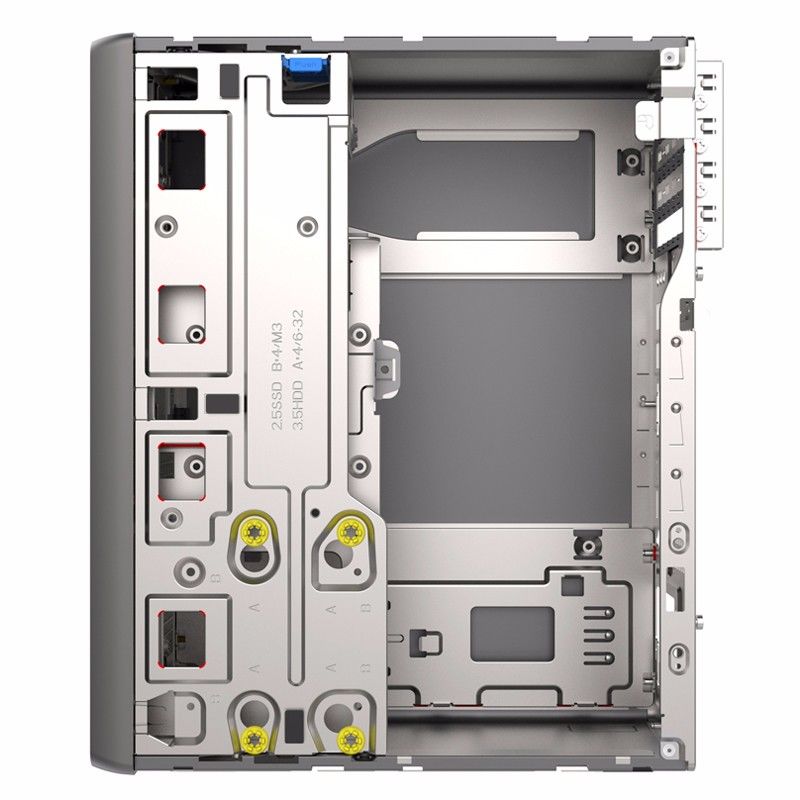

Drive Bays 5.25'' exposed1 (Slim ODD)
Drive Bay   3.5''   exposed0
Drive Bay   3.5''   hidden1
Drive Bay   2.5''   SSD1
 1*3.5HDD+1*2.5SSD or 2*3.5HDD or 2*2.5SSD

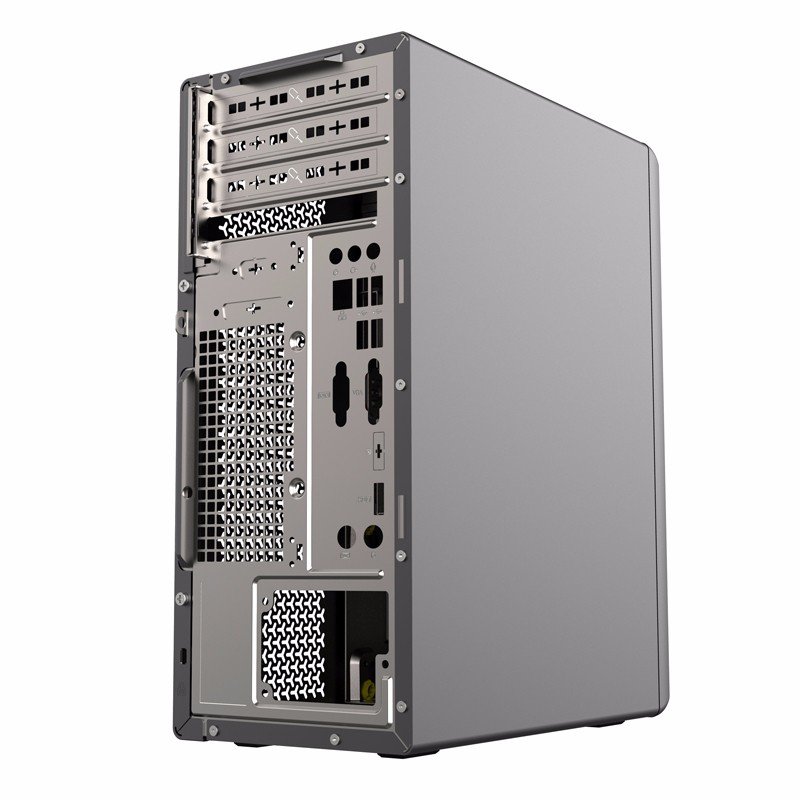

PCI Expansion Slots:4
Graphic card size:up to 250 mm
Maximum CPU cooler height:up to 120 mm

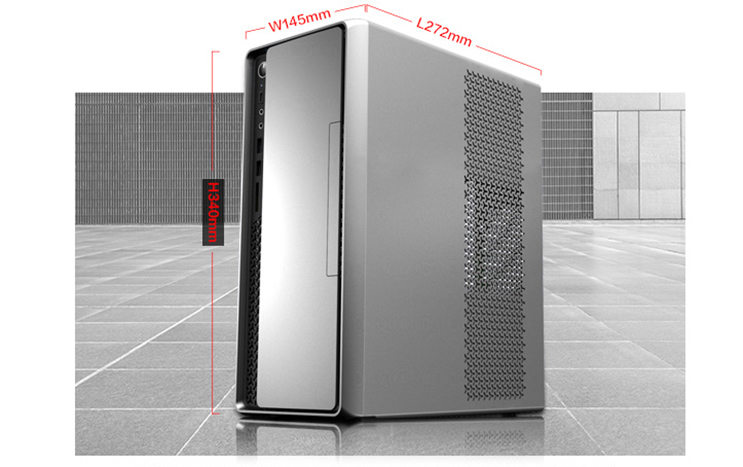

Chassis Size:257*145*343mm
Case   Size:290*145*343mm
Carton   Size:452*257*397mm
Packing:EPE+Brown box
QTY in 20GP cntr(appr.):600 pcs
QTY in 40HQ cntr(appr.):1460 pcs
Net weight (Kg)3.5KG
Gross weight (Kg)4.4KG
