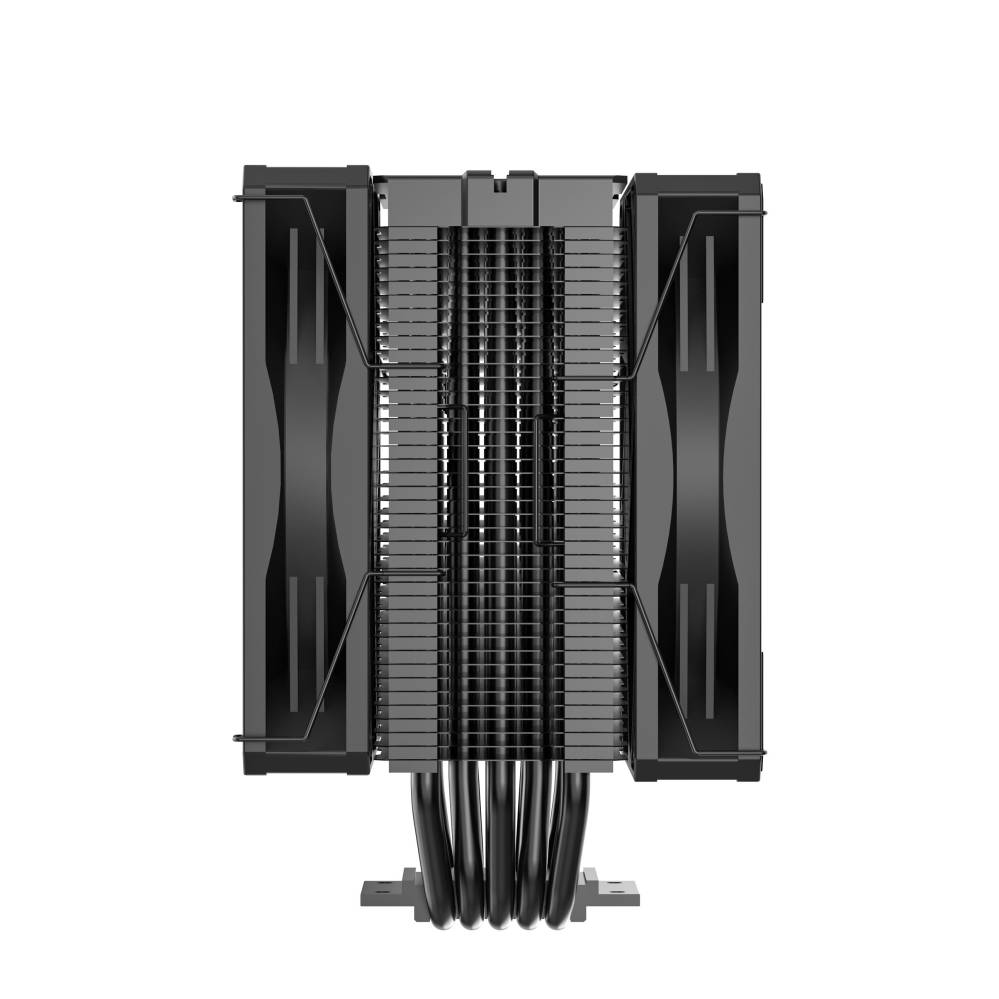

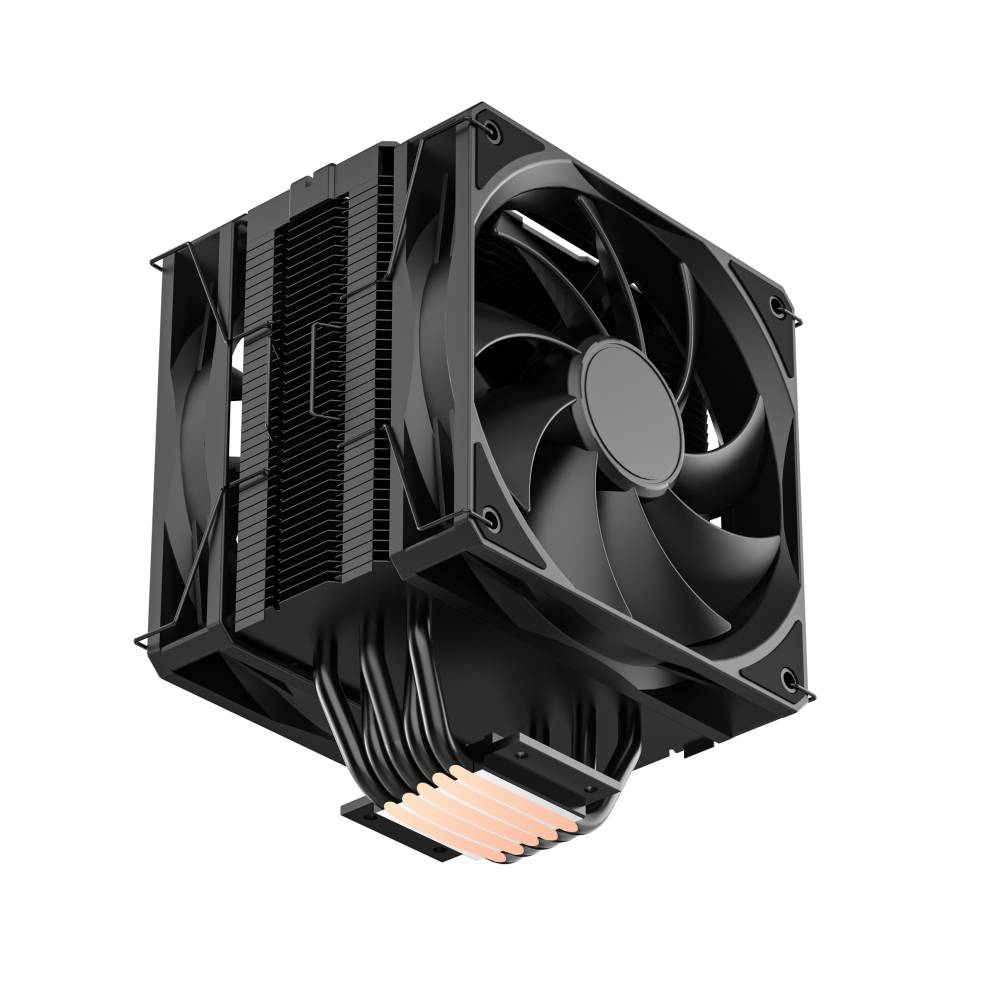

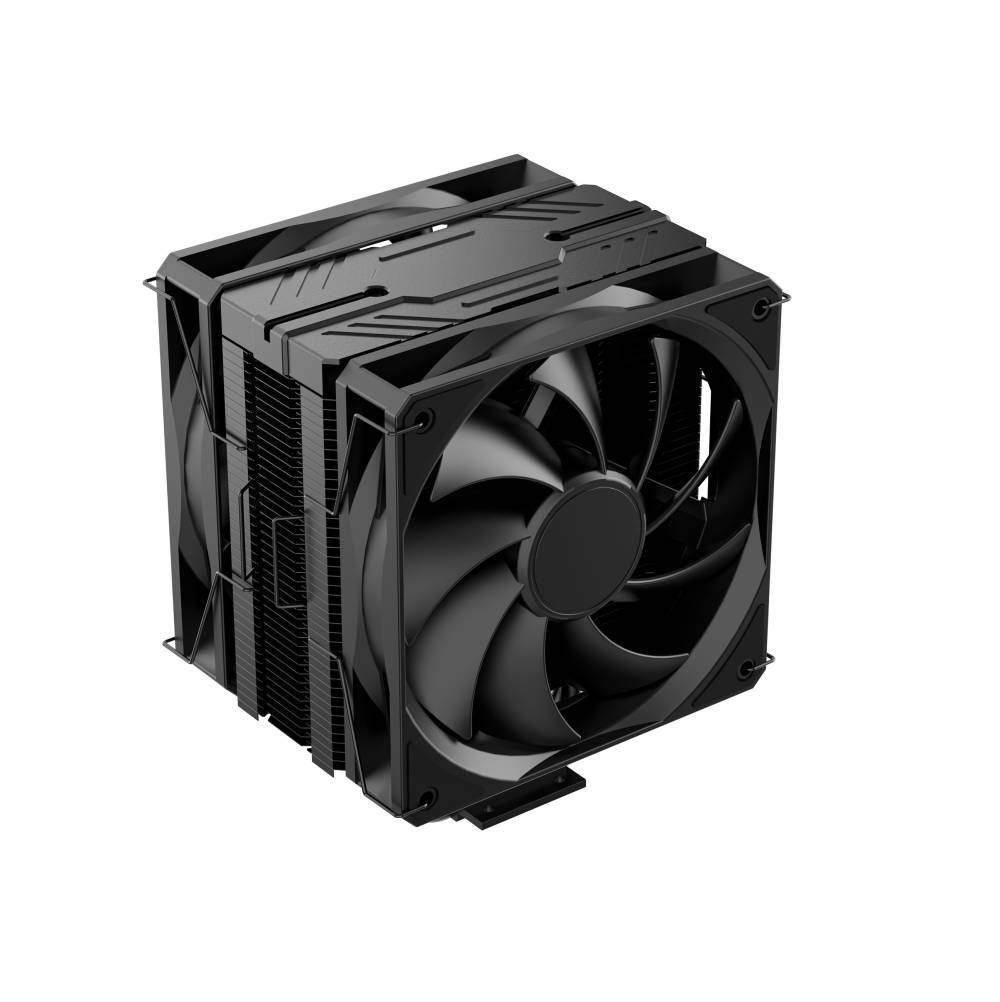

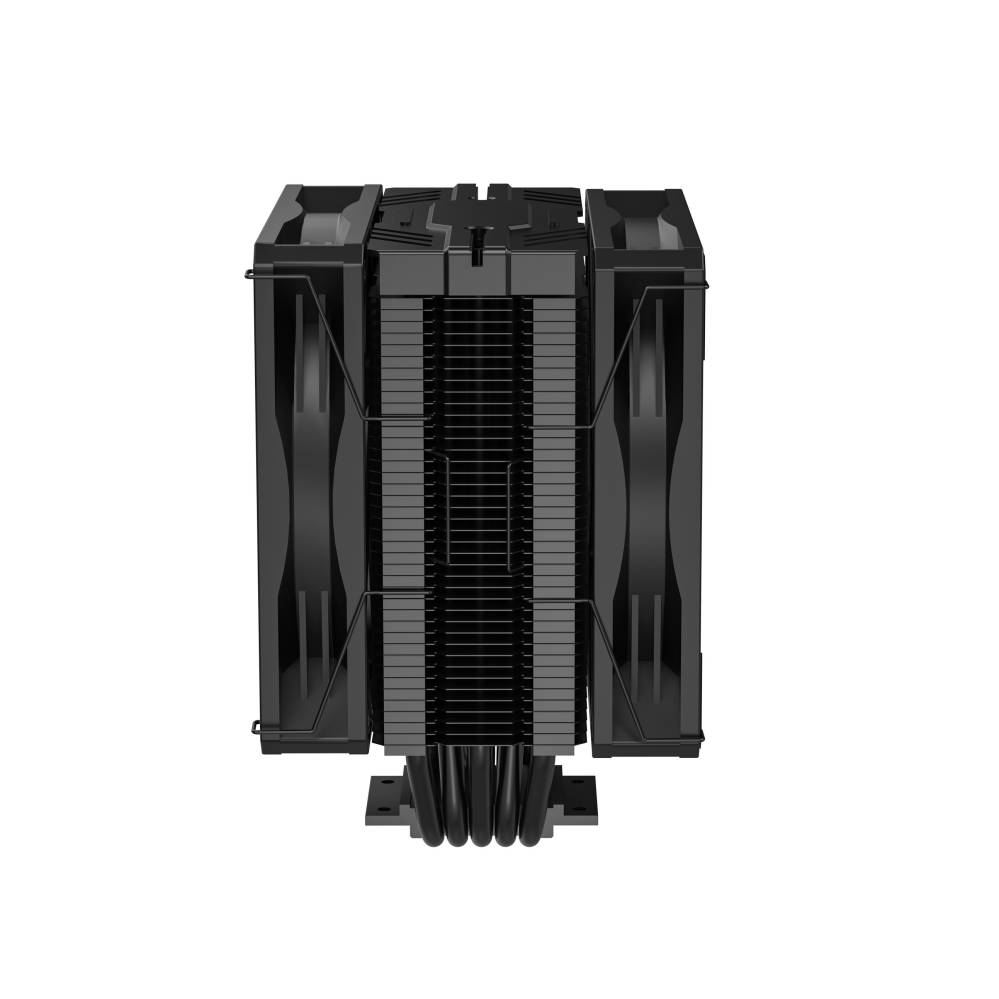

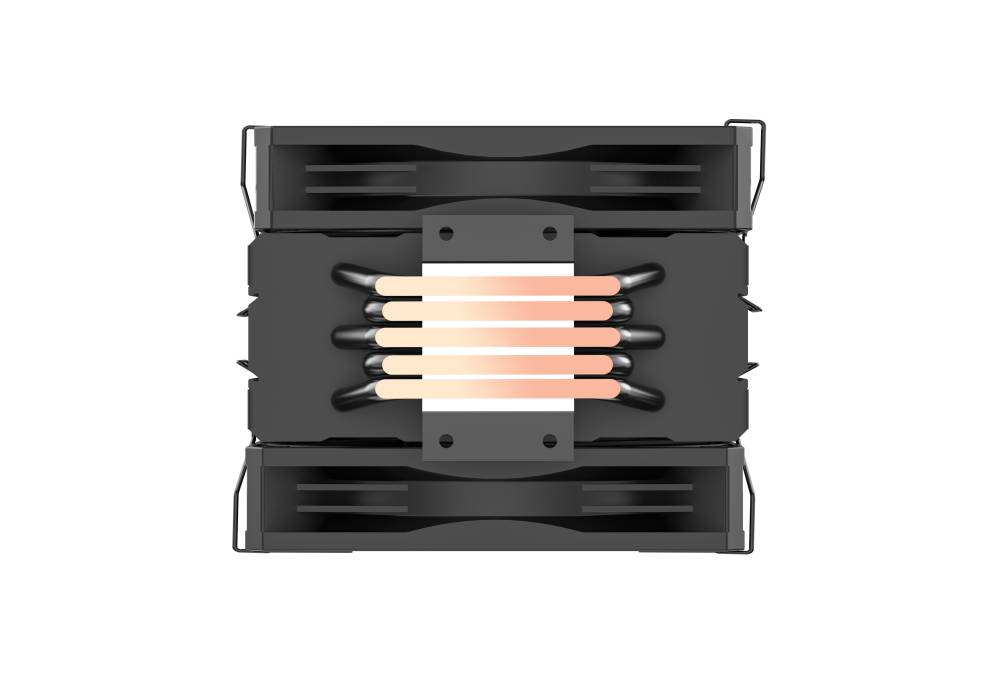

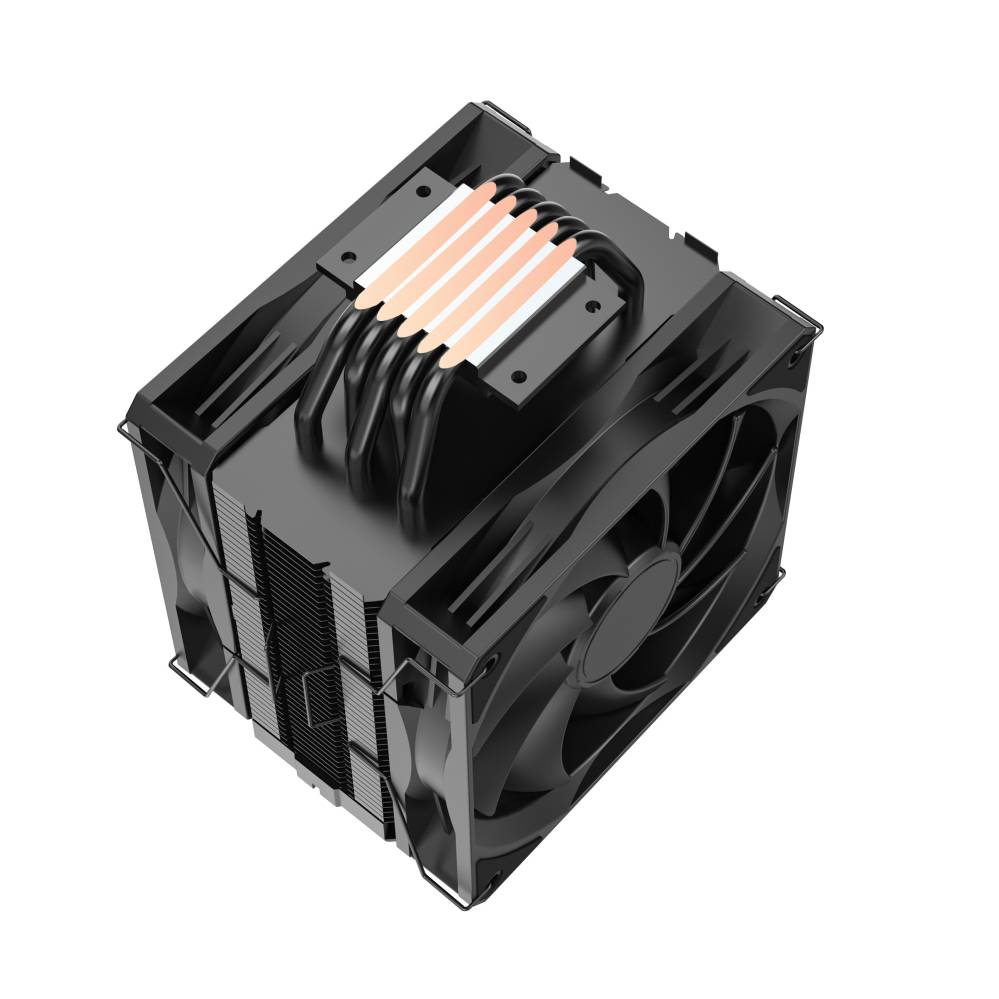

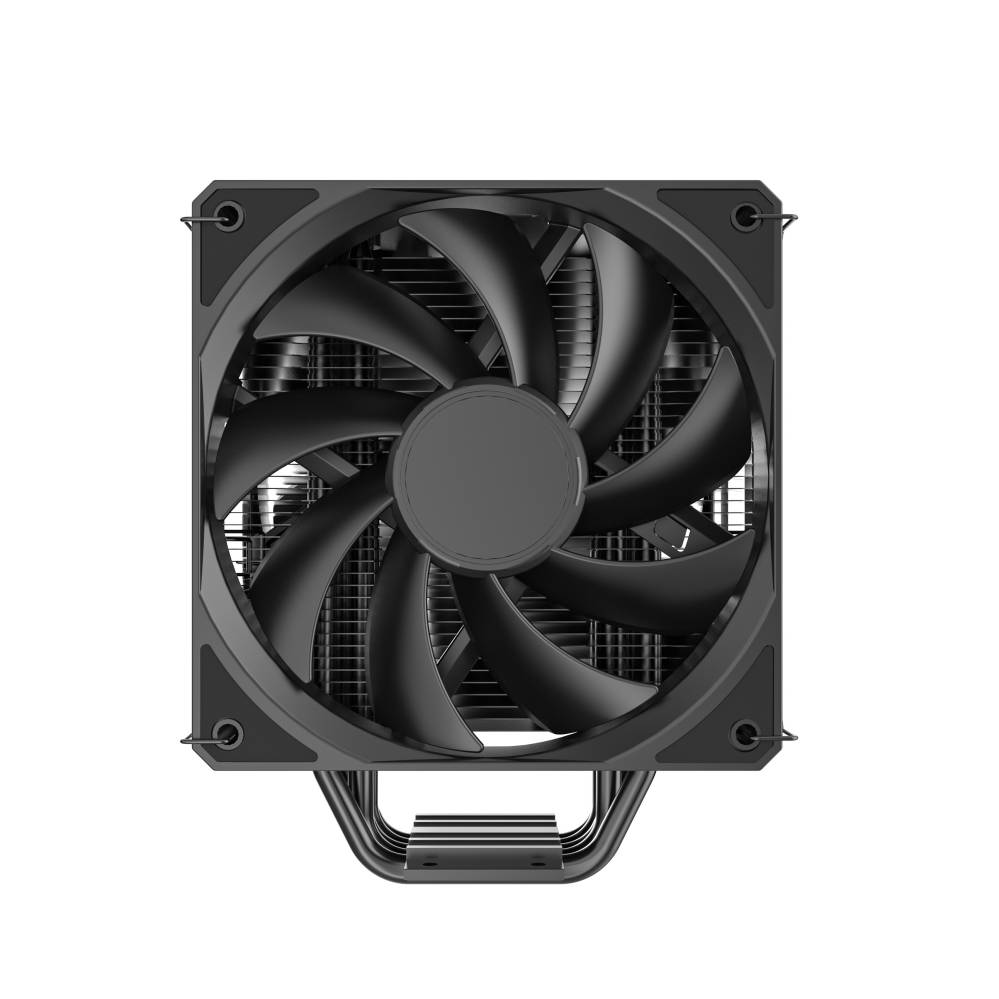

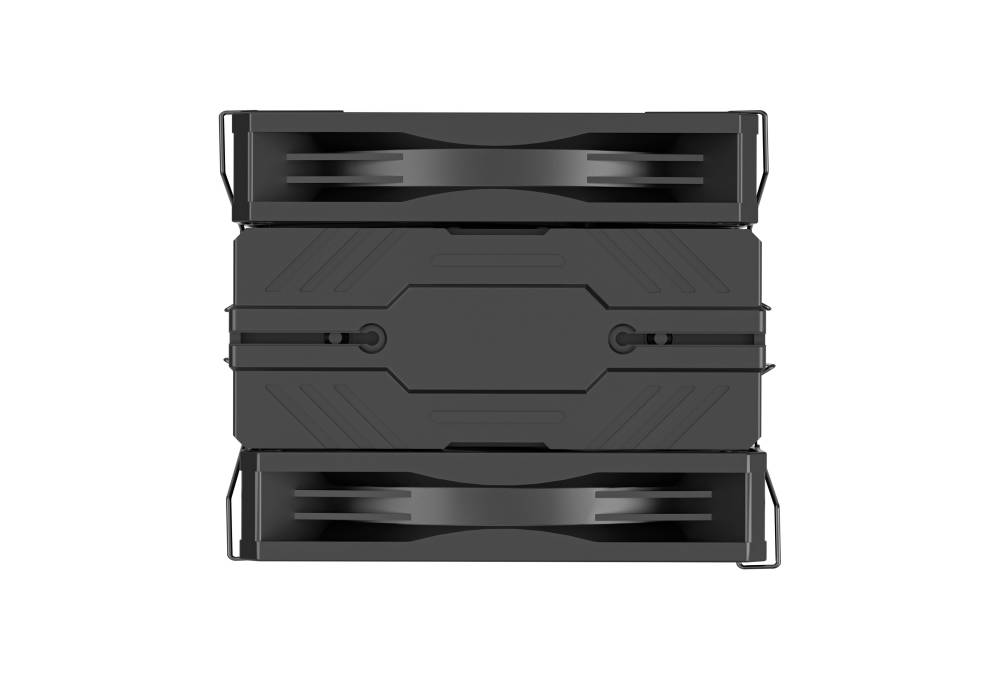

CPU Air Cooler
TG510
225W TDP CPU Air Cooler, 5pcs 6mm Direct Contact Heat Pipes, 120mm PWM Silent Fan, Intel LGA1700 LGA1851 AMD AM5 AM4 CPU Cooler
• 225W High TDP Cooling** – 5×6mm direct-contact heat pipes + 42 aluminum fins for efficient heat dissipation.
• Full Socket Compatibility** – Supports Intel LGA1700/1851/1200/115x & AMD AM5/AM4 platforms.
• Smart PWM Silent Fan** – 800–1800RPM adjustable, 74CFM max airflow, only 31.5dB low noise.
• Long Lasting Durability** – Hydraulic bearing with **30000H** lifespan for stable long-term operation.
• Low Power & Lightweight** – 12V/2.4W low power design, 665g lightweight body for easy installation.
Details Specifications
: TS420
: no more
Return list
Overall Dimension120(L)×101(W)×151(H)mm
Weight≈ 665g±10g
TDP225W
Heat Pipes6mm heatpipe x 5units
Fins42 aluminum sheet
Heat Base MaterialDirect contact of heat pipe
Surface TreatmentBlack
Top cover typePlastic cover plate
Fan Dimension120(L)×120W)×25(H)mm
Fan Frame Colourblack
Fan Blades / Colour9 leaves/black
LED Qty / Type:/
Rated Current0.21±0.03A
Rated Voltage12V DC
Power Consumption2.4W
Fan Speed800-1800  RPM ±10%
Bearing TypeHydraulic bearings
FAN Life30000h
Static Pressuree2.12mmH2O（MAX）
Air Flow74CFM(MAX)
ACOUSTICAL NOISE31.5dB(A)
Connector4Pin PWM
CPU CompatibilityIntel LGA1700/1851/1200/1151/1150/1155
AMD AM5/AM4
Accessories in the box/
MOQ1000
Package Contentscolor box
Package Dimensions590(L)×395(W)×330(H)mm
QTY30PCS
Net Weight17.1KG
Gross Weight18KG
