SOHOO 6580 High-Capacity Small Form Factor Mini Tower PC Case, 6 HDD SSD Bays, Top-Mounted ATX PSU,

65-Micro-ATX

6580

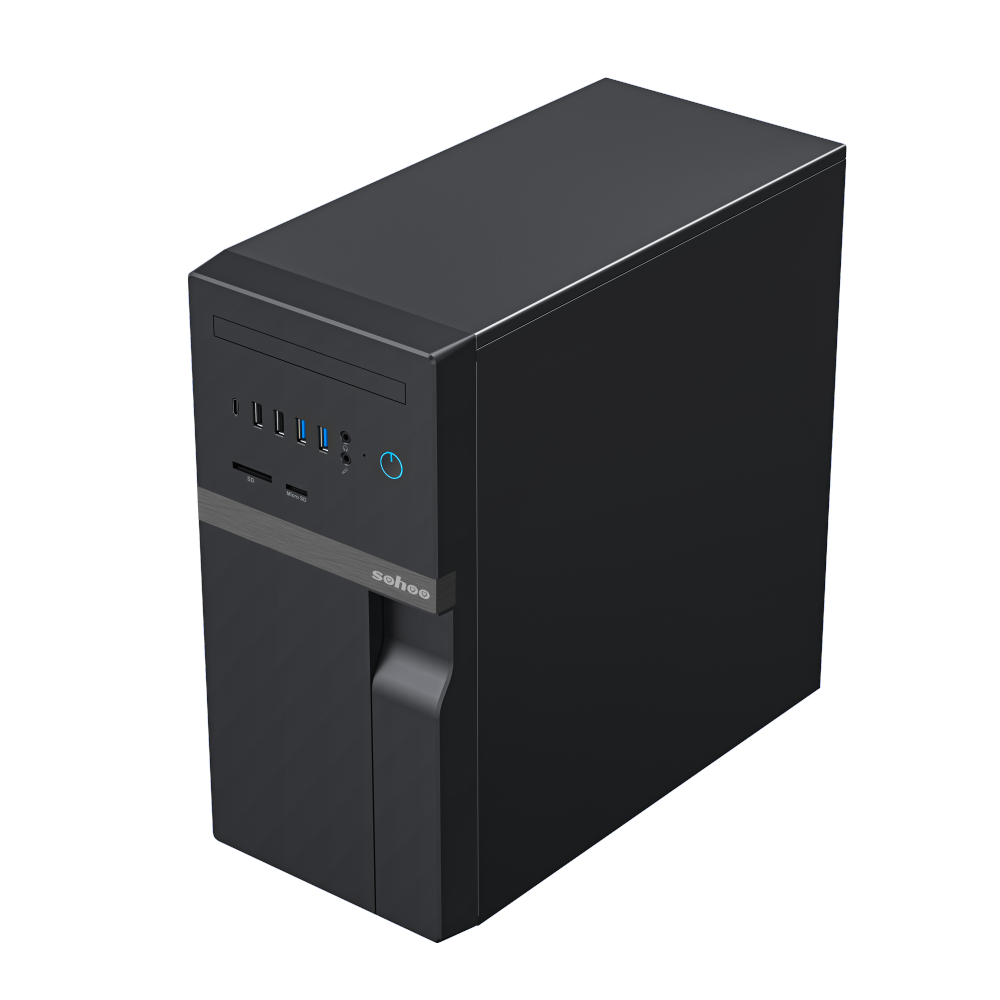

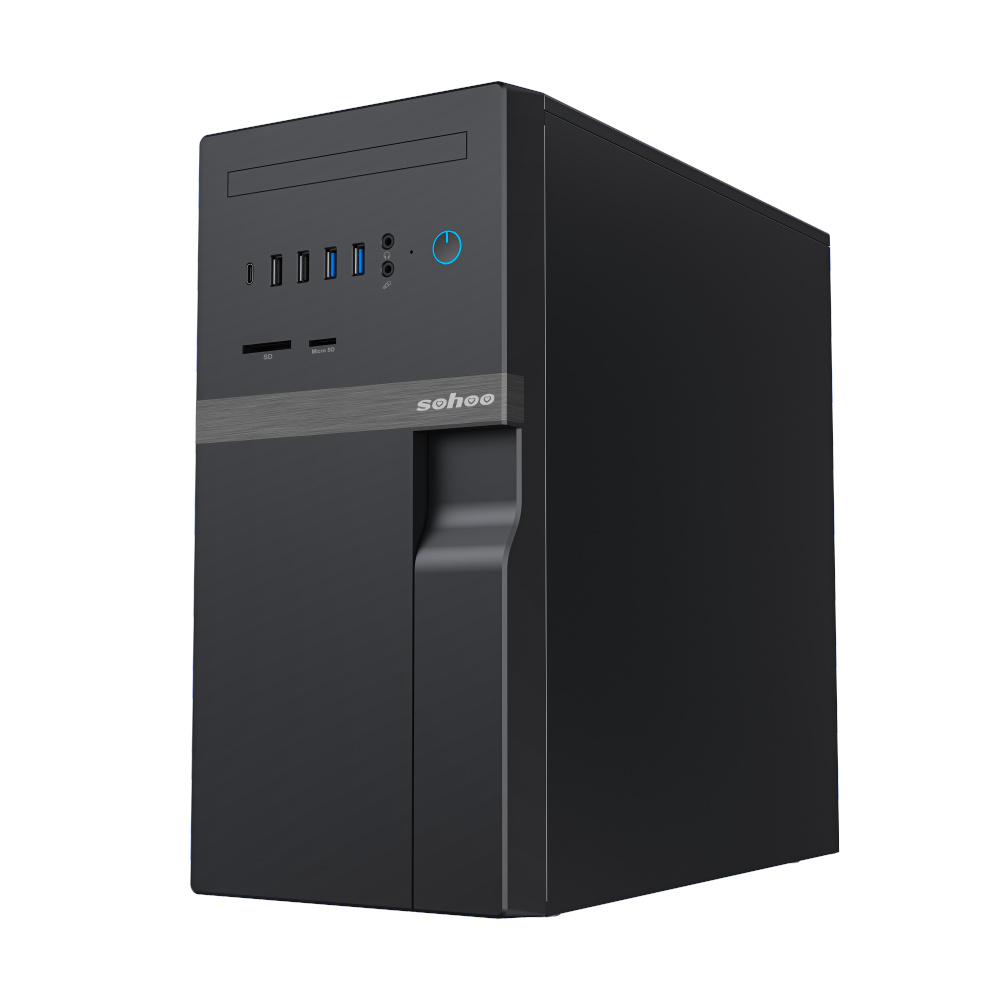

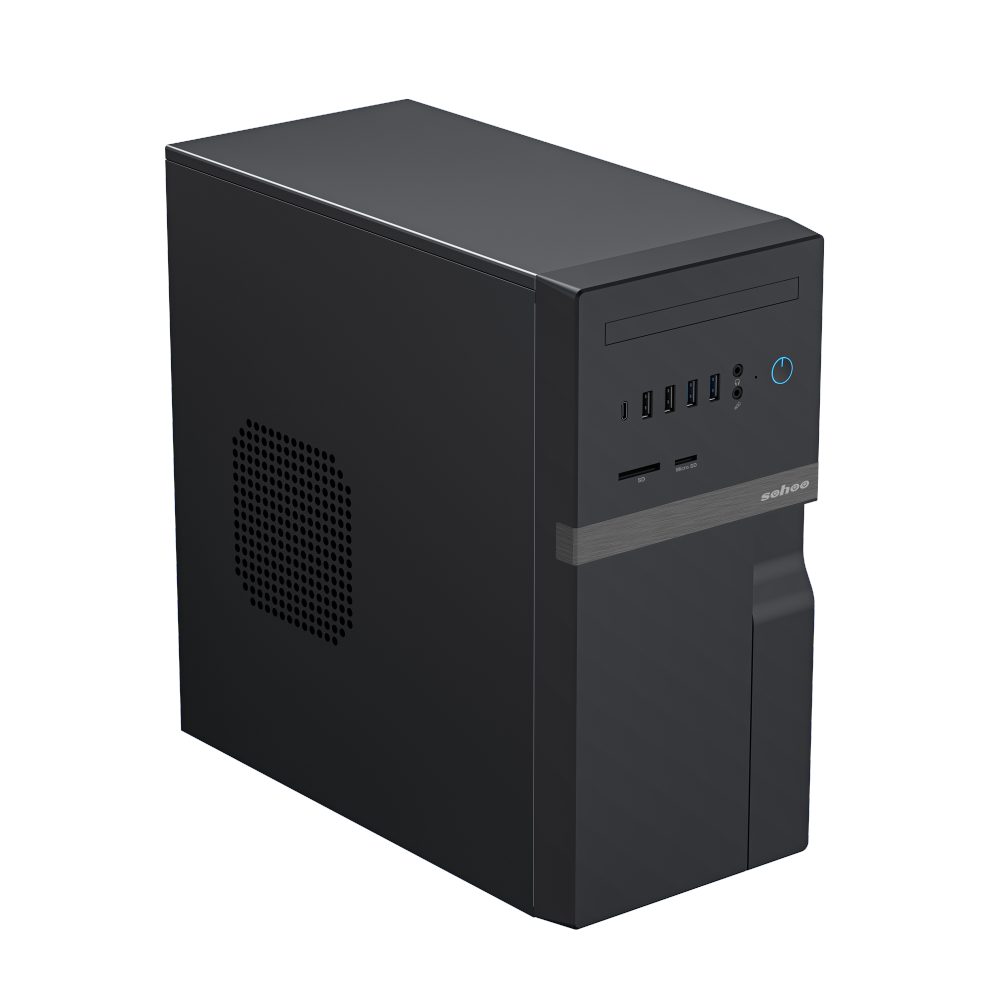

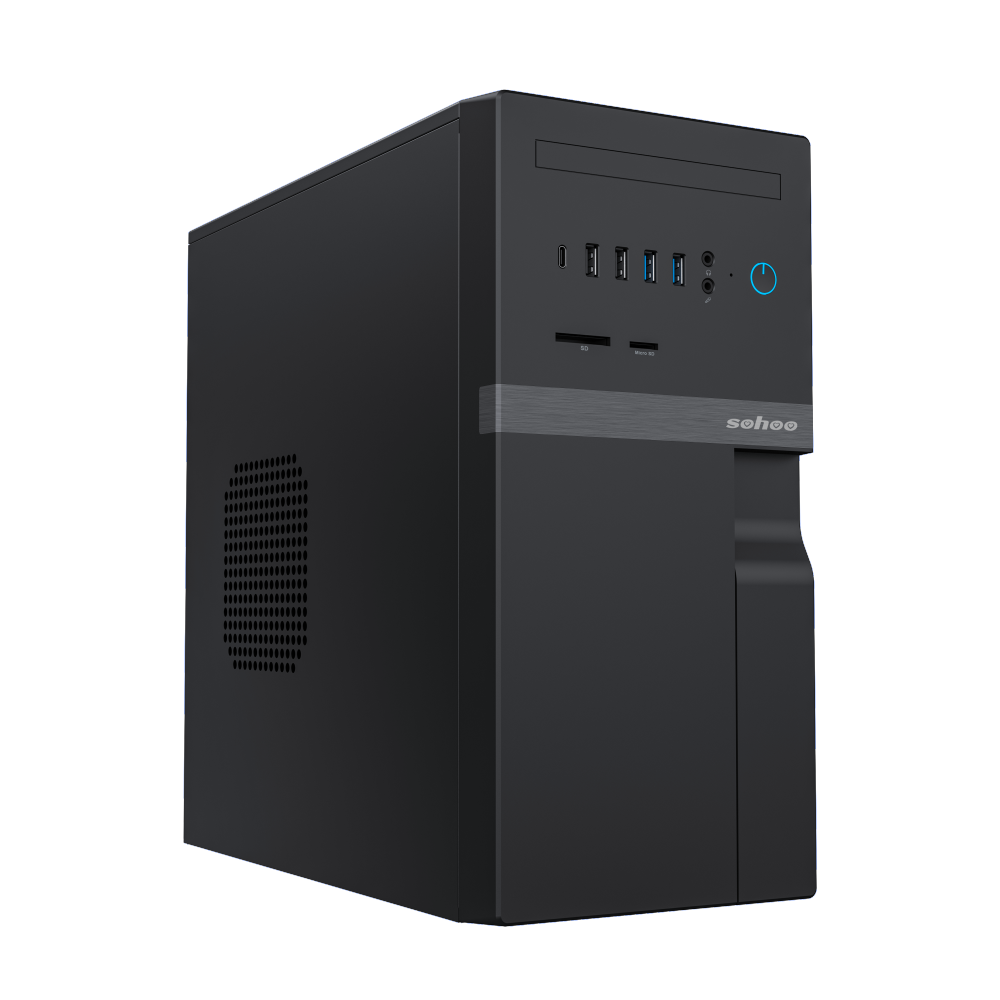

SOHOO 6580 High-Capacity Small Form Factor Mini Tower PC Case, 6 HDD SSD Bays, Top-Mounted ATX PSU, Micro-ATX Compatible, USB Type-C
Rugged Platform: 0.4mm SPCC/SGCC steel, top-mounted ATX (PS2) PSU, ABS front and metal side panels, Micro-ATX (max 244×244mm)/Mini-ITX support, 355×170×350mm body with front panel.
High-Capacity Bays: 1 tool-free 9mm slim ODD, plus internal 3×3.5-inch HDD and 3×2.5-inch SSD.

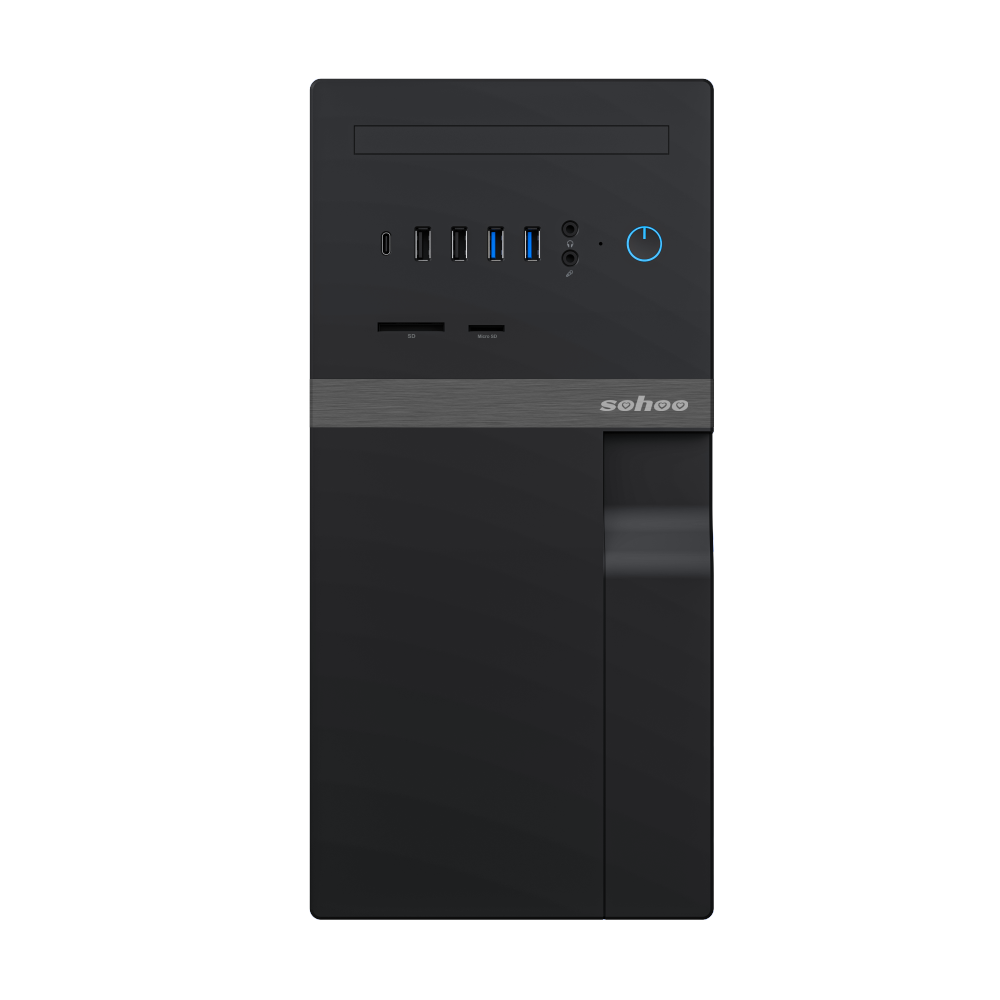

Front I/O: 1 power button, 2 USB 2.0, optional 2 USB 3.2 Gen1 Type-A, 1 USB 3.2 Gen1 Type-C, 2 card readers (SD+Micro SD), and HD audio (SPK+MIC).
Cooling and Expansion: 4 PCI expansion slots, front 2×120mm and rear 1×80/92mm fan mounts (fans optional); GPUs up to 295mm, CPU coolers up to 140mm, PSU up to 140mm.
Security and OEM: Kensington lock and padlock loop, with optional intrusion switch, internal speaker and internal antenna; OEM ready.

Prev: 6501F

Next: no more

Return list

Model		6580
Form Factor		Mini Tower
Color		Black
Chassis Material		SPCC,SGCC 0.4mm
Chassis Material		SPCC,SGCC 0.4mm
M/B Form Factor		Micro-ATX (Max 244*244mm)、Mini-ITX
PSU Form Factor		ATX PS2 Size(Top Mounted)
Front Panel Material		ABS

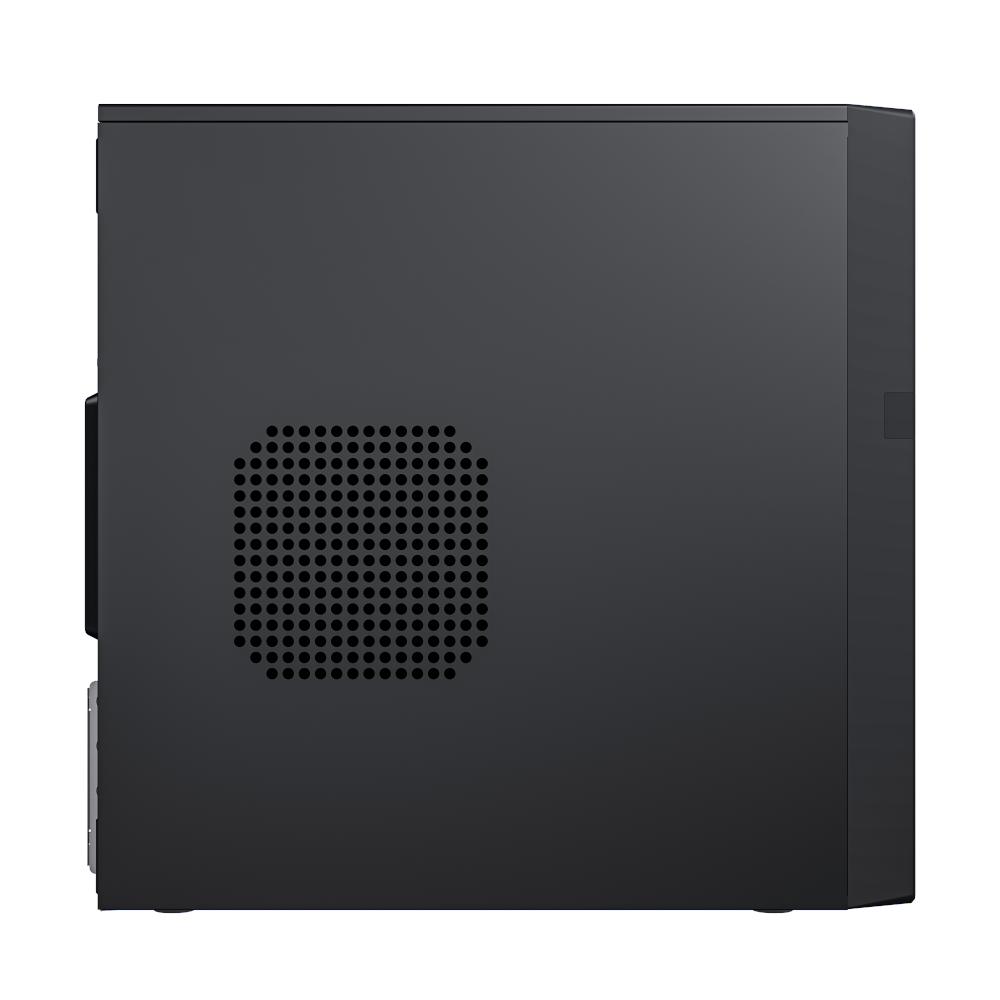

Side Panel	Left	Metal Cover
Side Panel	Right	Metal Cover
External Drive Bay(s)	Slim ODD(9mm)	*1（Tool-Free）
External Drive Bay(s)	3.5"	N/A

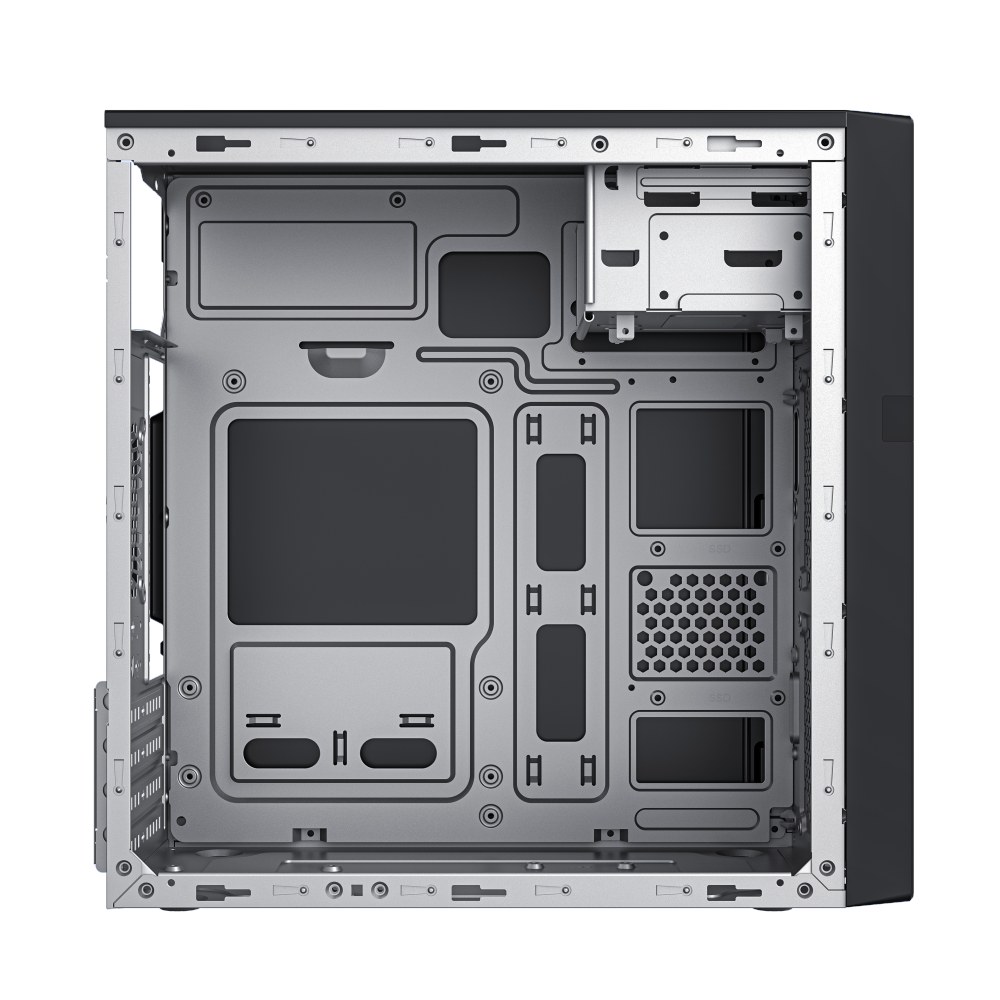

Internal Drive Bay(s)	3.5" HDD	*3
Internal Drive Bay(s)	2.5" SSD	*3
Front I/O Ports	Buttons	*1(Power)
	USB2.0 Type-A Port(s)	*2
	USB3.2 Gen1 Type-A Port(s)	*2(Optional)
	USB3.2 Gen1 Type-C Port(s)	*1(Optional)
	Card Reader Port(s)	*2(SD+Micro SD) (Optional)
	HD Audio Support	*1(SPK+MIC)
Security		kensington Slot,Padlock Loop
Optional		Chassis Intrusion Switch,Internal Speaker
Optional		Internal Antenna

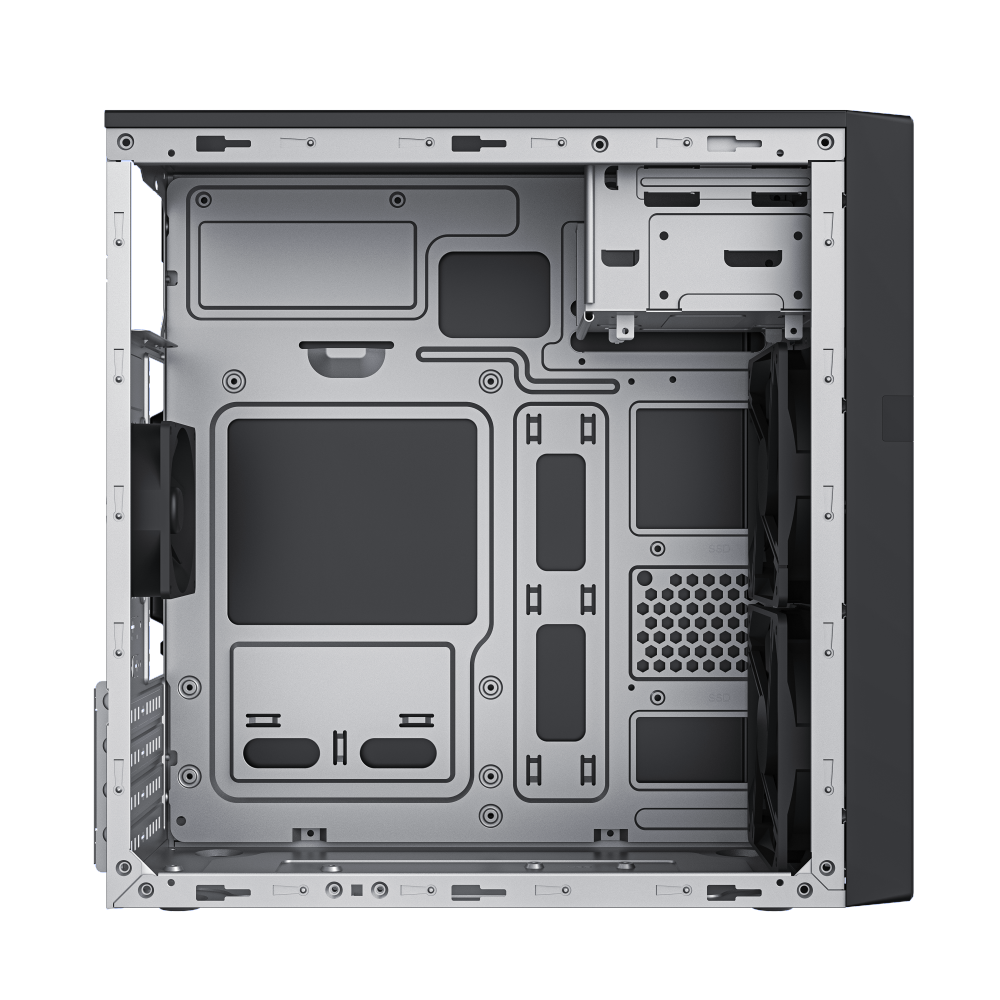

Cooling Fan Support	Front	2x120mm(Fan Optional)
	Top	N/A

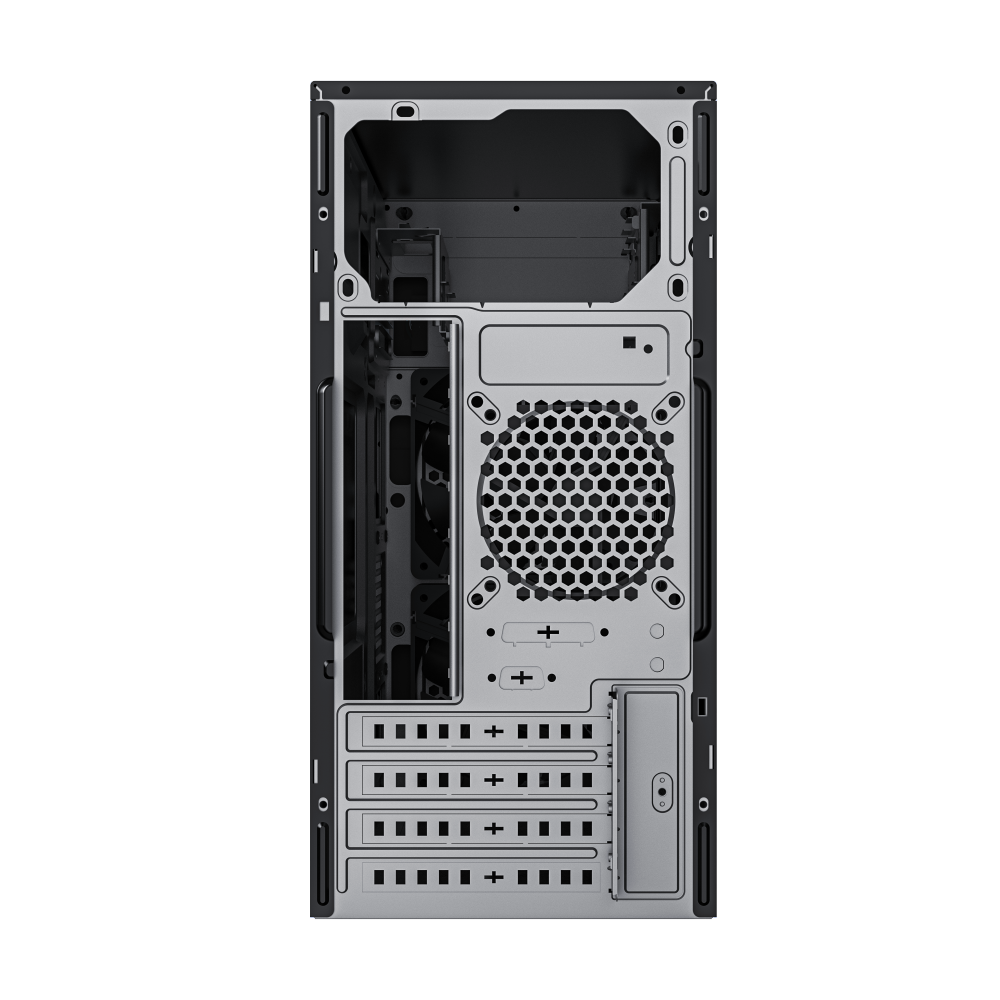

	Rear	1x80/92(Fan Optional)
	Left	N/A
Dust Cover		N/A

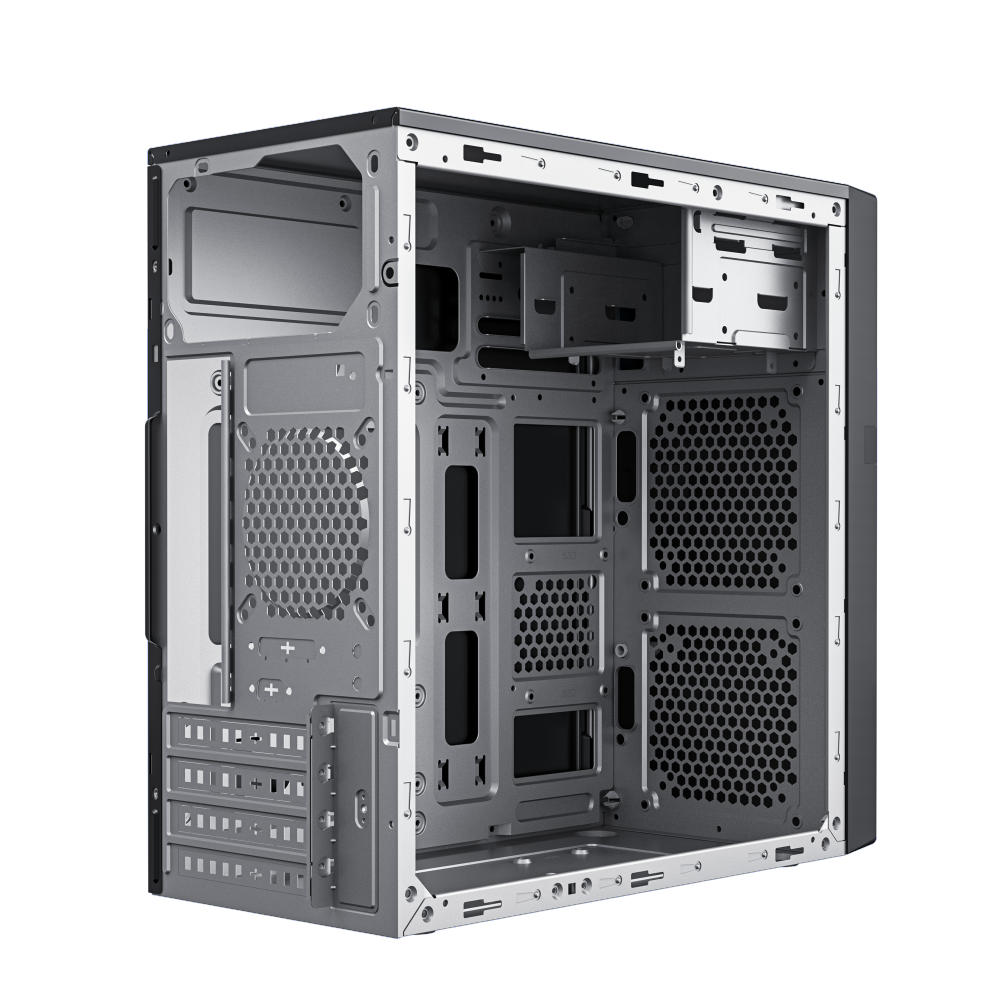

PCI Expansion Slots		*4
Carton & Logo		By OEM
Dimensions	Chassis Without Front Panel	(L)325(W)170(H)350mm
	Chassis With Front Panel	(L)355(W)170(H)350mm
	Chassis With Front Panel	(L)368(W)170(H)353.5mm (With Footpad,Clip)
	Packing	(L)402(W)209(H)400mm
	Net Weight (Kg)	kgs
	Gross Weight (Kg)	kgs
VGA Card Length		Up to 295mm
CPU Cooler Height		Up to 140mm
PSU Length		UP to 140mm
