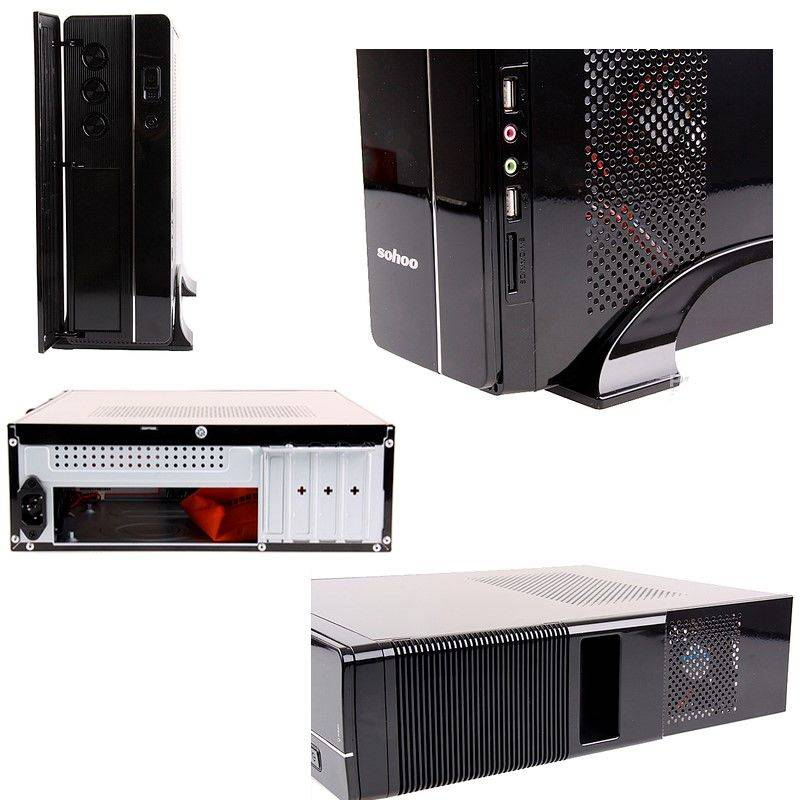

这款迅扬 小蜜蜂S601机箱是专门为组建HTPC的用户而设计，外观时尚，造型小巧。
| 机箱类型 | 台式机类 |
| 机箱结构 | Micro ATX/Mini-ITX |
| 适用主板 | Micro ATX板型/Mini-ITX板型 |
| 机箱样式 | 立式 |
| 5.25英寸仓位 | 1个 |
| 3.5*2.5“英寸仓位 | 2个(1x2.5") |
| PCI插槽 | 4个 |
| 机箱接口 | USB/音频 |
| 产品电源 | 无标配电源 |
| 电源型号 | 支持MICRO-ATX电源（支持） |
| 电源功率 | 200W |
| 机箱材质 | 塑钢 |
| 产品颜色 | 黑色 |
| 外型尺寸 | 391×99×306mm |
| 产品重量 | 3.5kg |
| 防辐射性 | 是 |
| 散热性能 | 垂直专利散热系统设计，打造独一无二冷酷体验 |
| 其它特点 | 扩展性强，可选三合一读卡器 |
| Form Factor | SFF | |
| Chassis Material | SPCC/SGCC 0.5mm | |
| PSU Form Factor | SFX | |
| M/B Form Factor | Micro-ATX.Mini ITX | |
| Front Panel | Plastic: ABS | |
| Top Panel | Plastic Handle | |
| Side Panel | Left | Metal Cover |
| Right | N/A | |
| External Drive Bay(s) | 5.25" (ODD) | *1 |
| 3.5" | N/A | |
| Internal Drive Bay(s) | 3.5" (HDD) | SSD*1+3.5HDD*2 or SSD*2+3.5HDD*1 |
| 2.5" (SSD) | ||
| I/O | Buttons | *2 |
| USB2.0 Port(s) | *2(Optional) | |
| USB3.0 Port(s) | *2 | |
| P-Lock | *1(Optional) | |
| Type C(2.0/3.0) | *1(Optional) | |
| HD Audio Support | *1(SPK+MIC) | |
| Card Reader (Support) | *1(Optional) | |
| Accessory | Speaker | *1(Optional) |
| PC Foot Stand | *1 | |
| VESA | N/A | |
| Security | kensington Slot,Padlock Loop | |
| Optional | Chassis Intrusion | |
| Cooling Fan Support | Front | N/A |
| Top | 80mm*1 | |
| Rear | N/A | |
| Left Side | N/A | |
| Bottom | 60mm*1(Optional) | |
| Dust Cover | *0 | |
| Slots | *4(Low Profile) | |
| Carton & Logo | By OEM | |
| Dimensions | Chassis | (L)365*(W)100*(H)295mm |
| Full Case (inc Fascia) | (L)401*(W)100*(H)306mm | |
| Carton | (L)442*(W)155*(H)349mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Size | Up to 210mm(Semi-High Card) | |
| CPU Cooler Height | Up to 80mm | |
