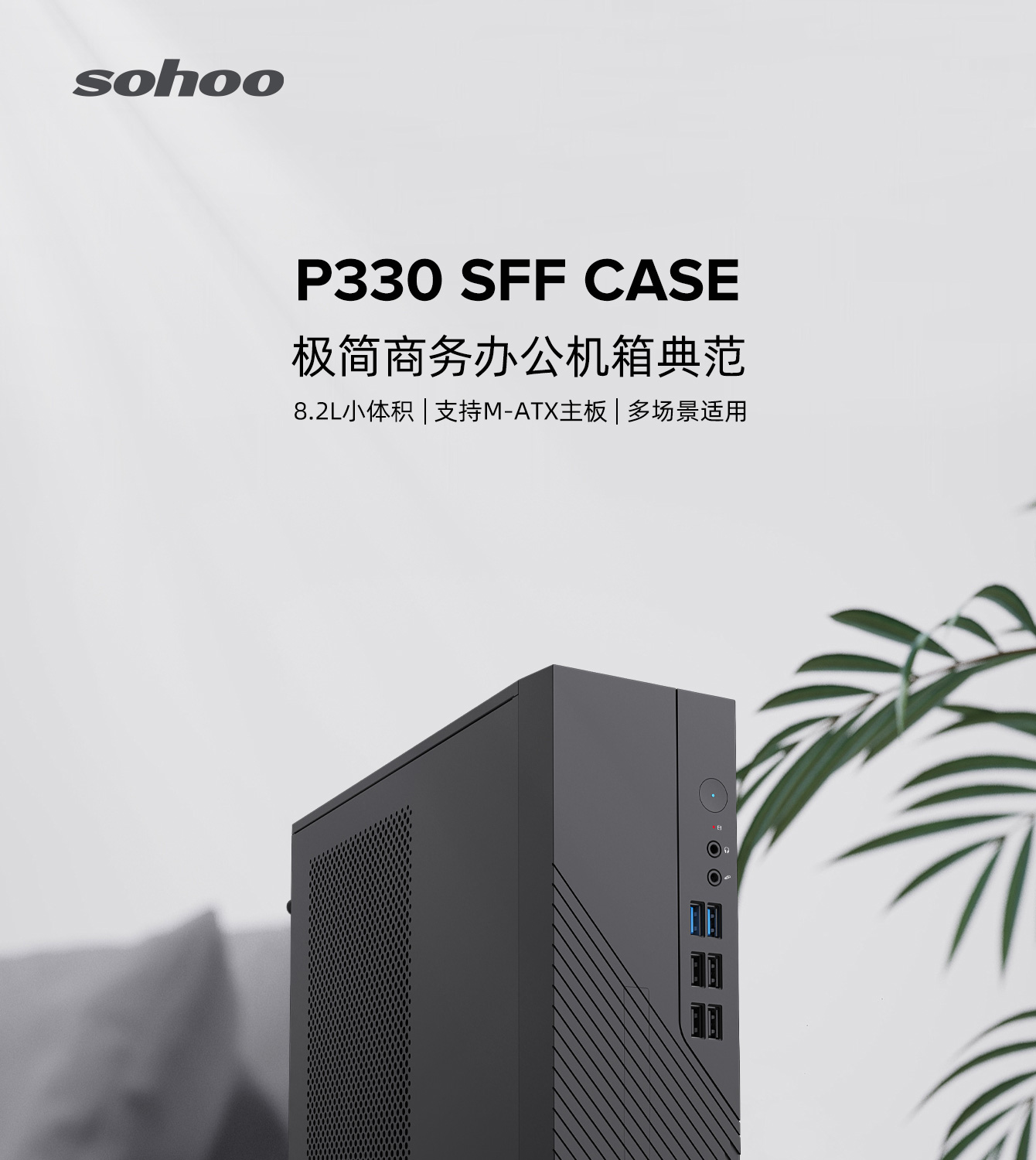

| Form Factor | SFF | |

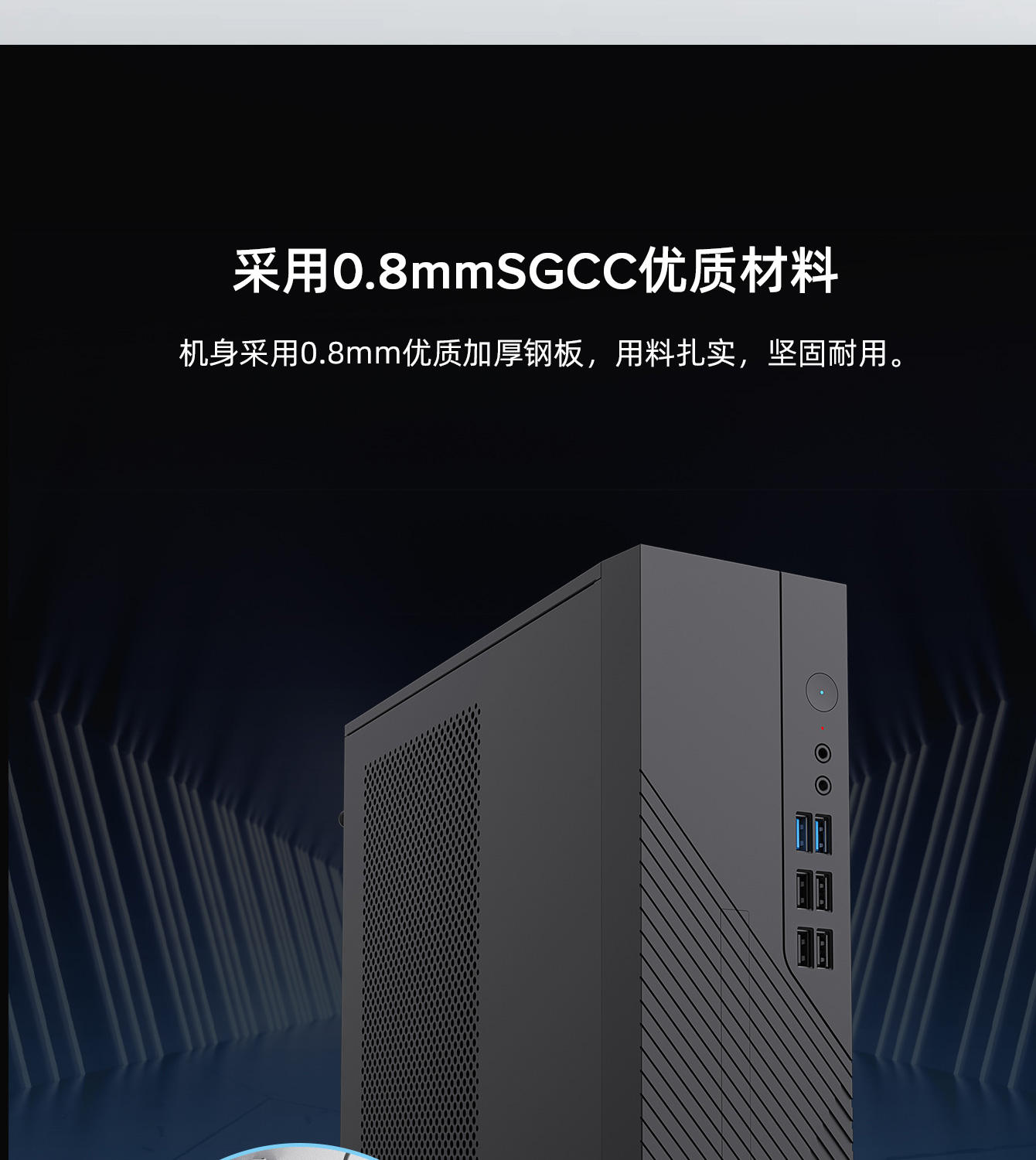

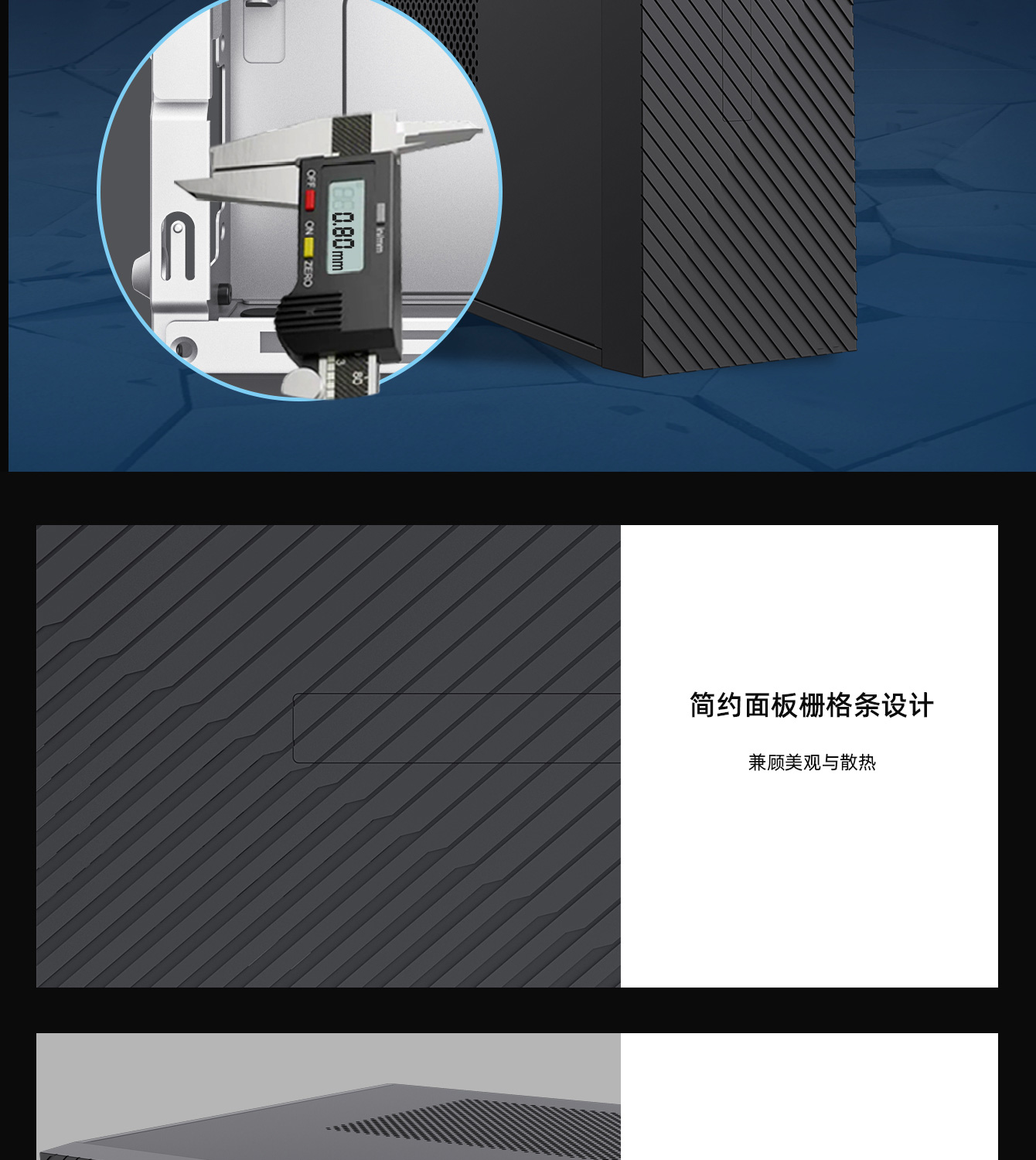

| Chassis Material | SGCC 0.7/0.8mm | |

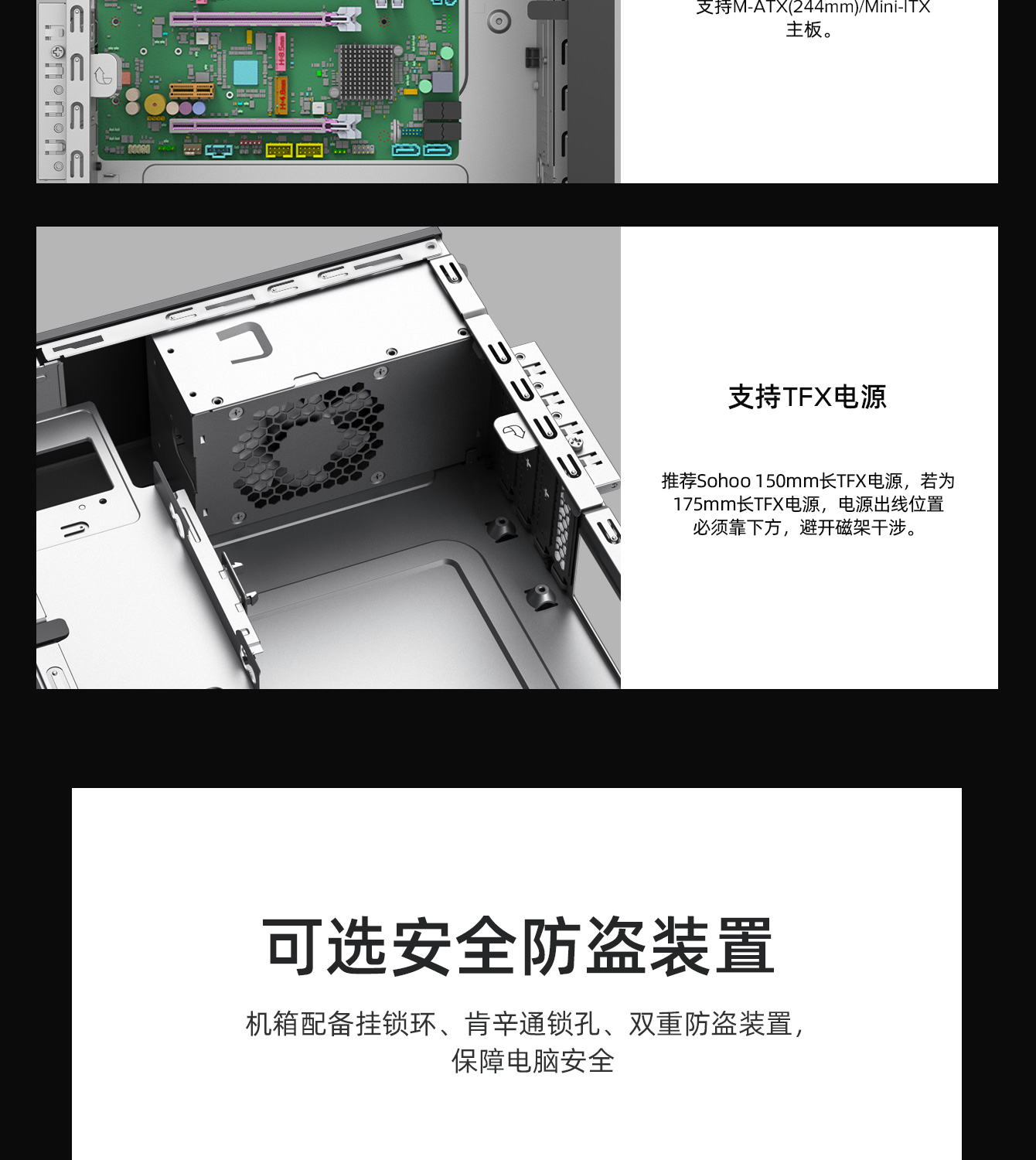

| PSU Form Factor | Bottom/TFX | |

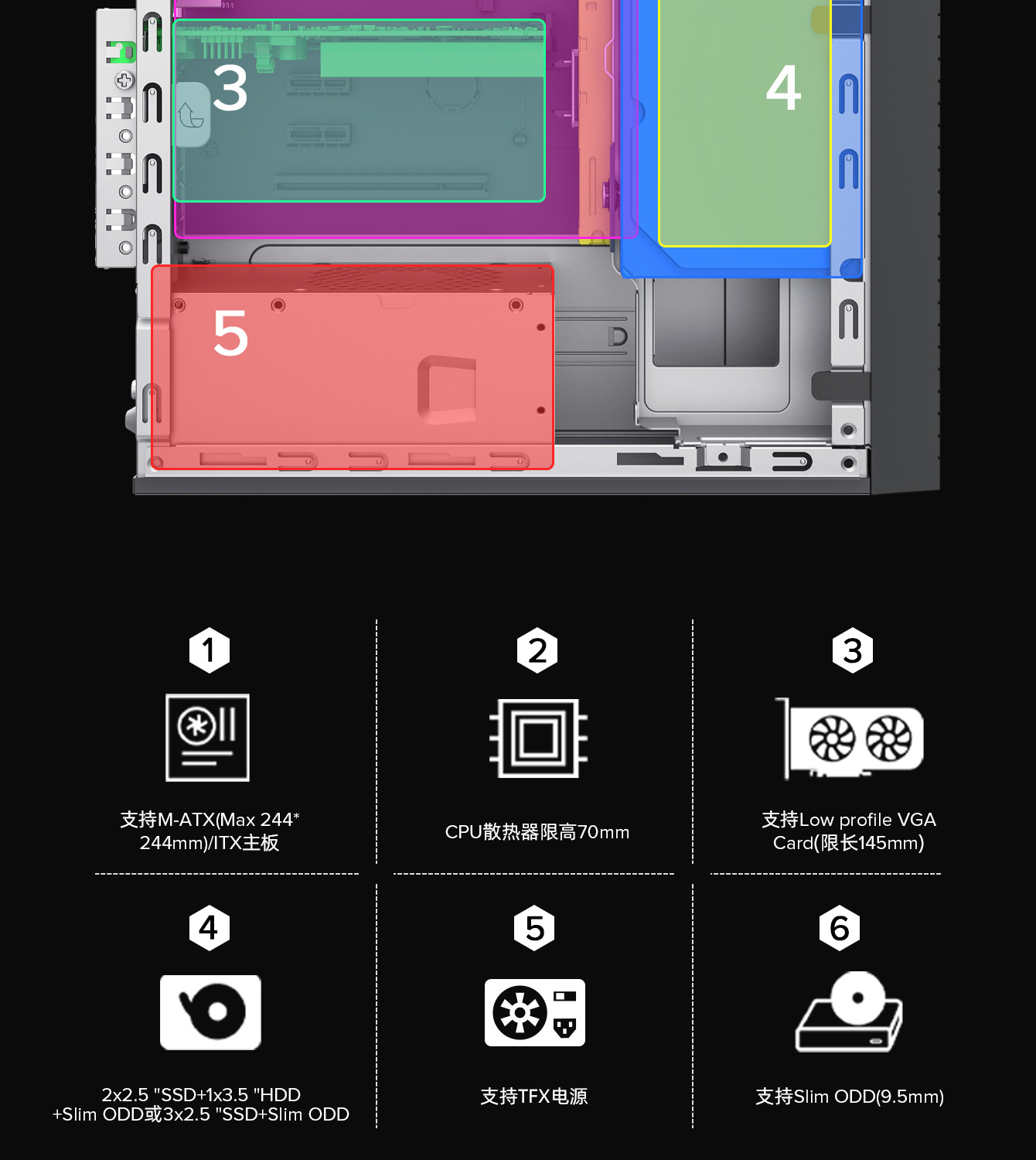

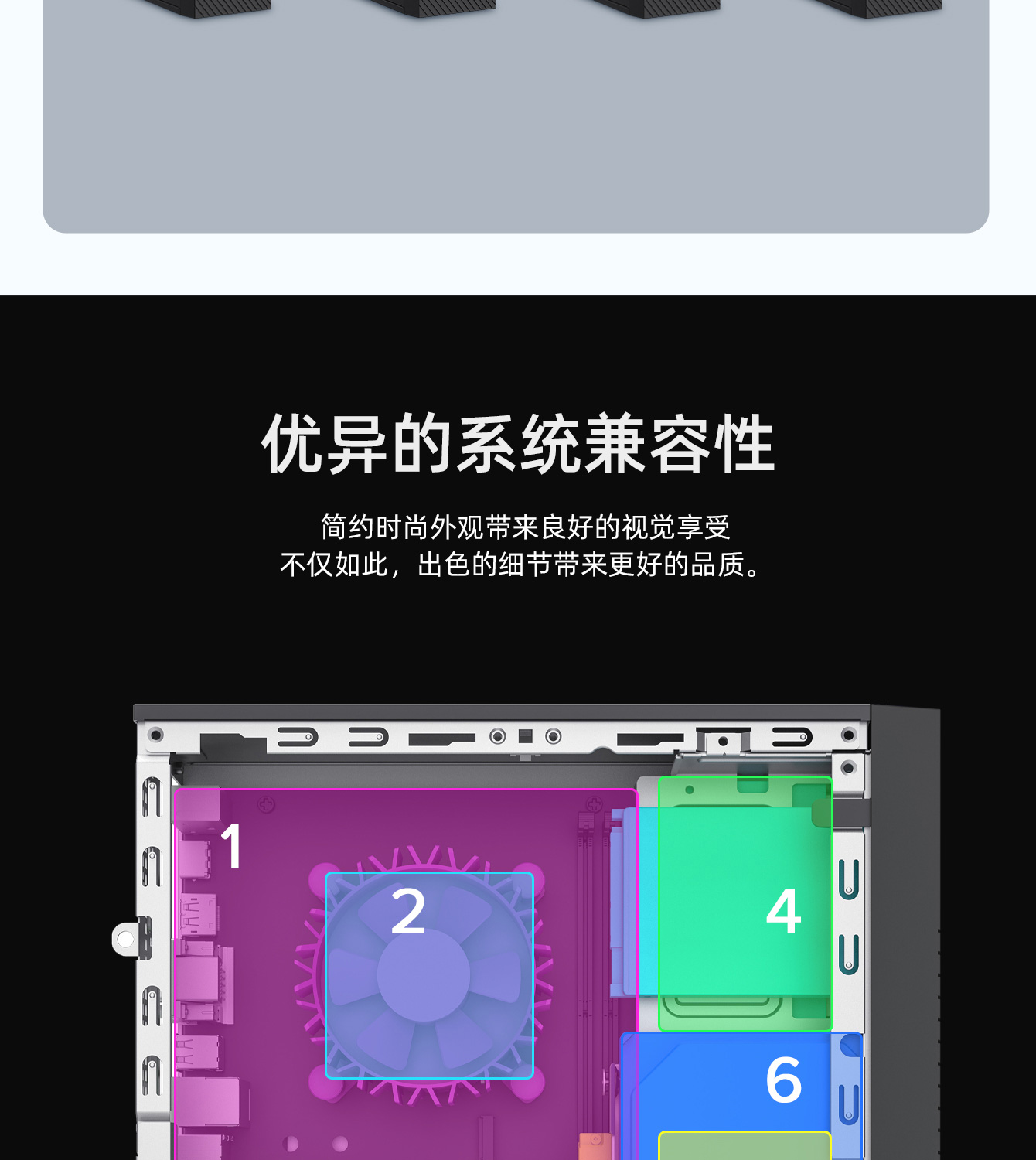

| M/B Form Factor | Micro-ATX (Max 244*244mm)、Mini-ITX | |
| Front Panel | ABS | |
| Top Panel | N/A | |
| Side Panel | Left | Metal Cover |
| Right | N/A | |

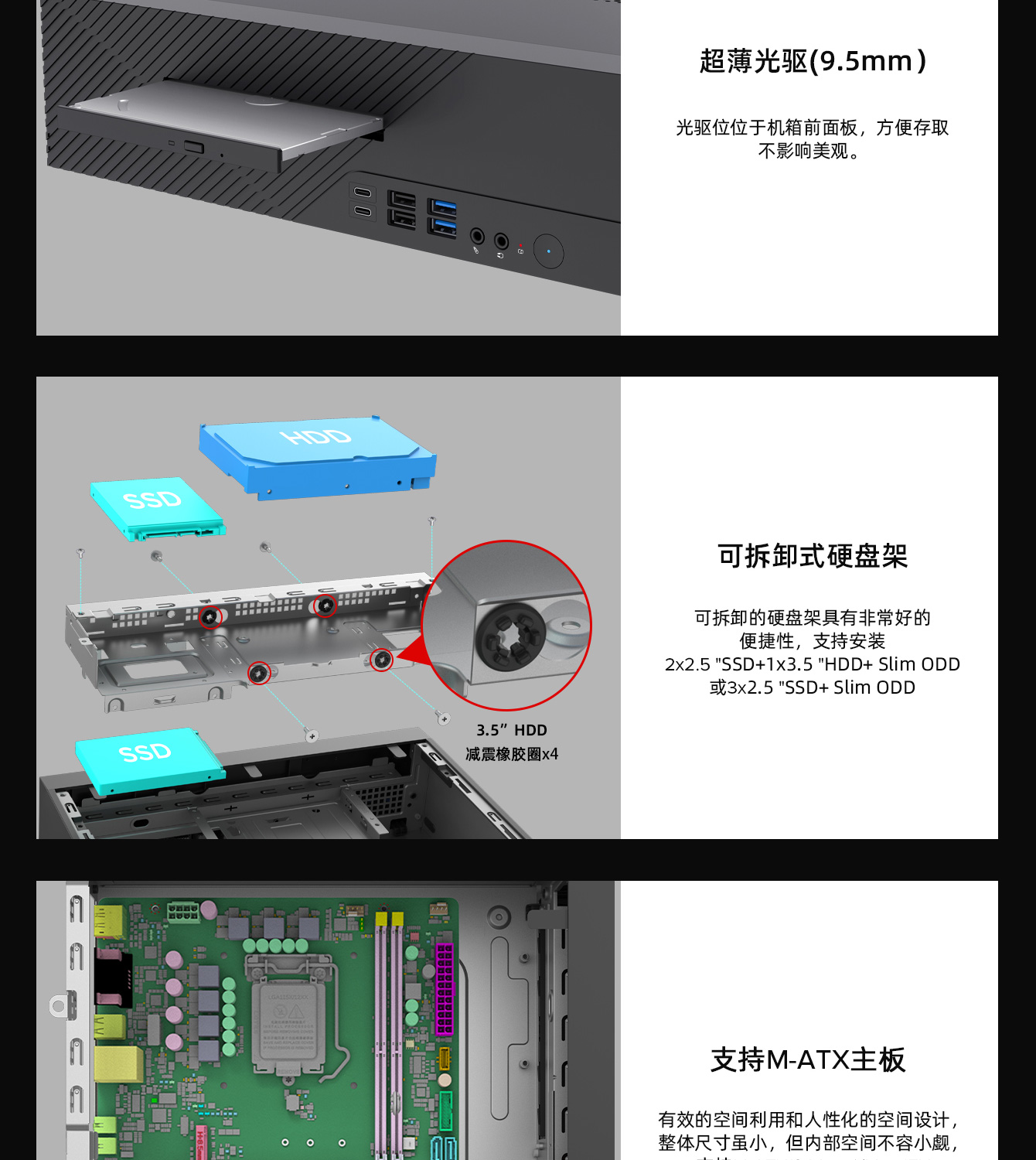

| External Drive Bay(s) | Slim ODD (9.5mm) | *1（Tool-Free） |
| 3.5" | N/A | |

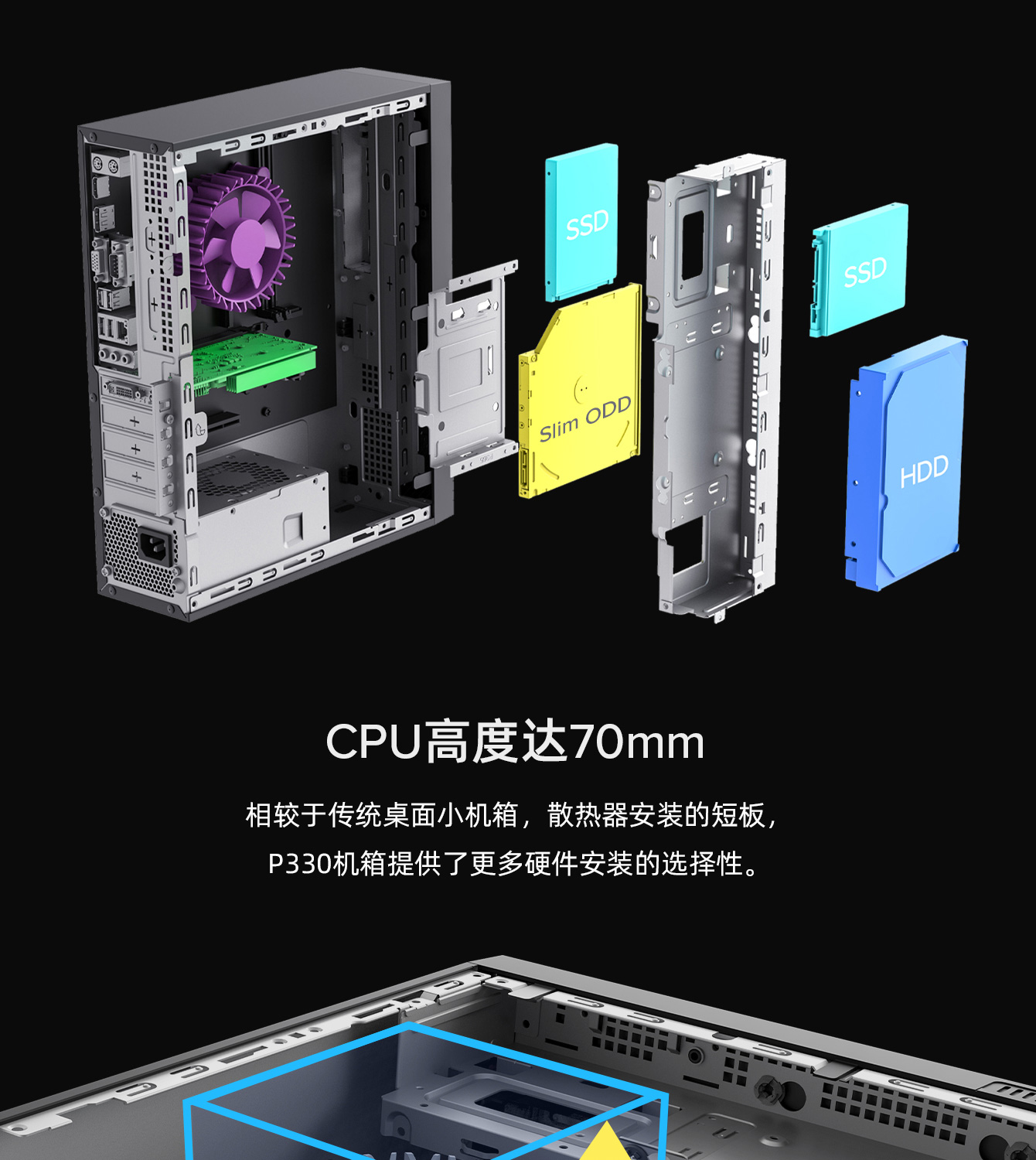

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+2*2.5SSD or 3*2.5SSD |
| 2.5" (SSD) | ||

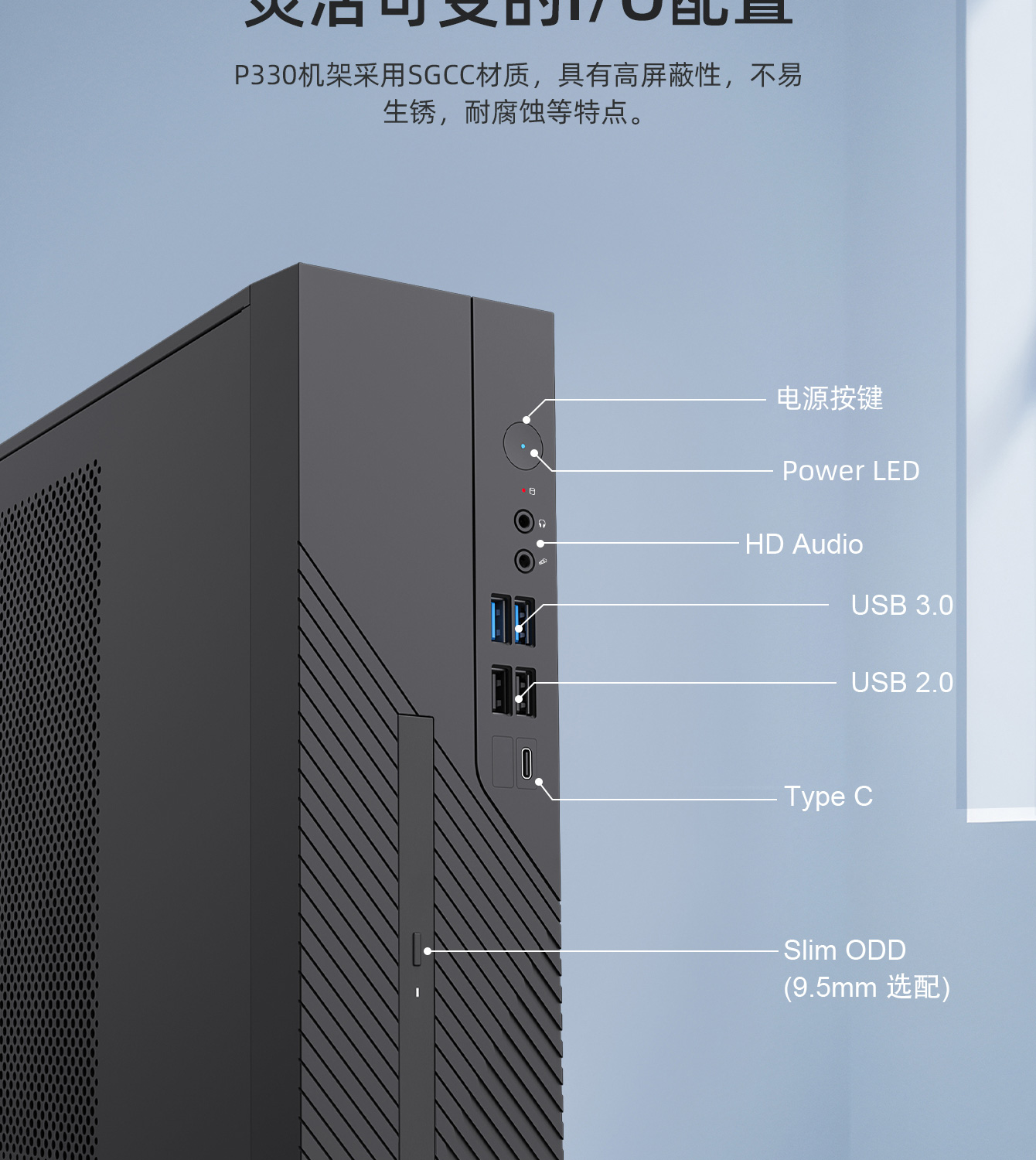

| I/O | Buttons | *1 |
| USB2.0 Port(s) | *4 | |
| USB3.0 Port(s) | *2 | |
| HD Audio Support | *1 | |
| Type C(2.0/GEN1/GEN2) | *1( Optional) | |
| P-lock | N/A | |
| Card Reader | N/A | |

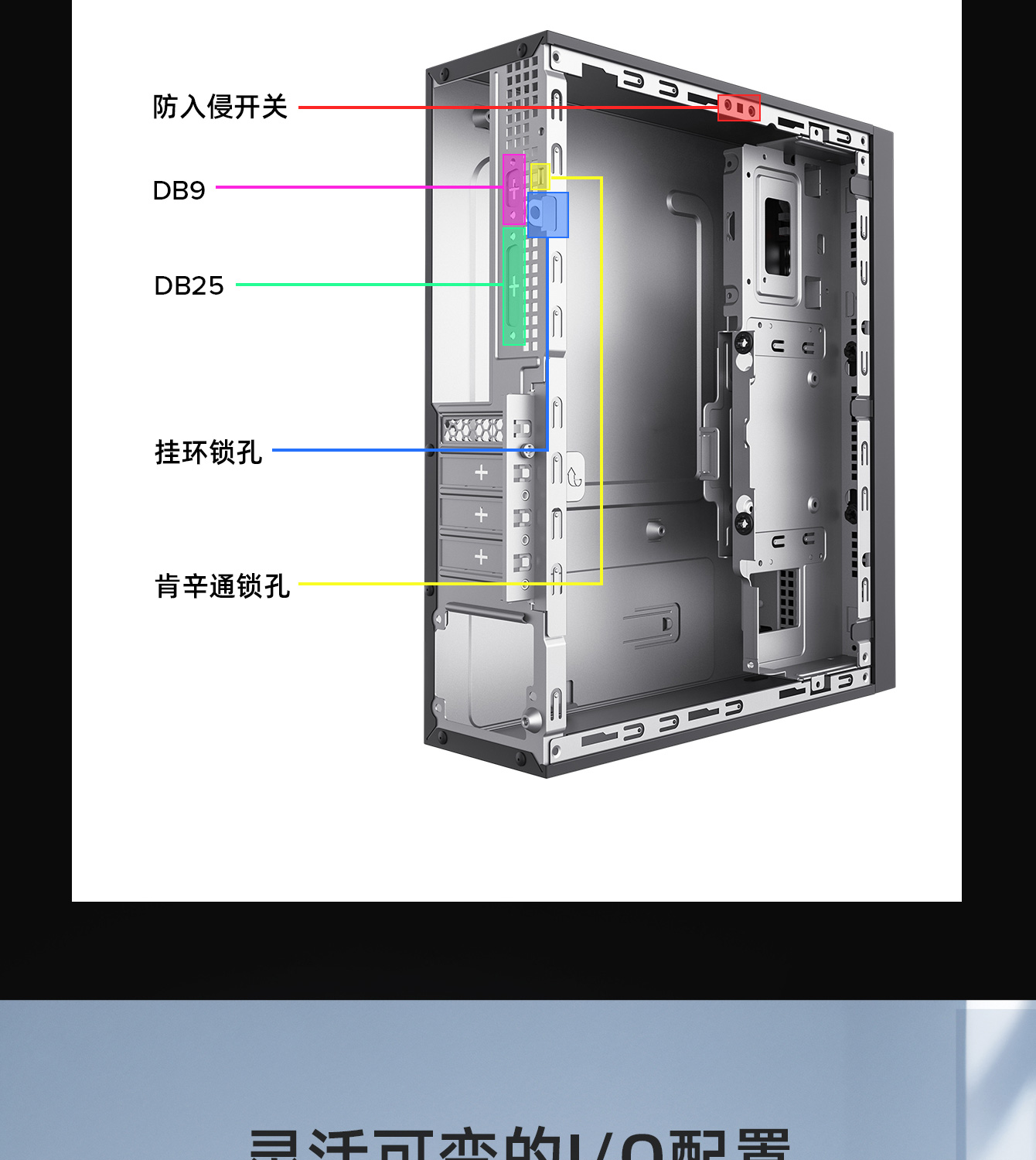

| Security | kensington Slot,Padlock Loop | |
| COM Port | DB9/DB25 Port | |
| Optional | Internal Antenna，Chassis Intrusion Switch | |
| Slots | *4 (Low Profile ) Screw-less PCI Slot Clips | |
| Carton & Logo | By OEM | |

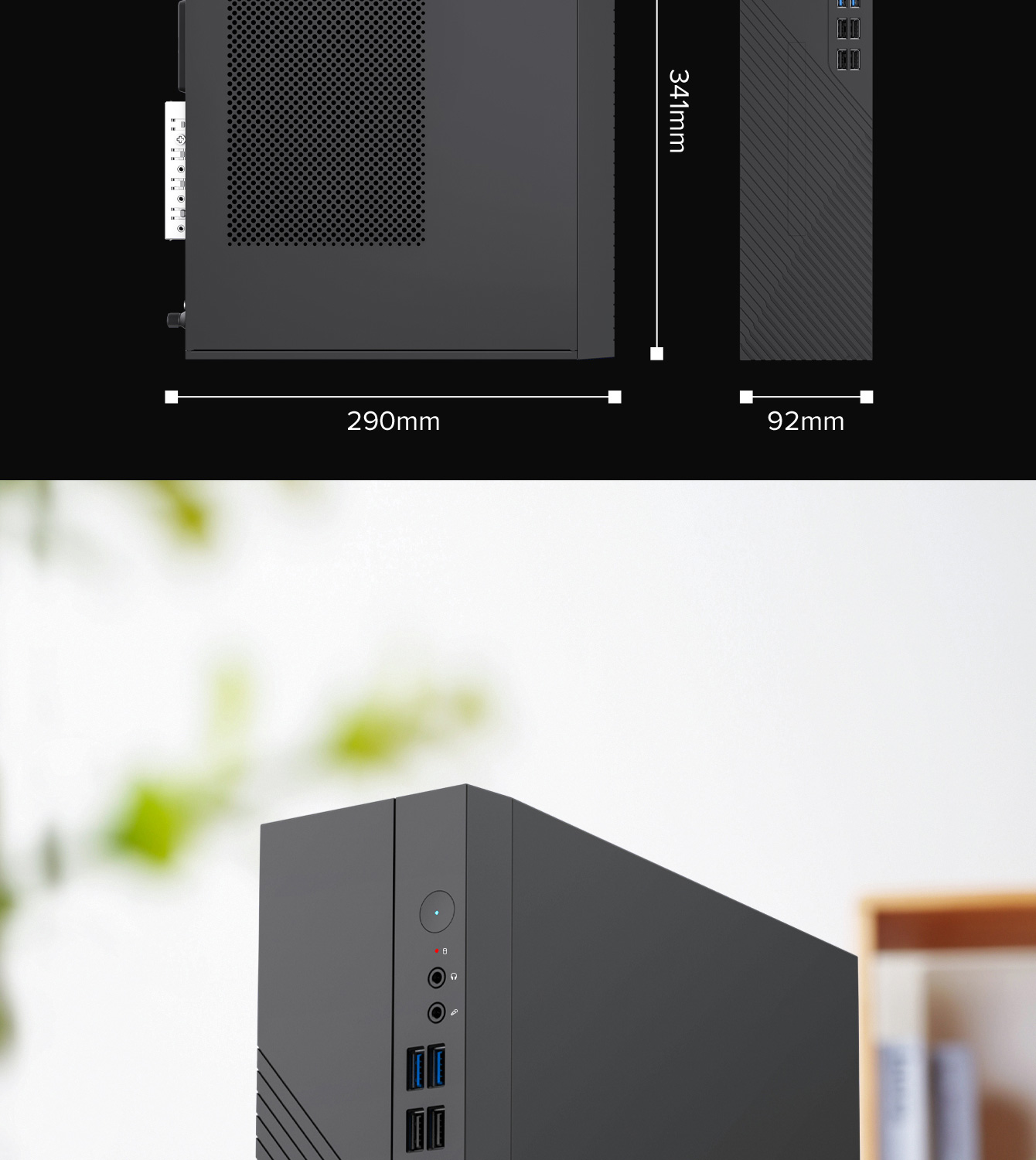

| Dimensions | Chassis | (L)341*(W)92*(H)265mm |
| Full Case (inc Fascia) | (L)341*(W)92*(H)290mm | |
| Carton | (L)403*(W)151*(H)360mm | |
| Net Weight (Kg) | 2.9kgs | |
| Gross Weight (Kg) | 3.3kgs | |
| VGA Card Length | Up to 145mm | |

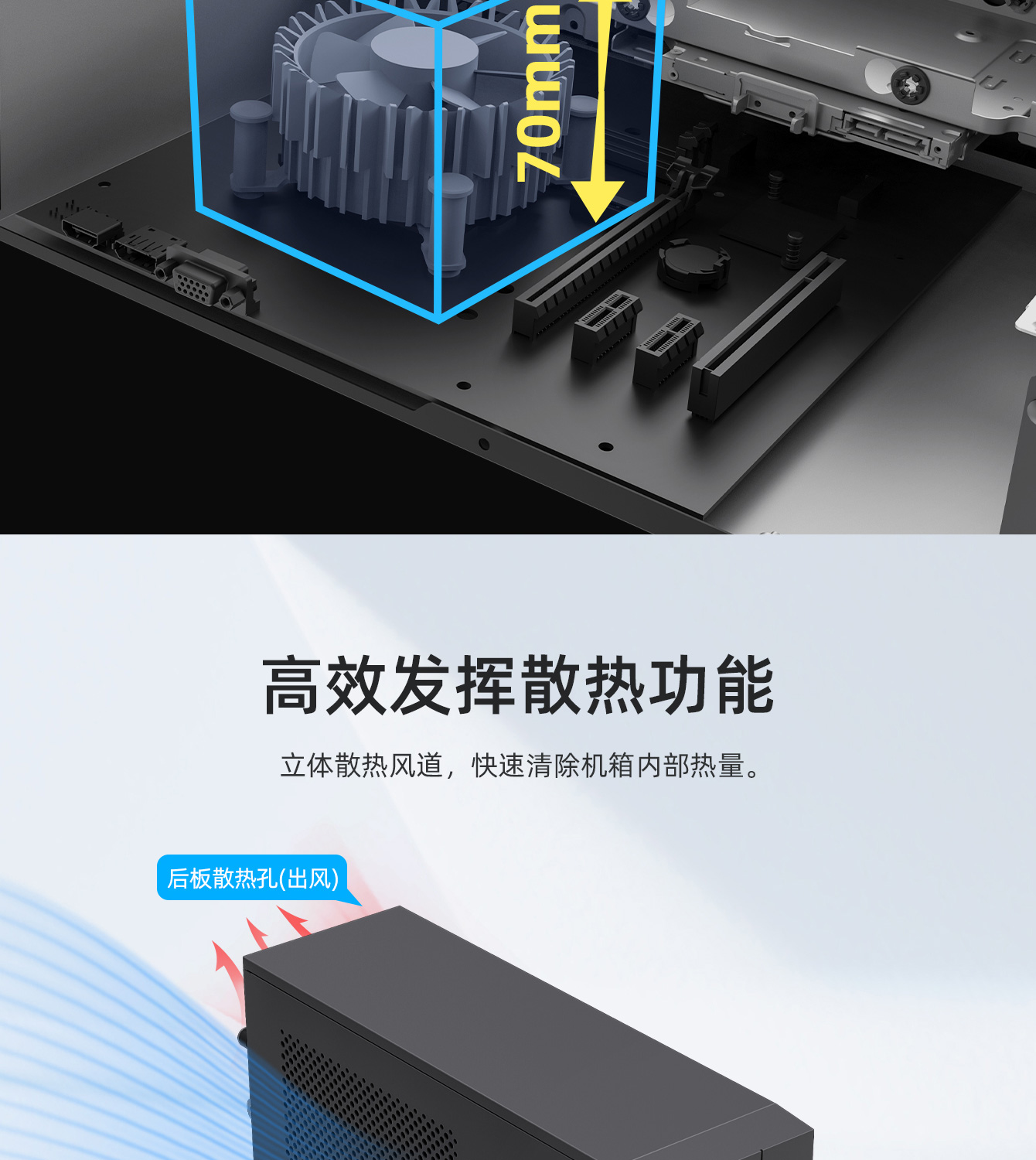

| CPU Cooler Height | Up to 70mm | |
| PSU Length | Up to 175mm | |
