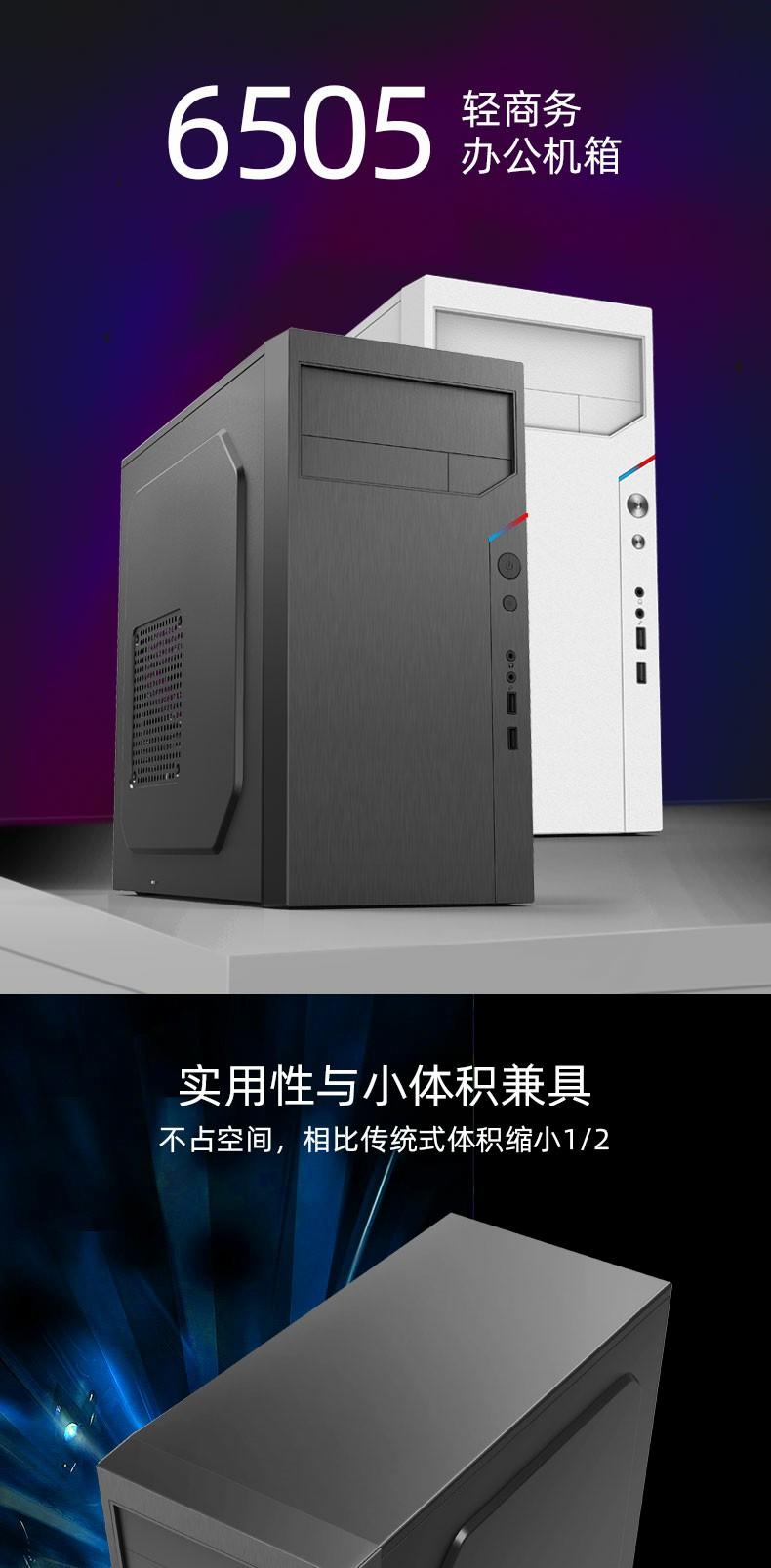

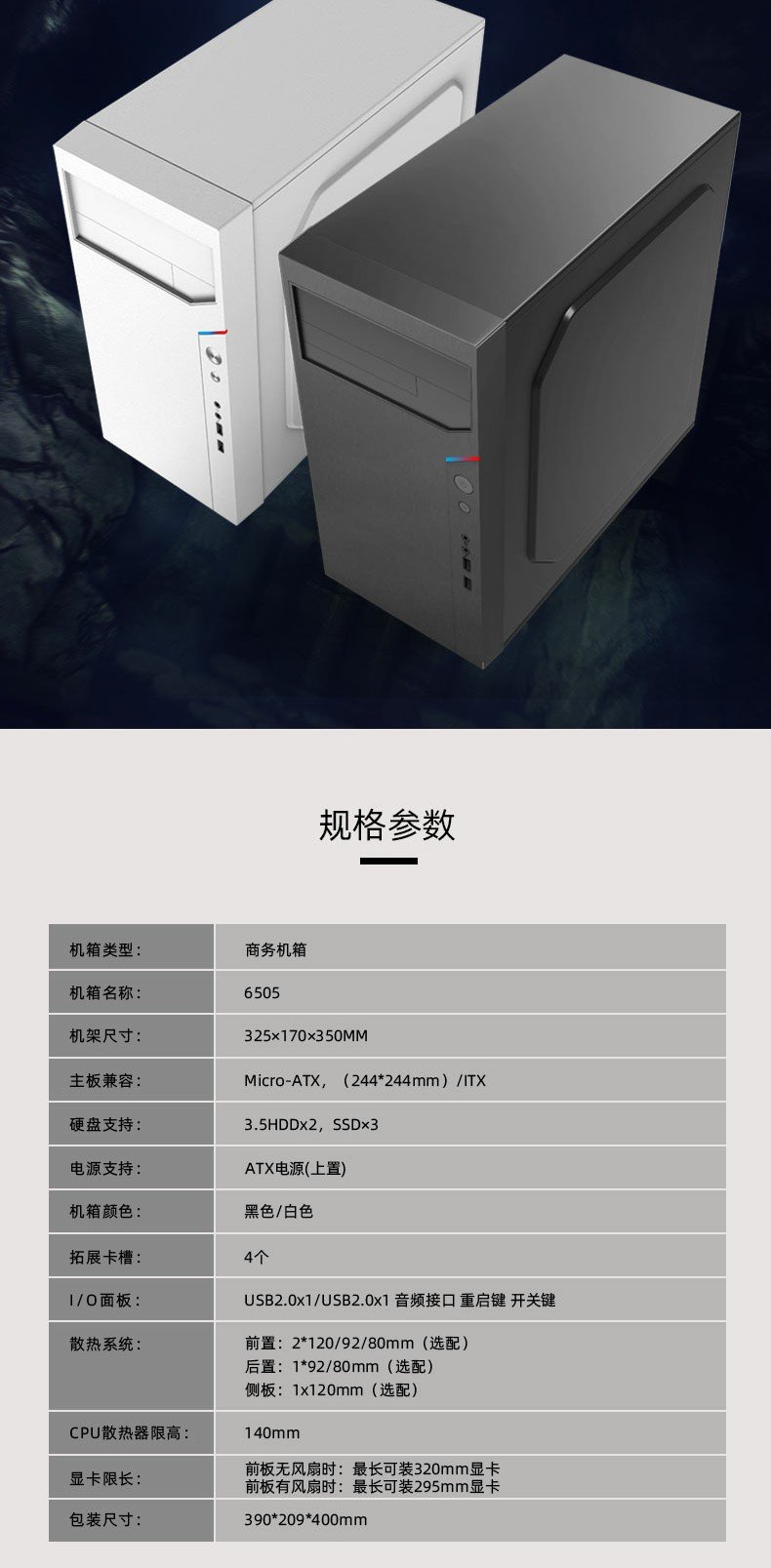

| 6505 | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Mini Tower | |
| PSU Form Factor | TOP/ATX | |
| M/B Form Factor | Micro-ATX、Mini-ITX | |
| Front Panel | ABS | |
| Top Panel | Metal | |

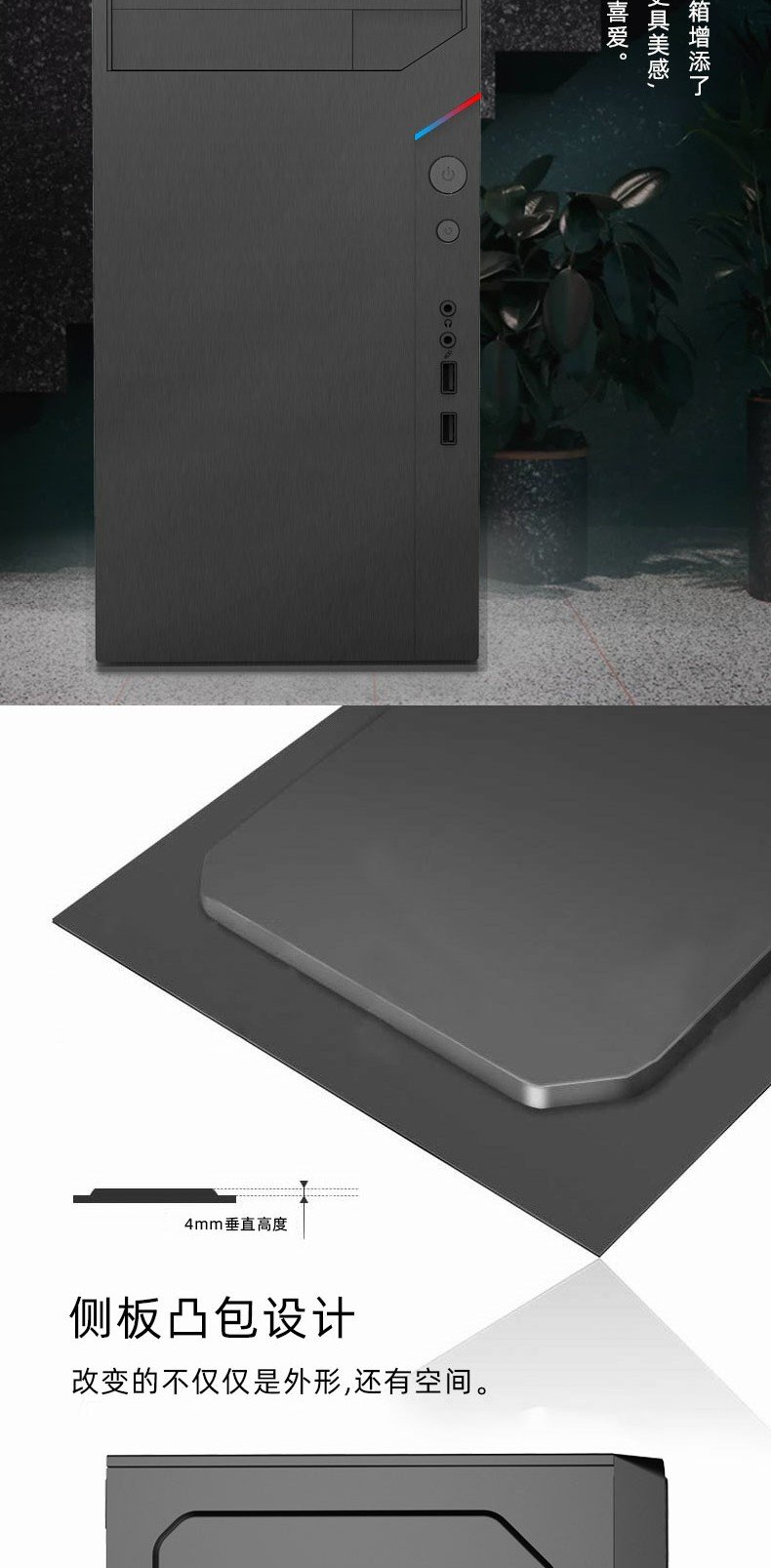

| Side Panel | Left | Metal Cover |
| Right | Metal Cover | |

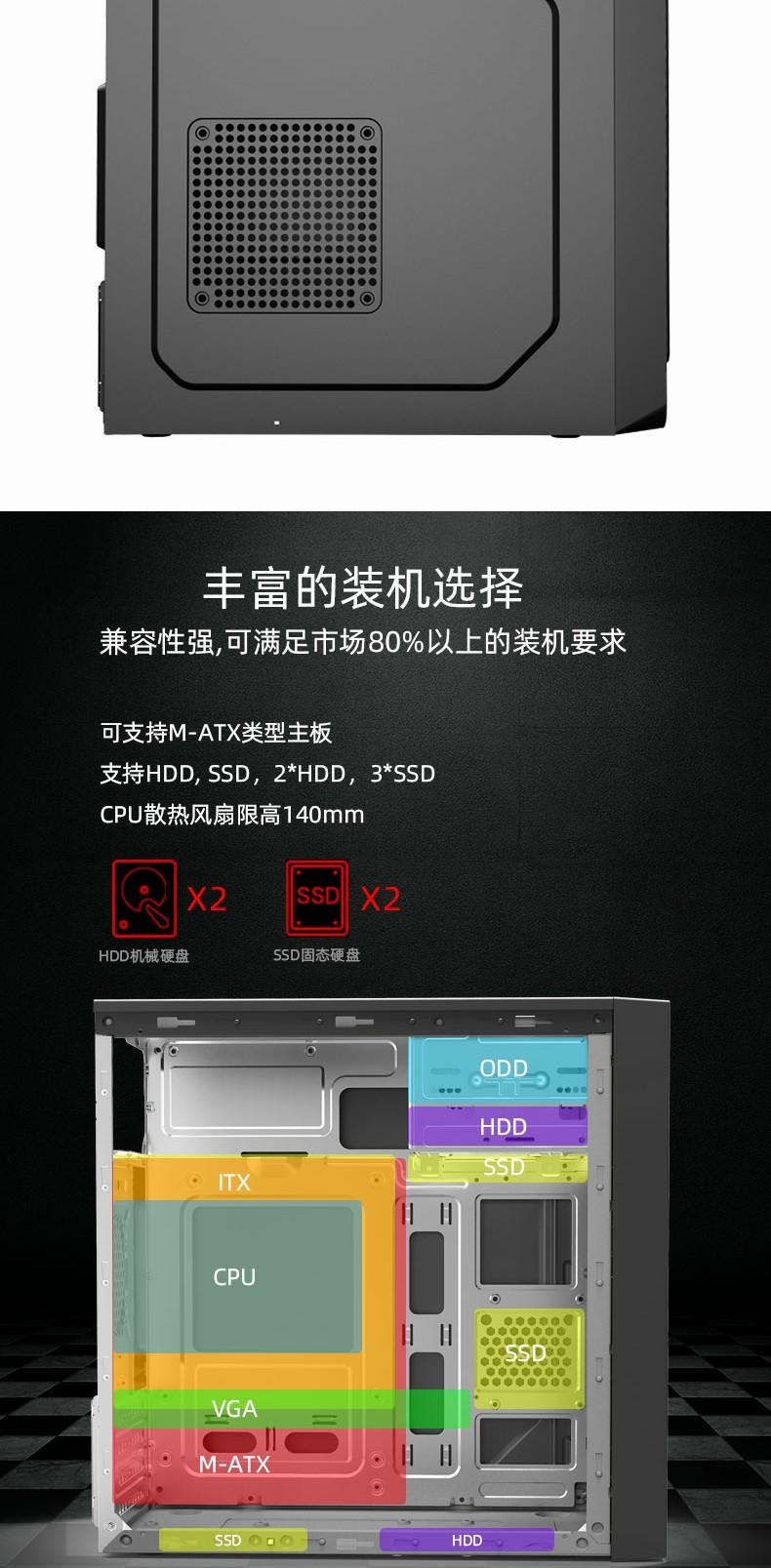

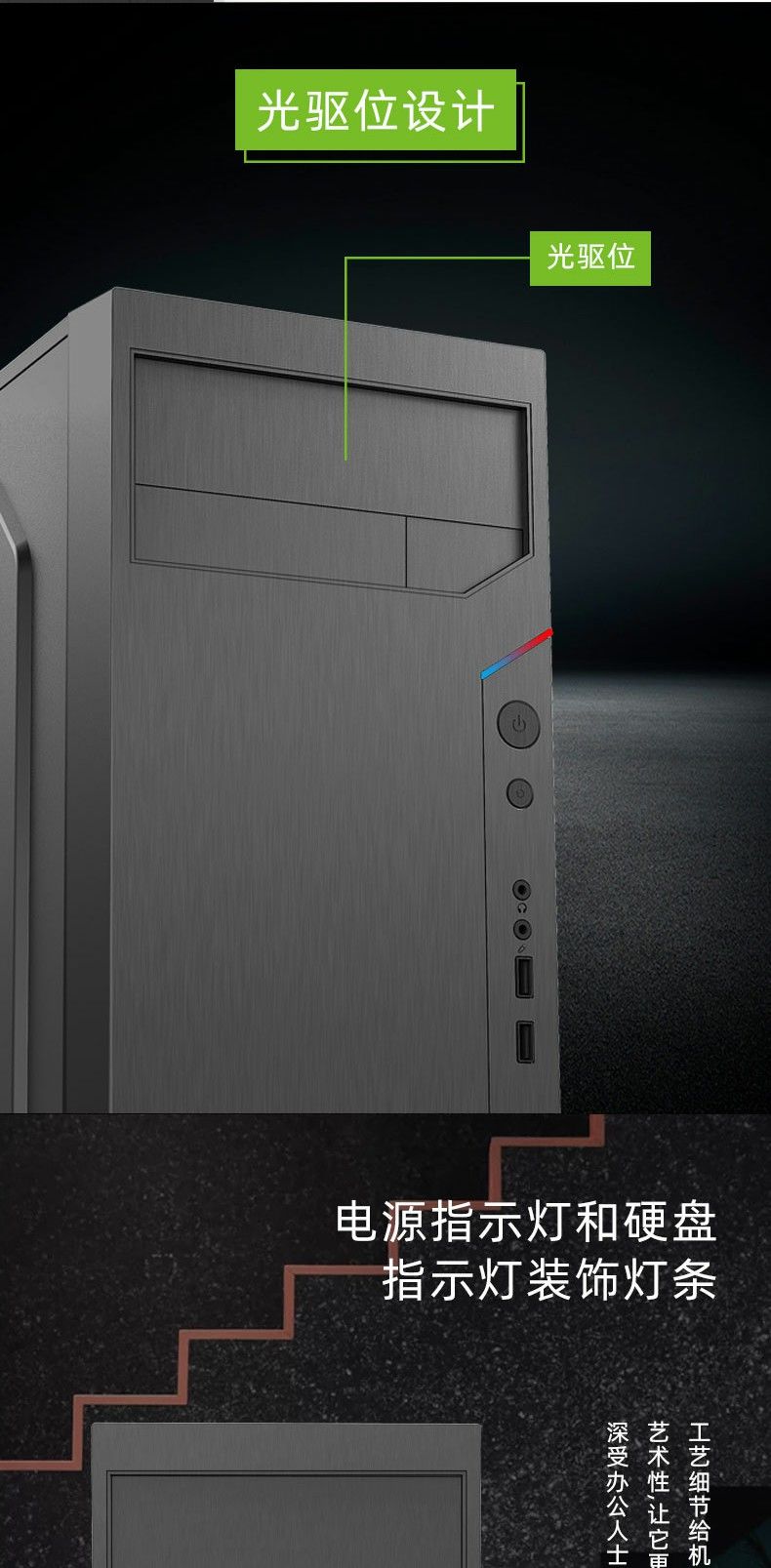

| External Drive Bay(s) | 5.25inch (ODD) | *1 |
| 3.5inch | *1 | |
| Internal Drive Bay(s) | 3.5inch (HDD) | *1 |
| 2.5inch (SSD) | *3 | |

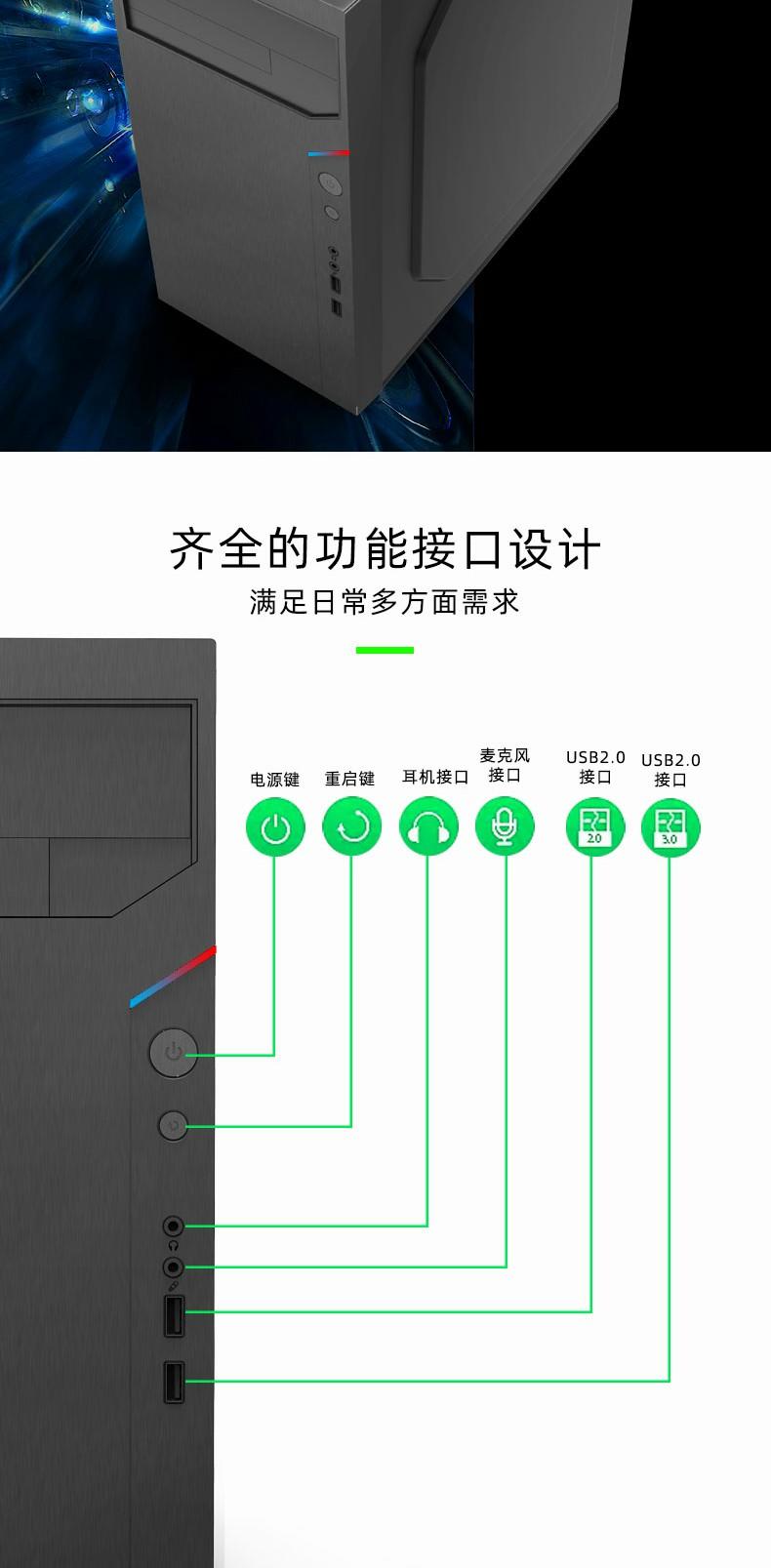

| I/O | Buttons | *2 |
| USB2.0 Type A Port(s) | *1(Optional) | |
| USB3.2 Gen1 Type A Port(s) | *2 | |
| USB2.0 Type C Port(s) | *2 | |
| Combo Audio Support | *1(CTIA) | |
| Accessory | Security | kensington Slot,Padlock Loop |
| Optional | Chassis Intrusion/Electronic Lock/Internal Speaker | |

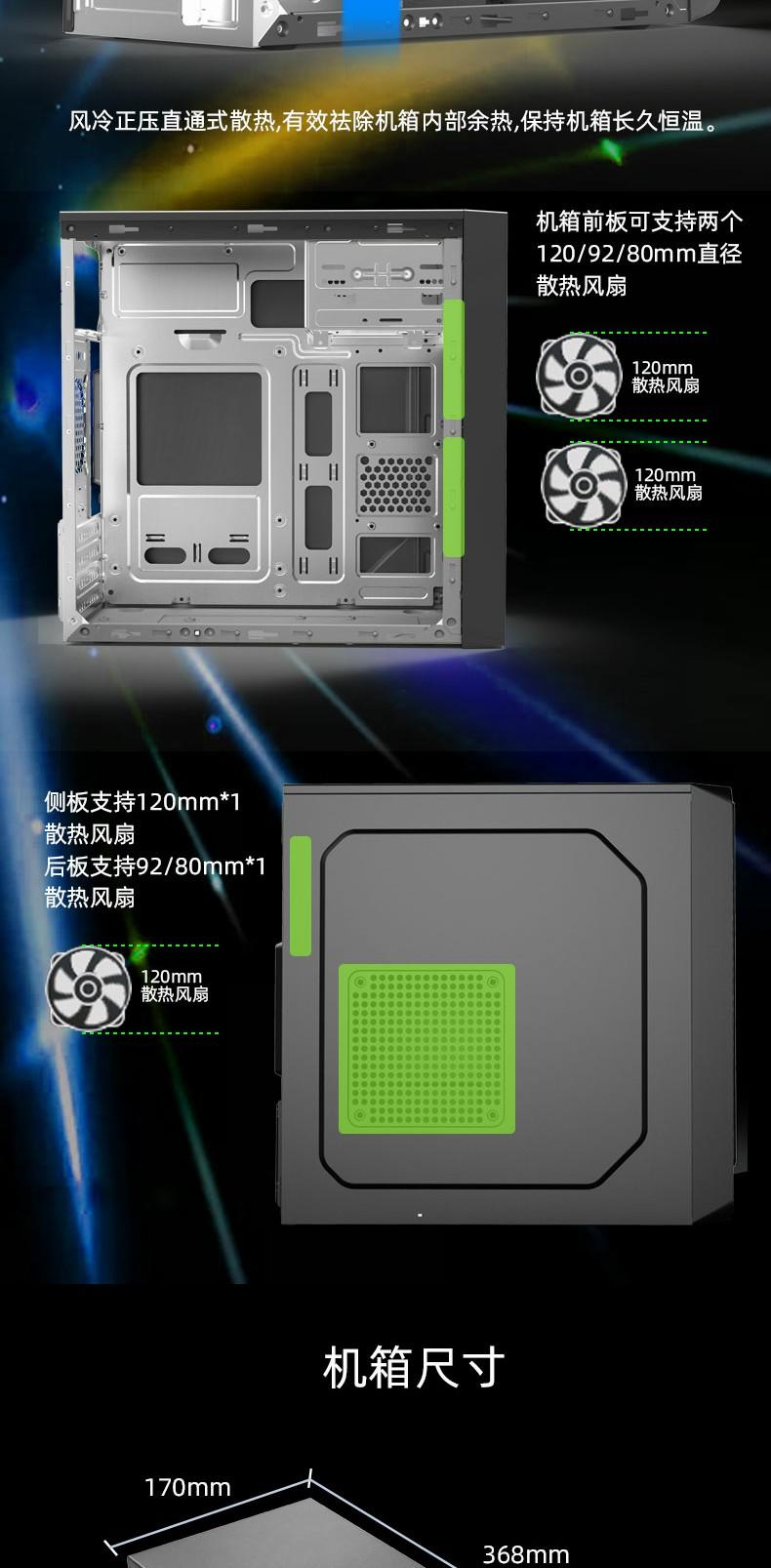

| Cooling Fan Support | Front | 2x120/92/80mm(Fan optional) |
| Top | N/A | |
| Rear | 1x92/80(Fan Optional) | |
| Left Side | 1x120mm(Fan Optional) | |
| Dust Cover | N/A | |
| Slots | *4 | |
| Carton & Logo | By OEM | |

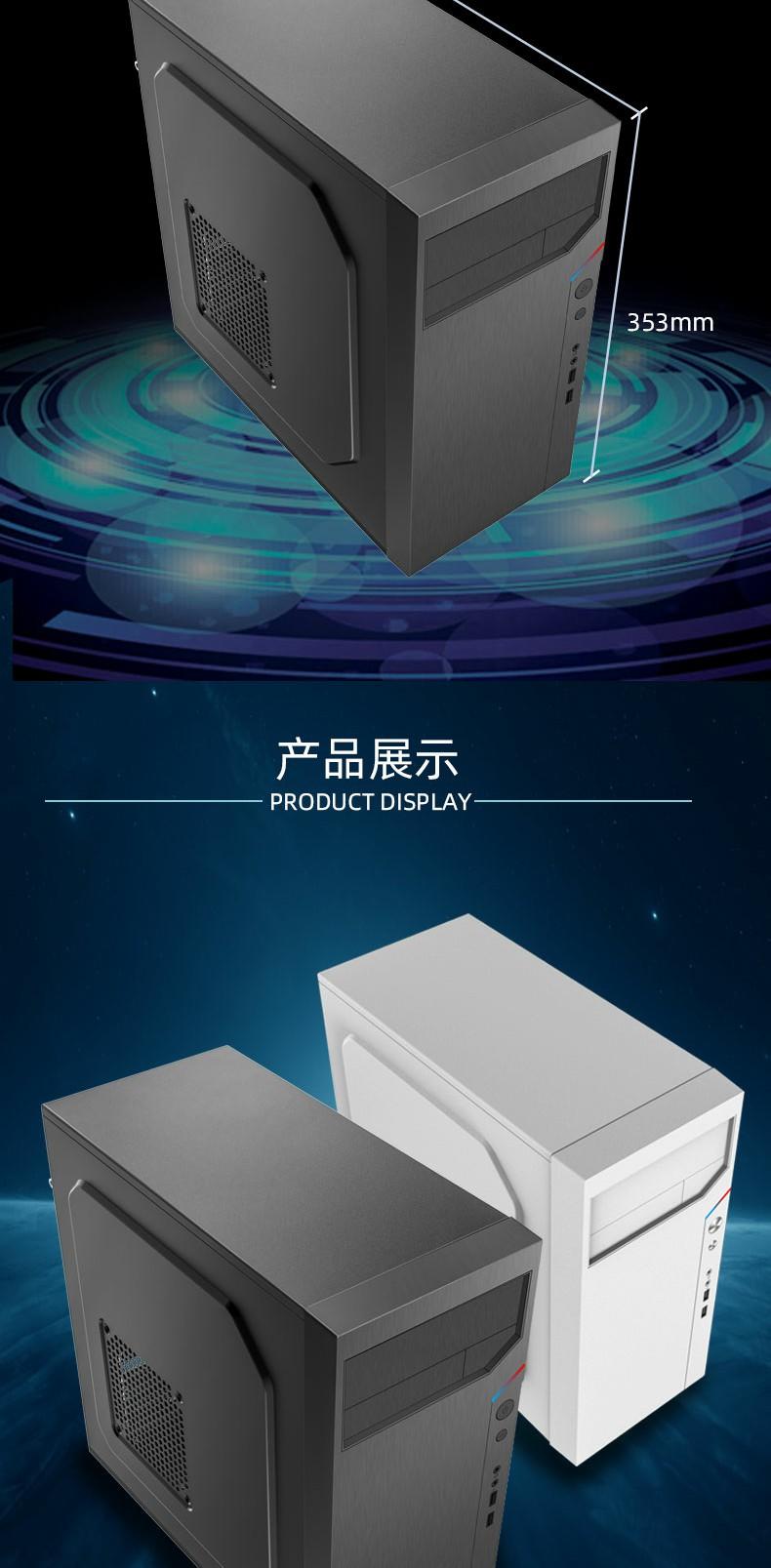

| Dimensions | Chassis | (L)325*(W)170*(H)350mm |
| Full Case (inc Fascia) | (L)368*(W)178*(H)353mm | |
| Carton | (L)368*(W)178*(H)353mm | |

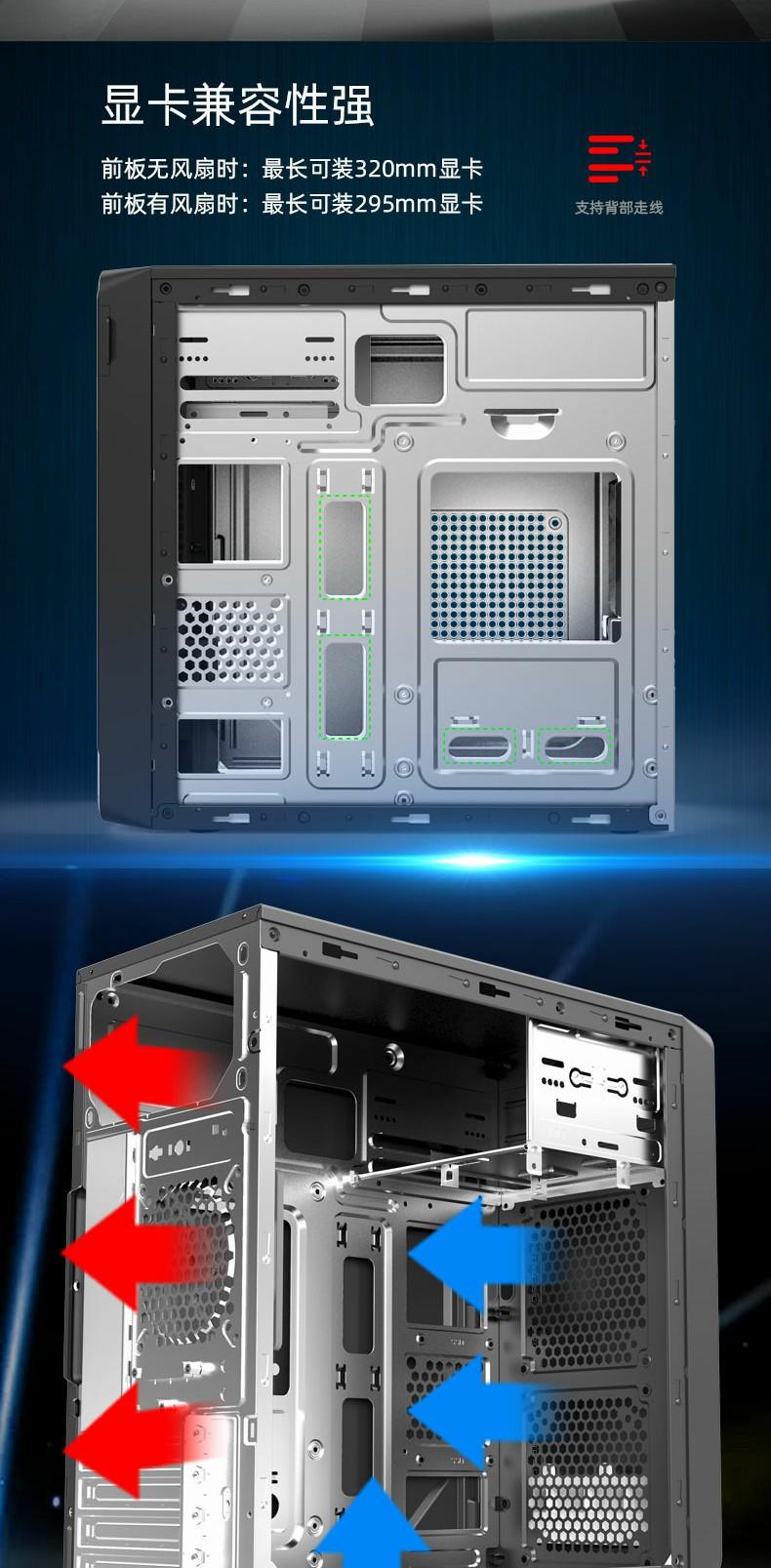

| VGA Card Length | Up to 295mm | |
| CPU Cooler Height | Up to 140mm | |
