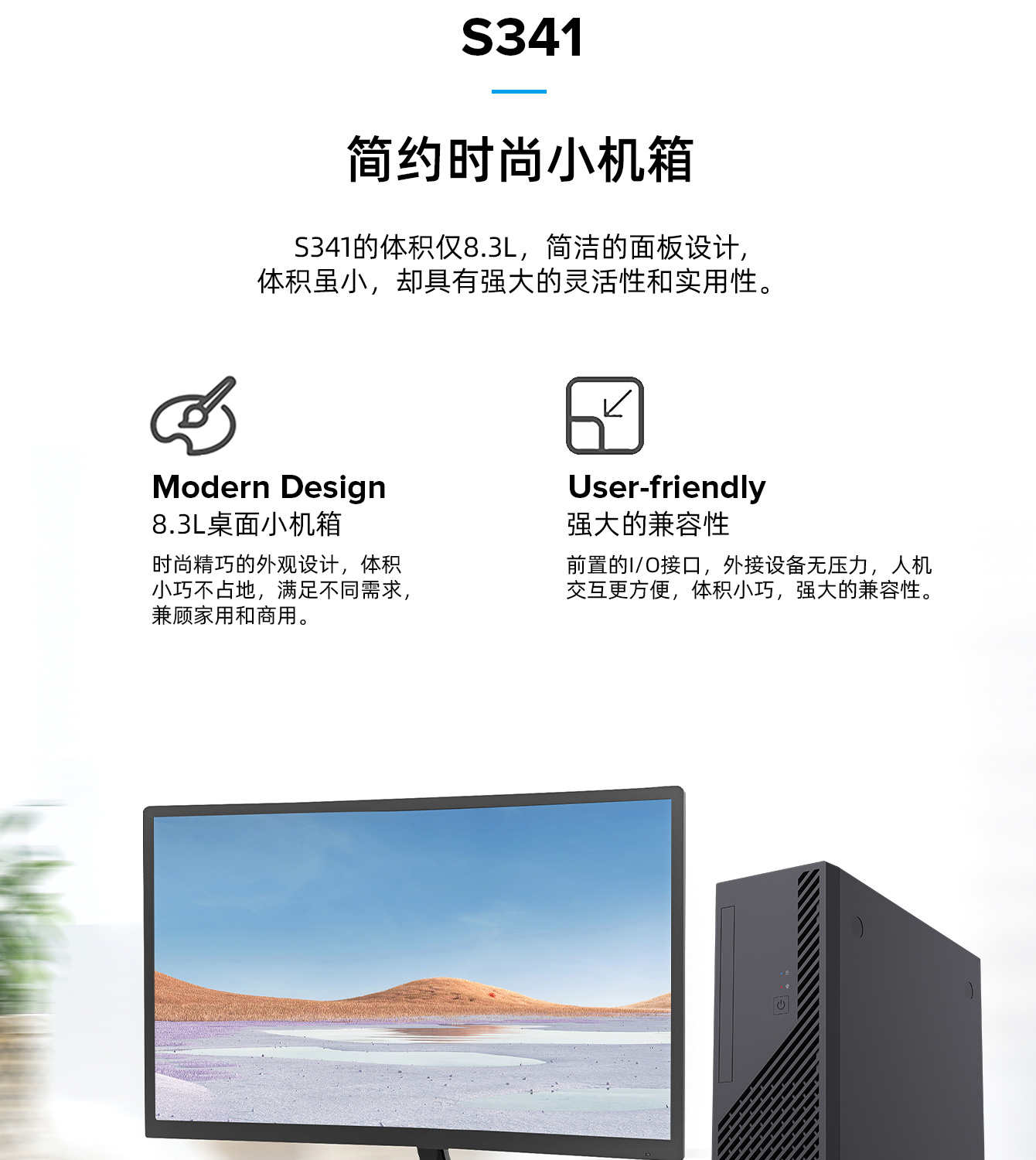

| Form Factor | SFF | |
| Chassis Material | SGCC 0.6mm | |

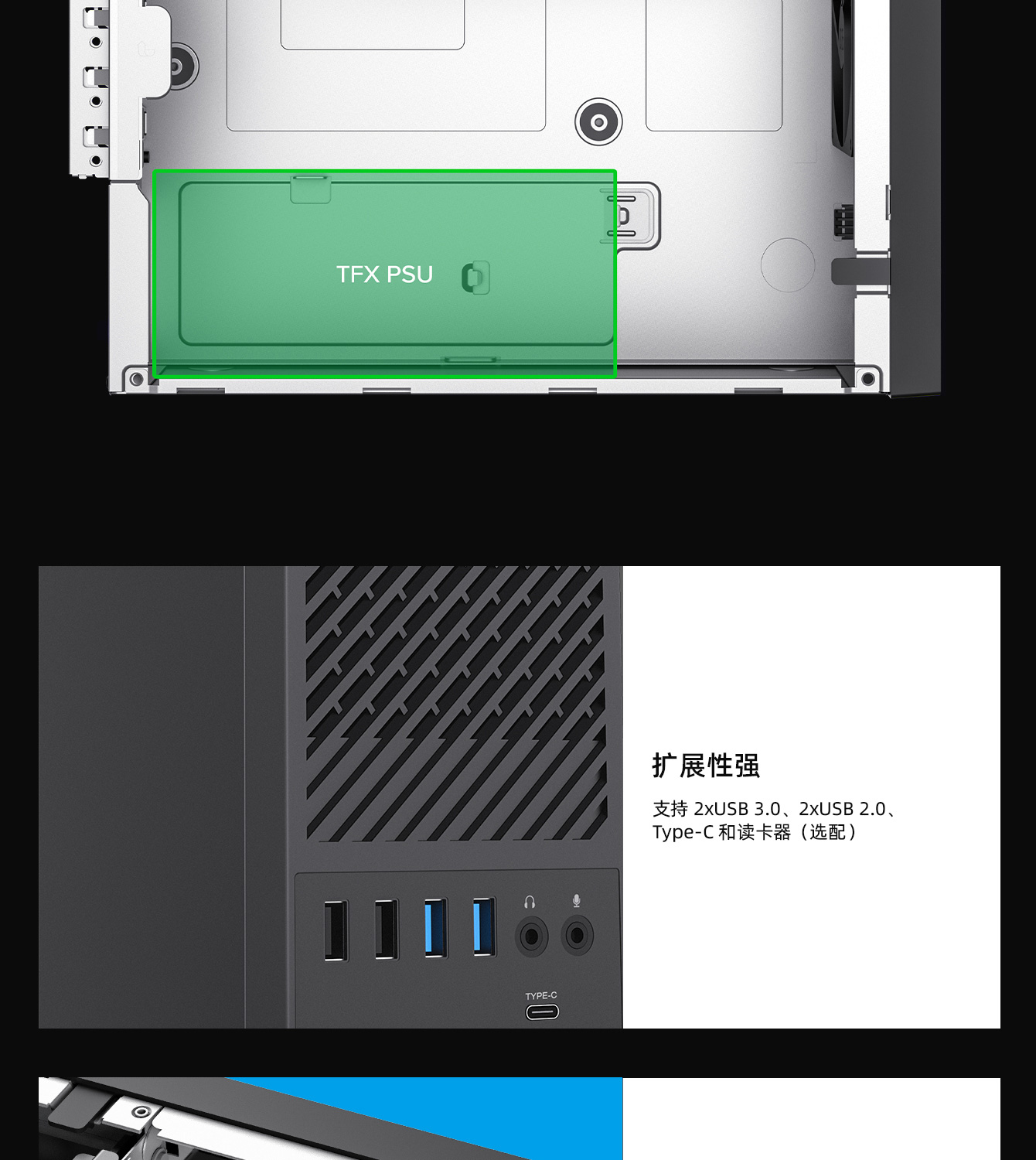

| PSU Form Factor | Bottom/TFX | |

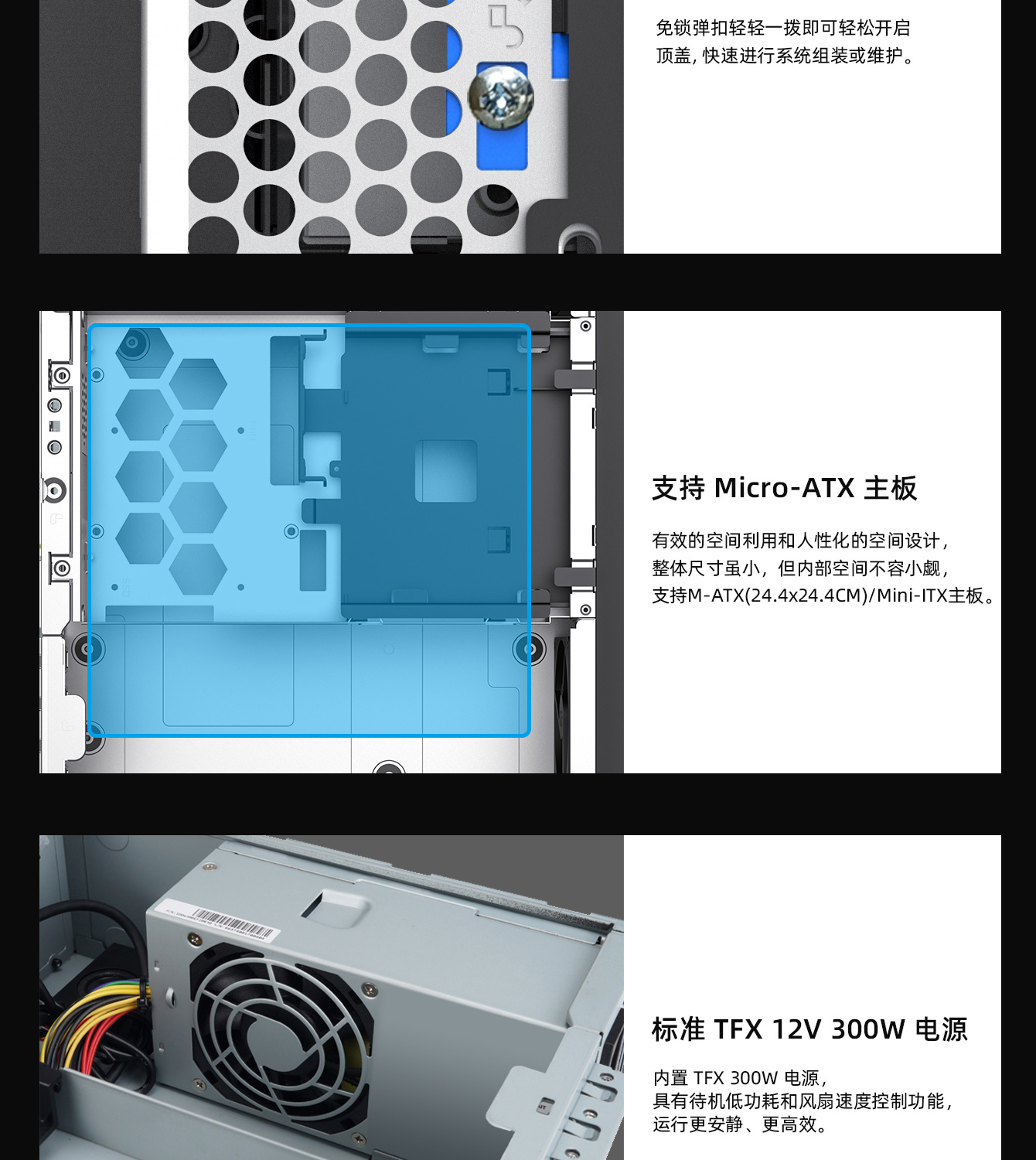

| M/B Form Factor | Micro-ATX (Max 244*244mm)、Mini-ITX | |
| Front Panel | ABS | |
| Top Panel | N/A | |
| Side Panel | Left | Metal Cover（Tool-Free） |
| Right | N/A | |

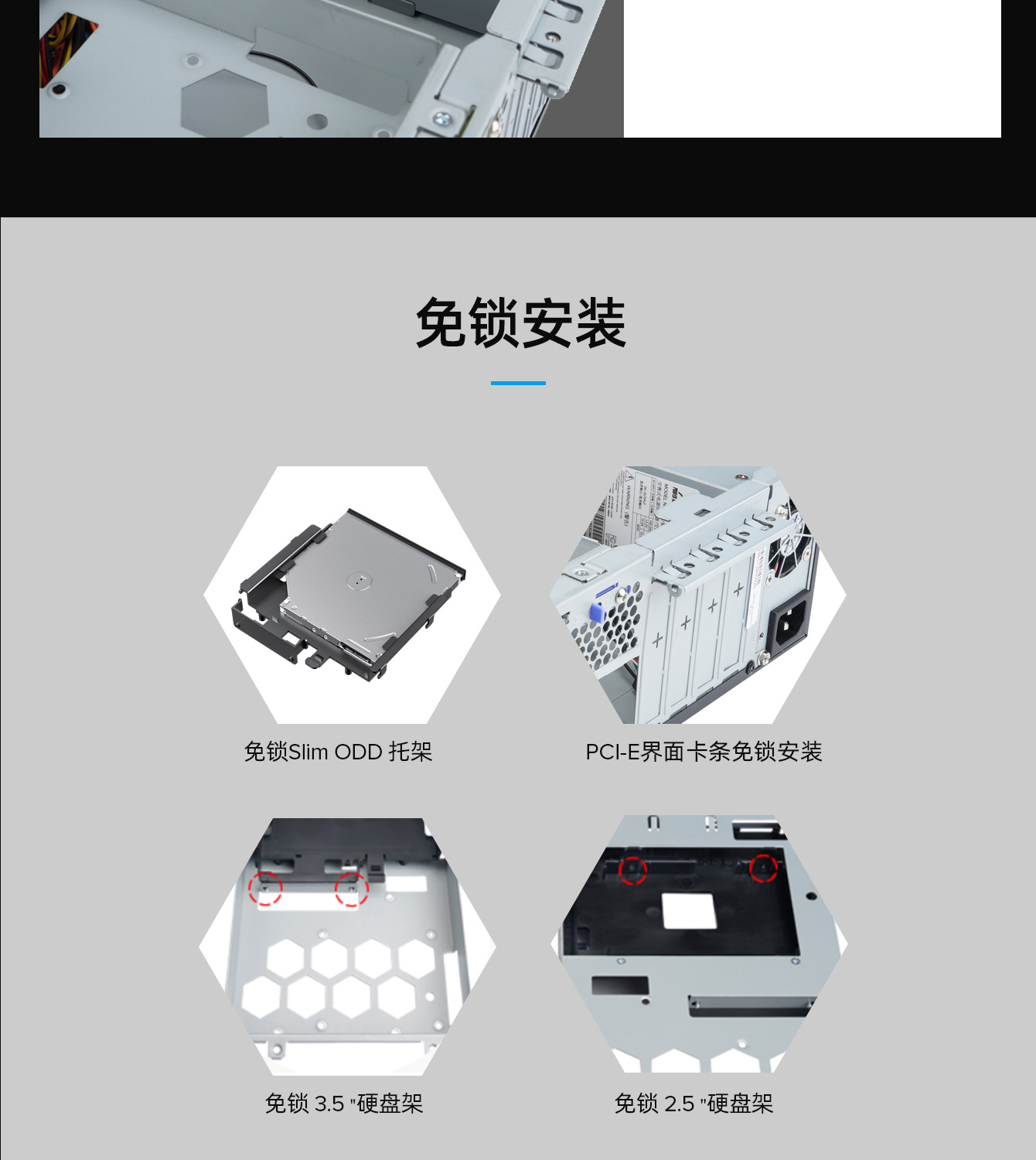

| External Drive Bay(s) | Slim ODD (9.5mm) | *1（Tool-Free） |
| 3.5" | N/A | |

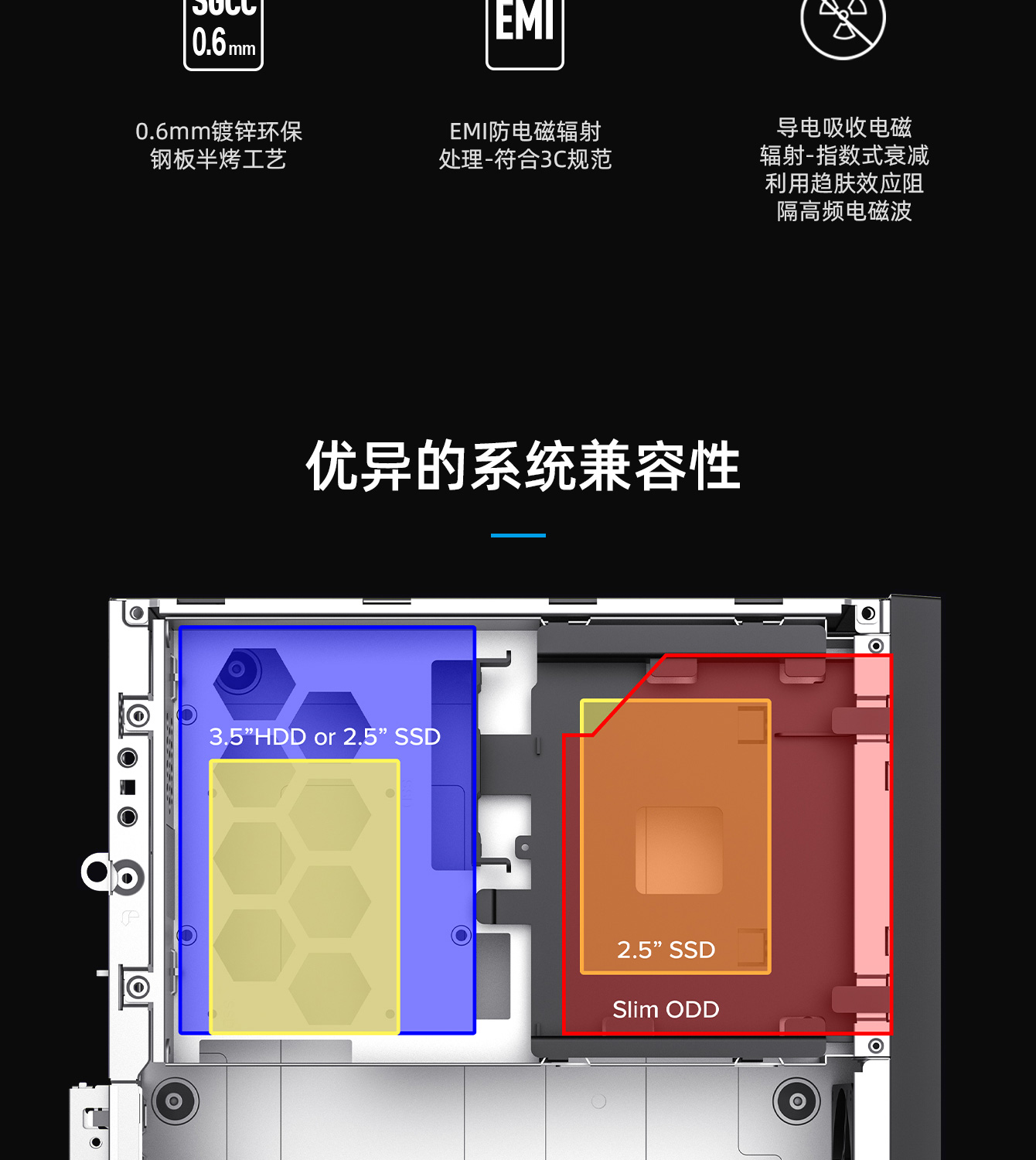

| Internal Drive Bay(s) | 3.5" (HDD) | *1（Tool-Free） |
| 2.5" (SSD) | *1（Tool-Free） | |
| 3.5“ or 2.5“ HDDx 1, 2.5“SSD x 1 | ||

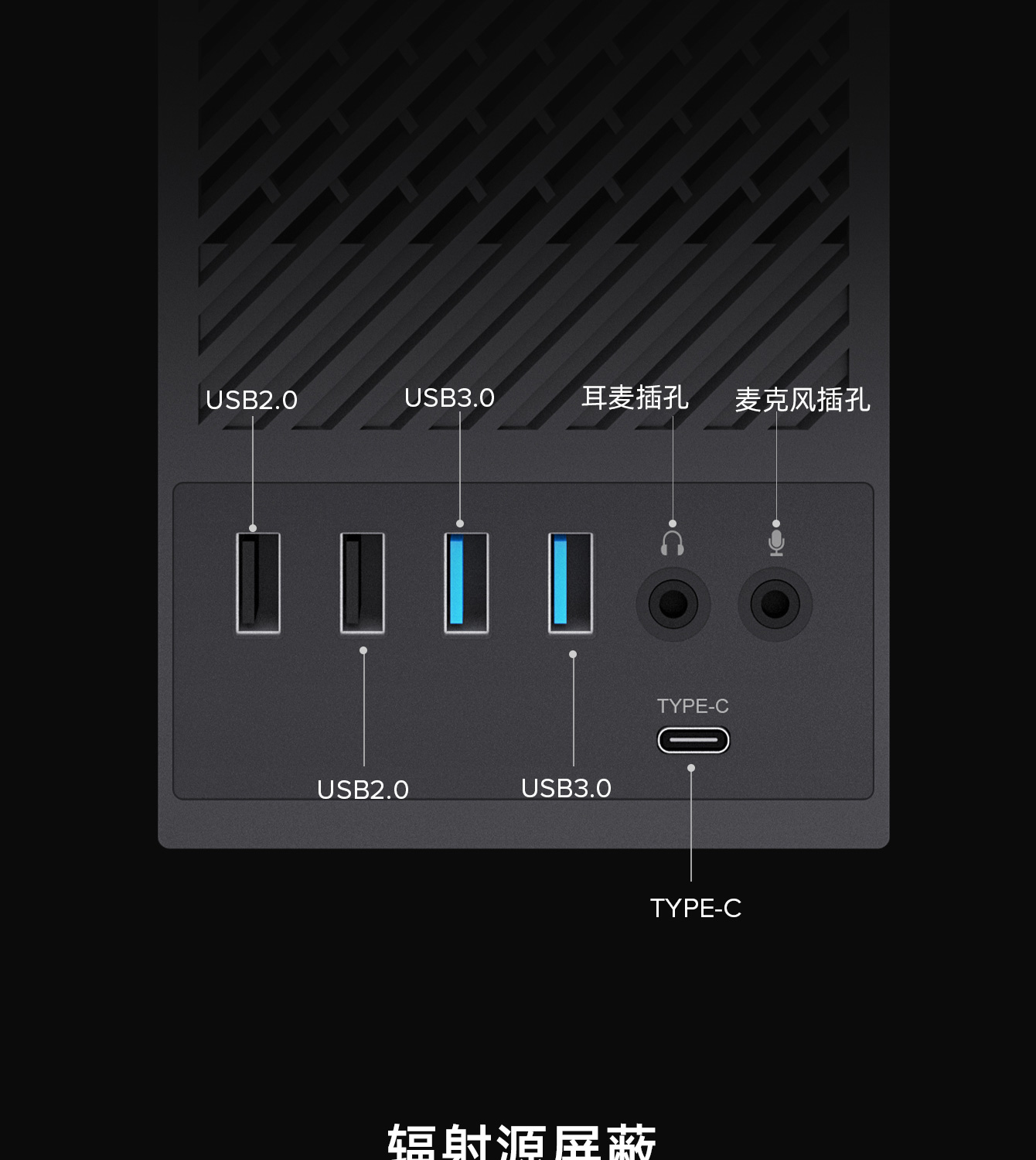

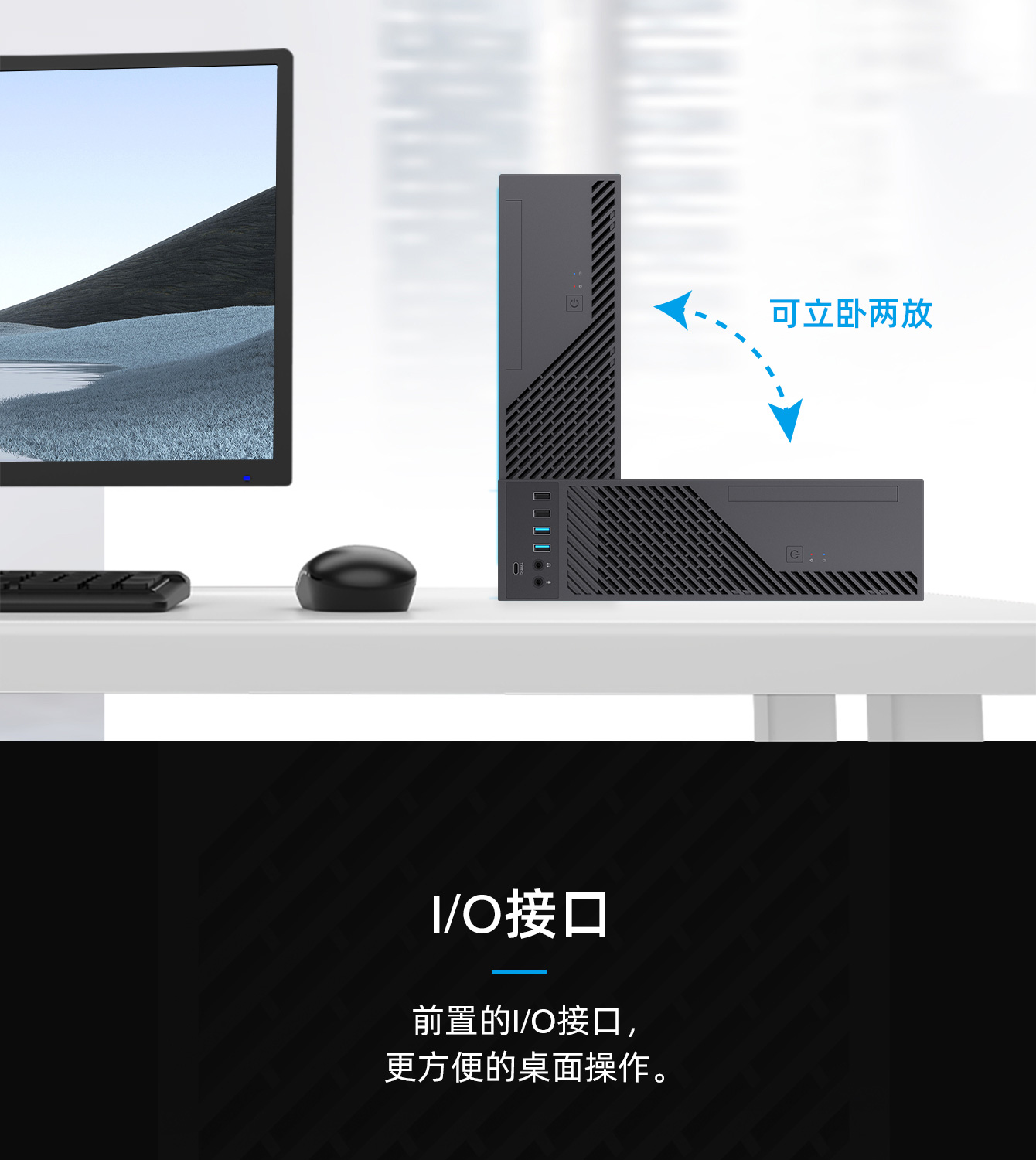

| I/O | Buttons | *1 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *2 | |
| HD Audio Support | *1(SPK+MIC) | |
| Type C | *1(Optional) | |
| P-lock | N/A | |
| Card Reader | *0 | |
| Security | kensington Slot,Padlock Loop | |
| Optional | Chassis Intrusion Switch,Internal Speaker | |

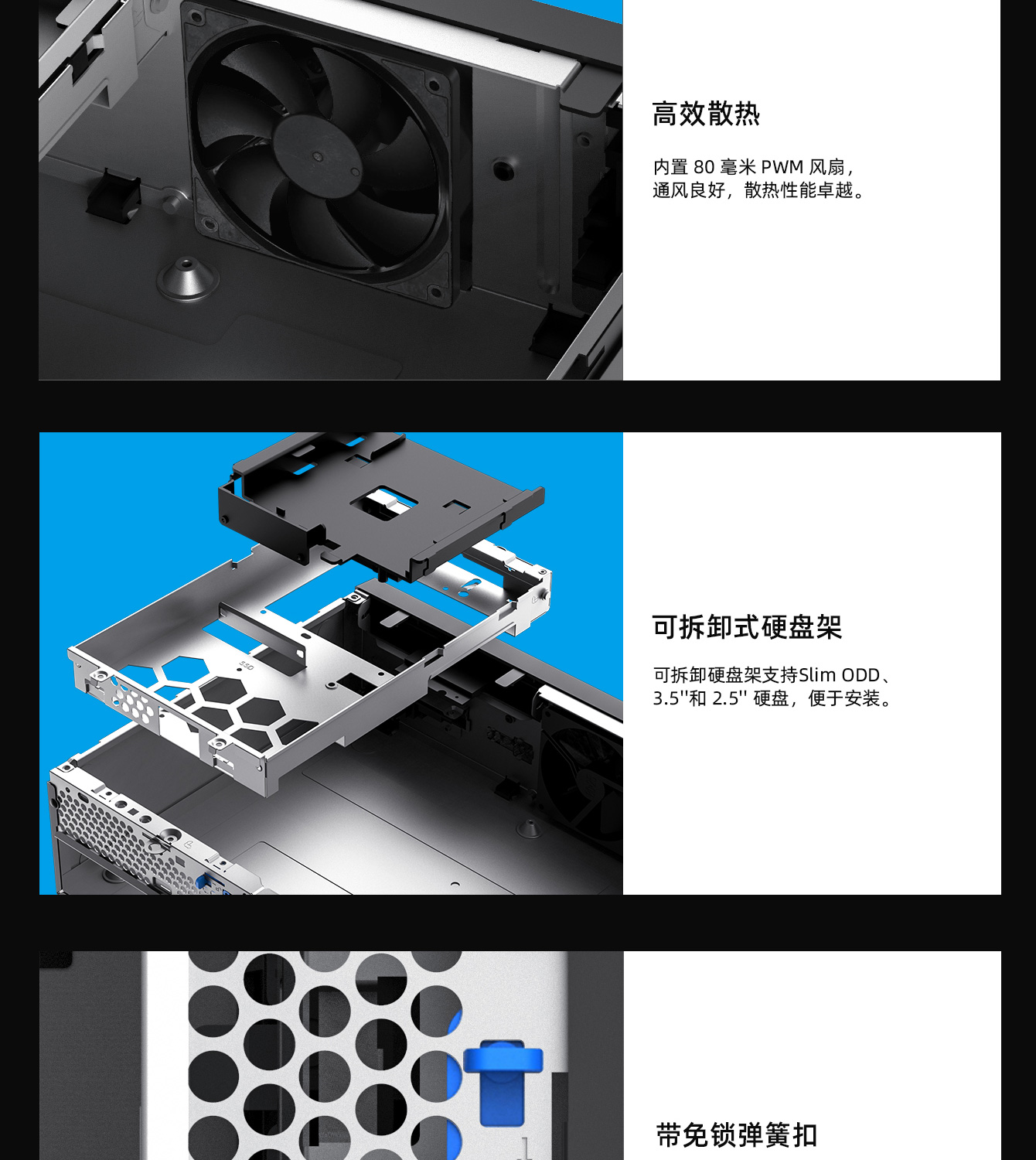

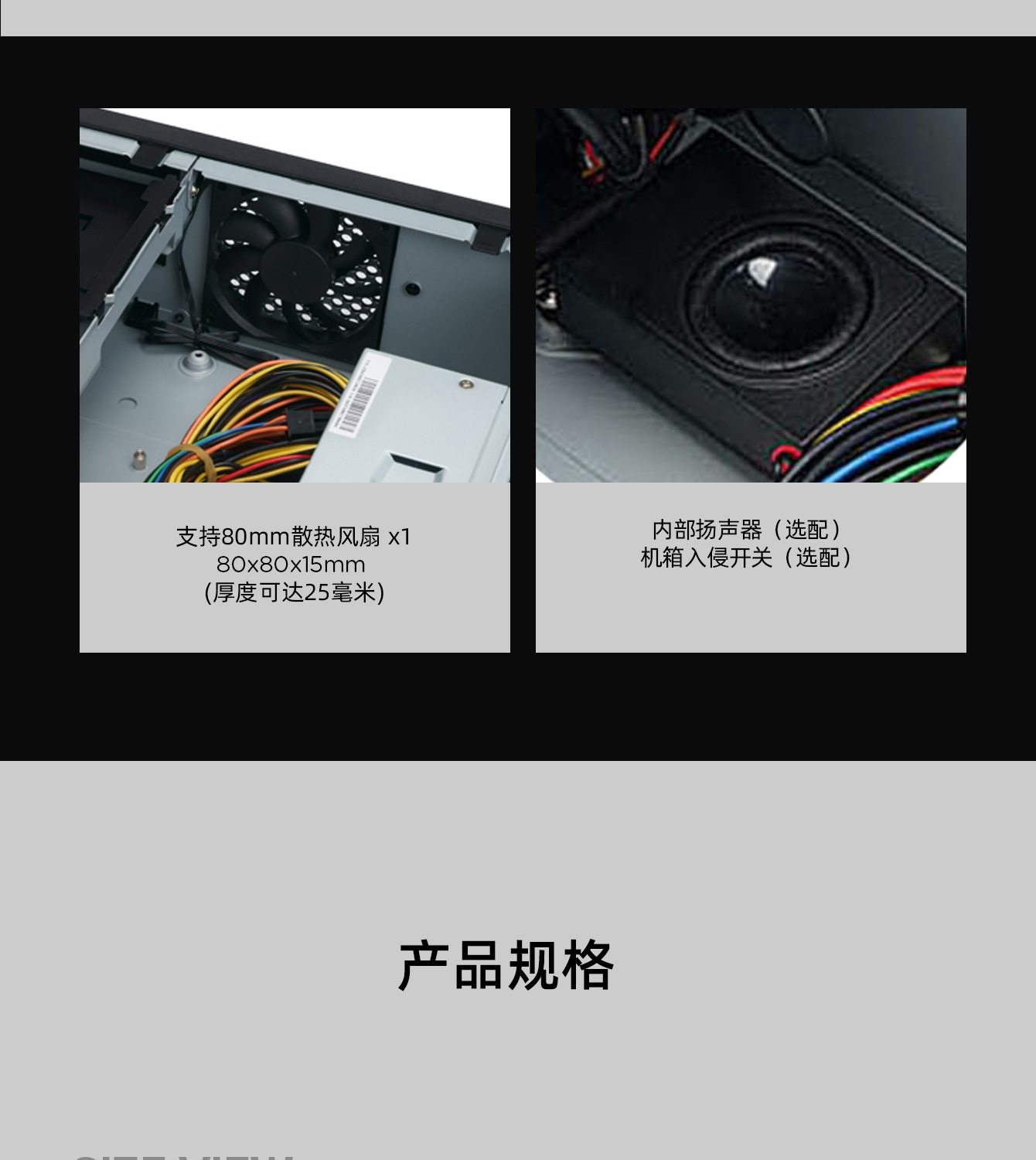

| Cooling Fan Support | Front | 1x8025mm(Fan Optional) |
| Top | / | |
| Rear | / | |
| Left Side | / | |
| Dust Cover | 0 | |
| Slots | *4 (Low Profile ) Screw-less PCI Slot Clips | |
| Carton & Logo | By OEM | |

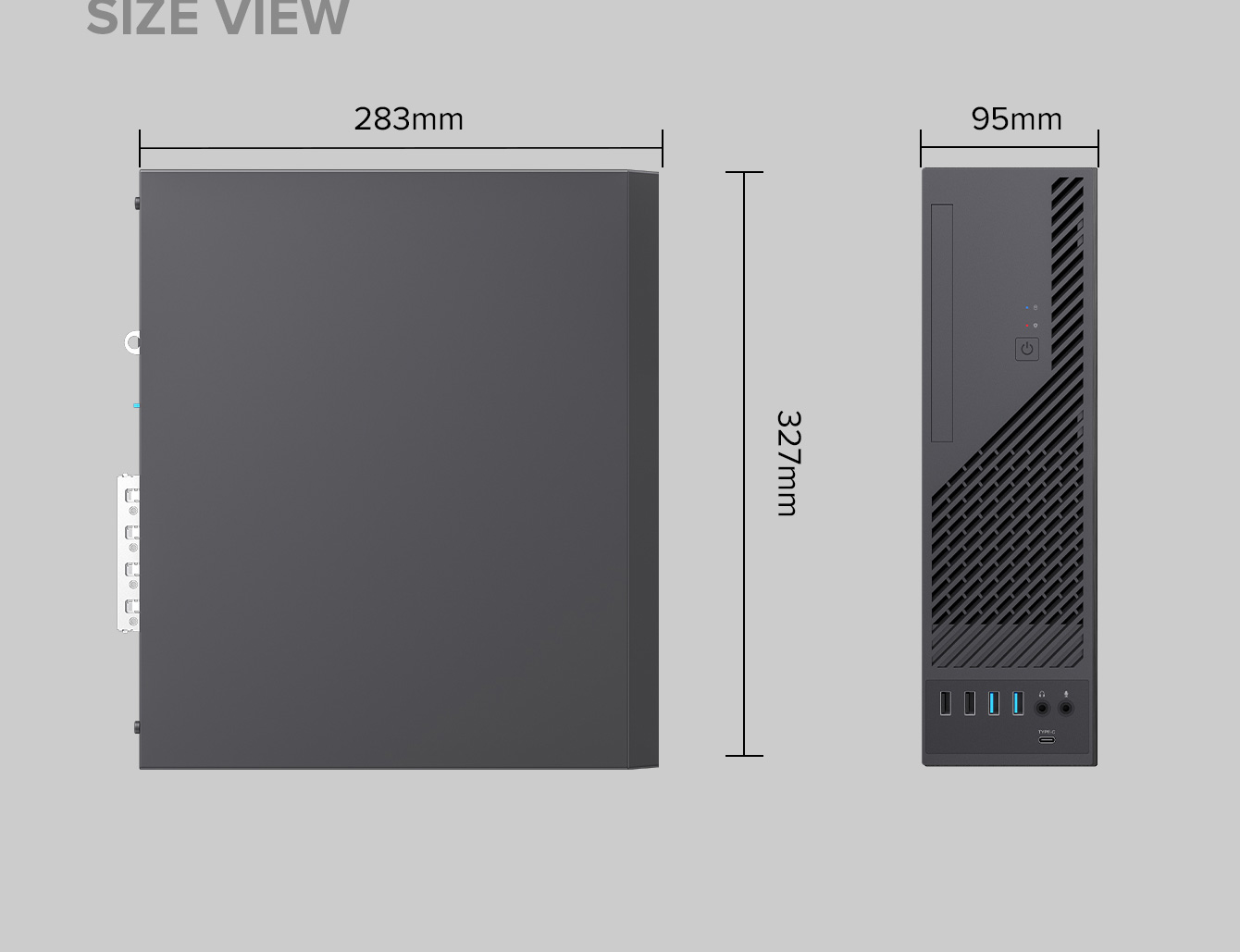

| Dimensions | Chassis | (L)266*(W)95*(H)327mm |
| Full Case (inc Fascia) | (L)283*(W)95*(H)327mm | |
| Carton | (L)392*(W)155*(H)341mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | Up to 251mm | |
| CPU Cooler Height | Up to 47mm | |
| PSU Length | Up to 175mm | |
