| Form Factor (Midi, Micro, Mini ITX, Full) | EATX, ATX,Micro, Mini ITX | |

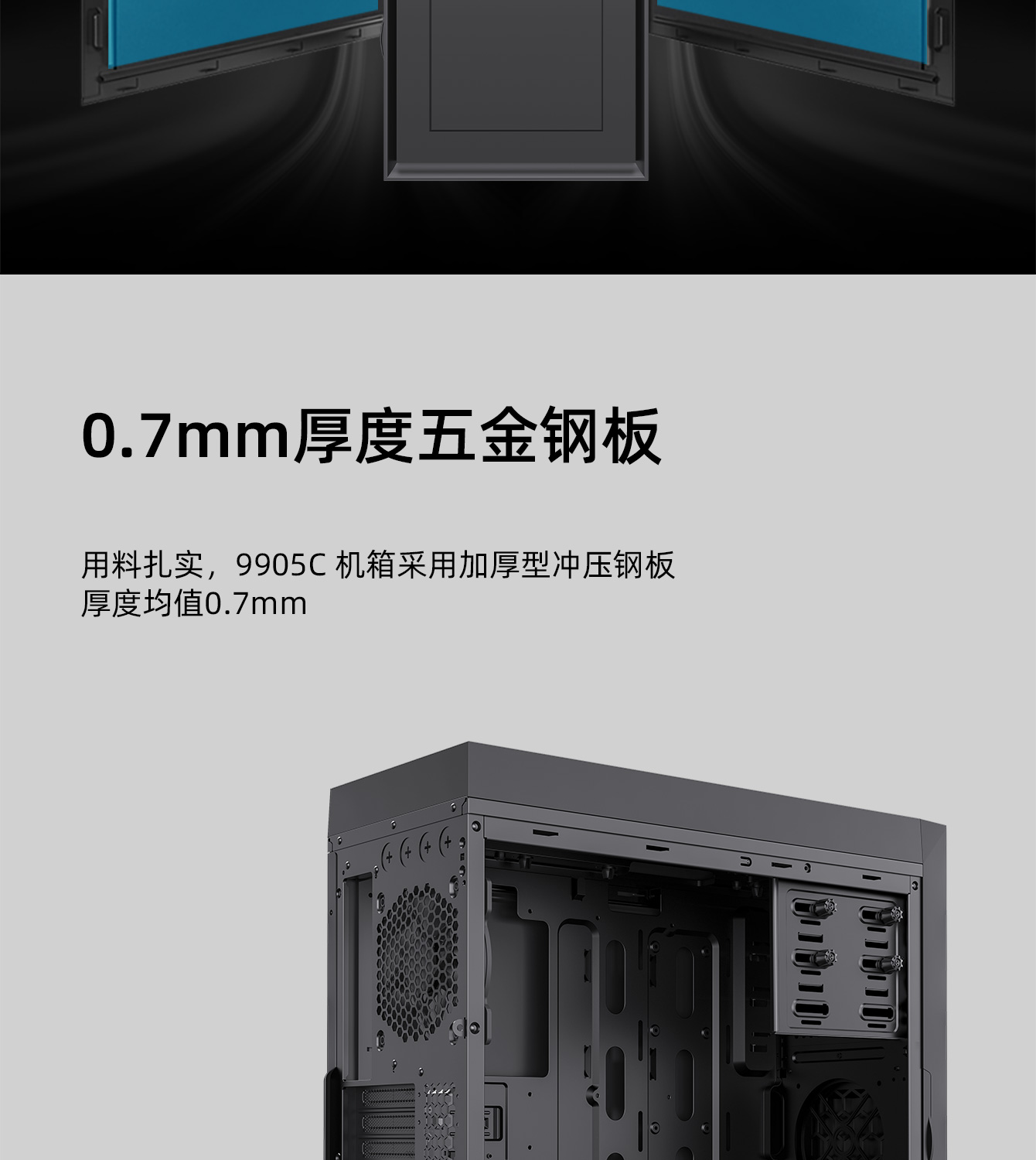

| Chassis | SPCC 0.7mm . Black painting interior | |
| PSU Form Factor | Bottom/ATX | |

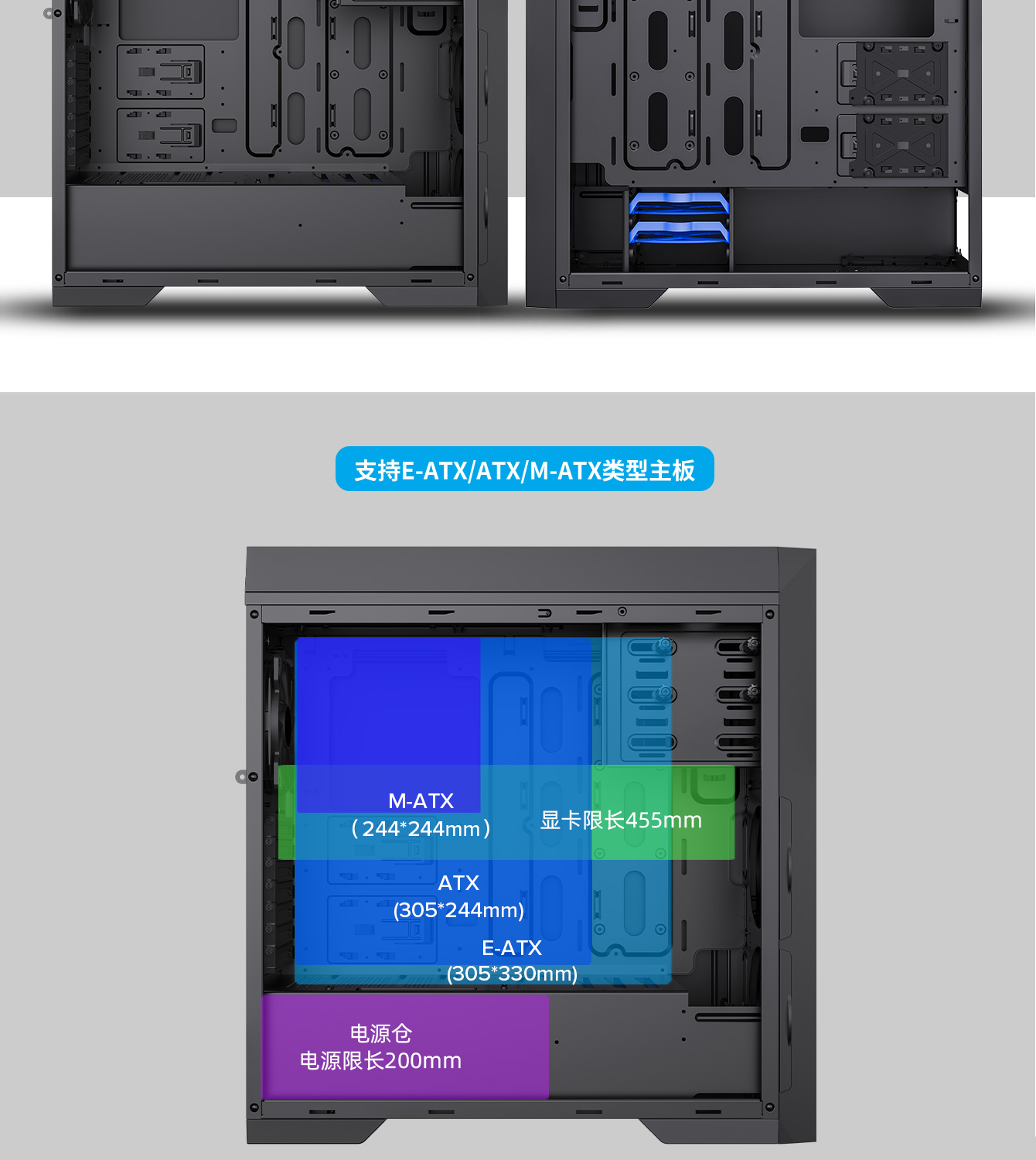

| M/B Form Factor | EATX(280*305)、ATX、M-ATX、ITX | |
| Front Panel | ABS | |
| Top Panel | ABS,Mesh | |

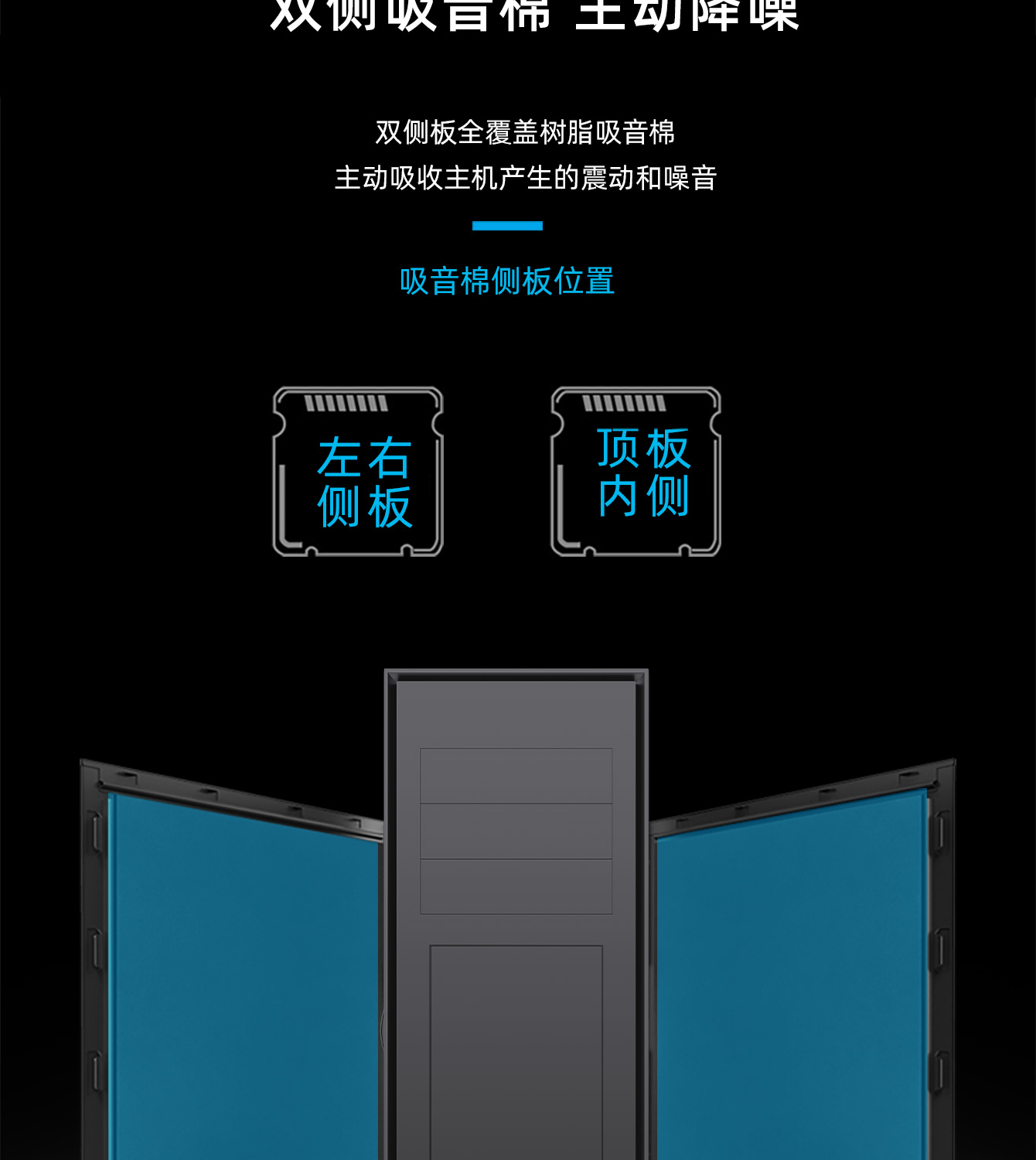

| Side Panel | Left | metal cover |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *3 |
| 3.5" | *0 | |

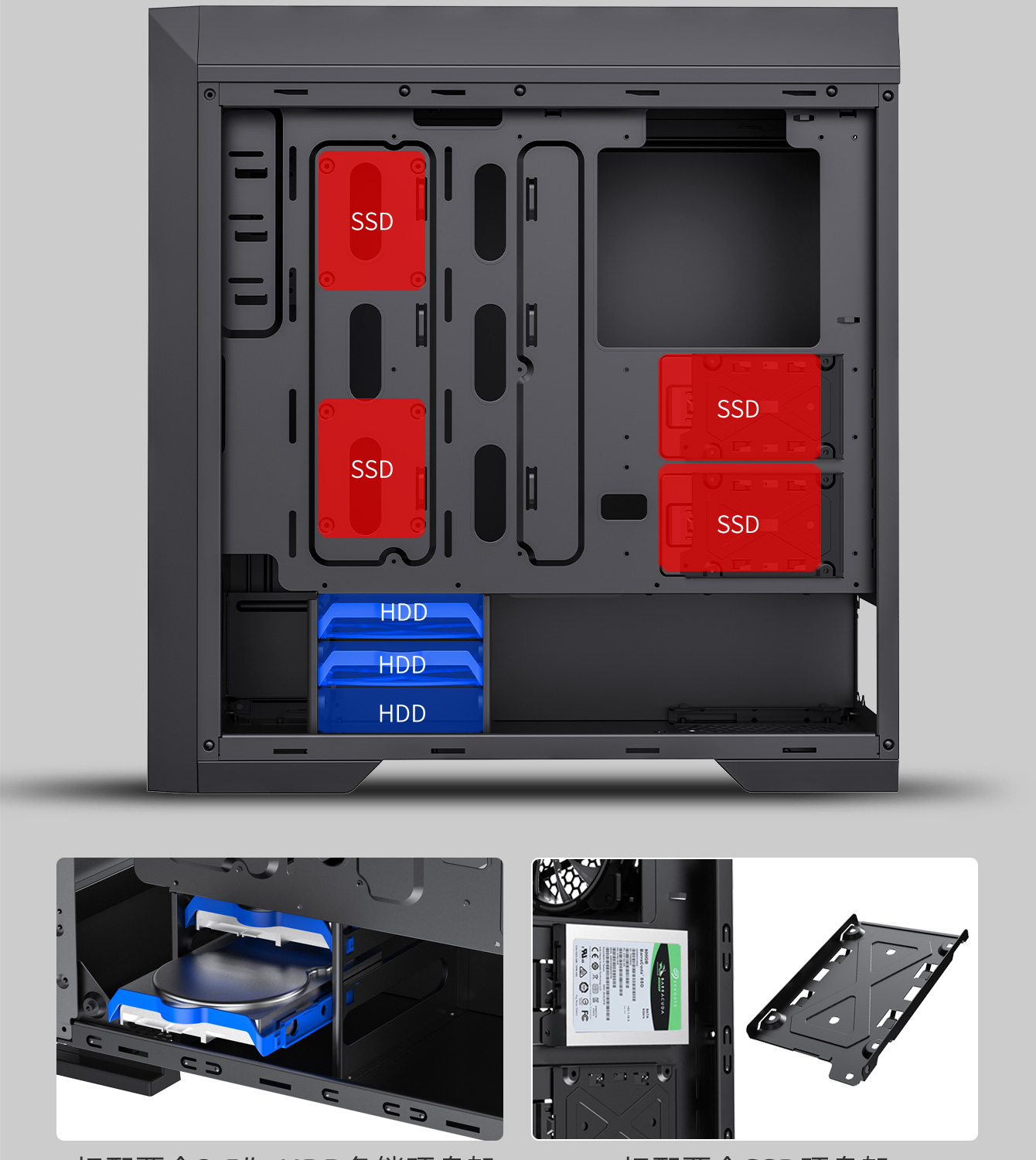

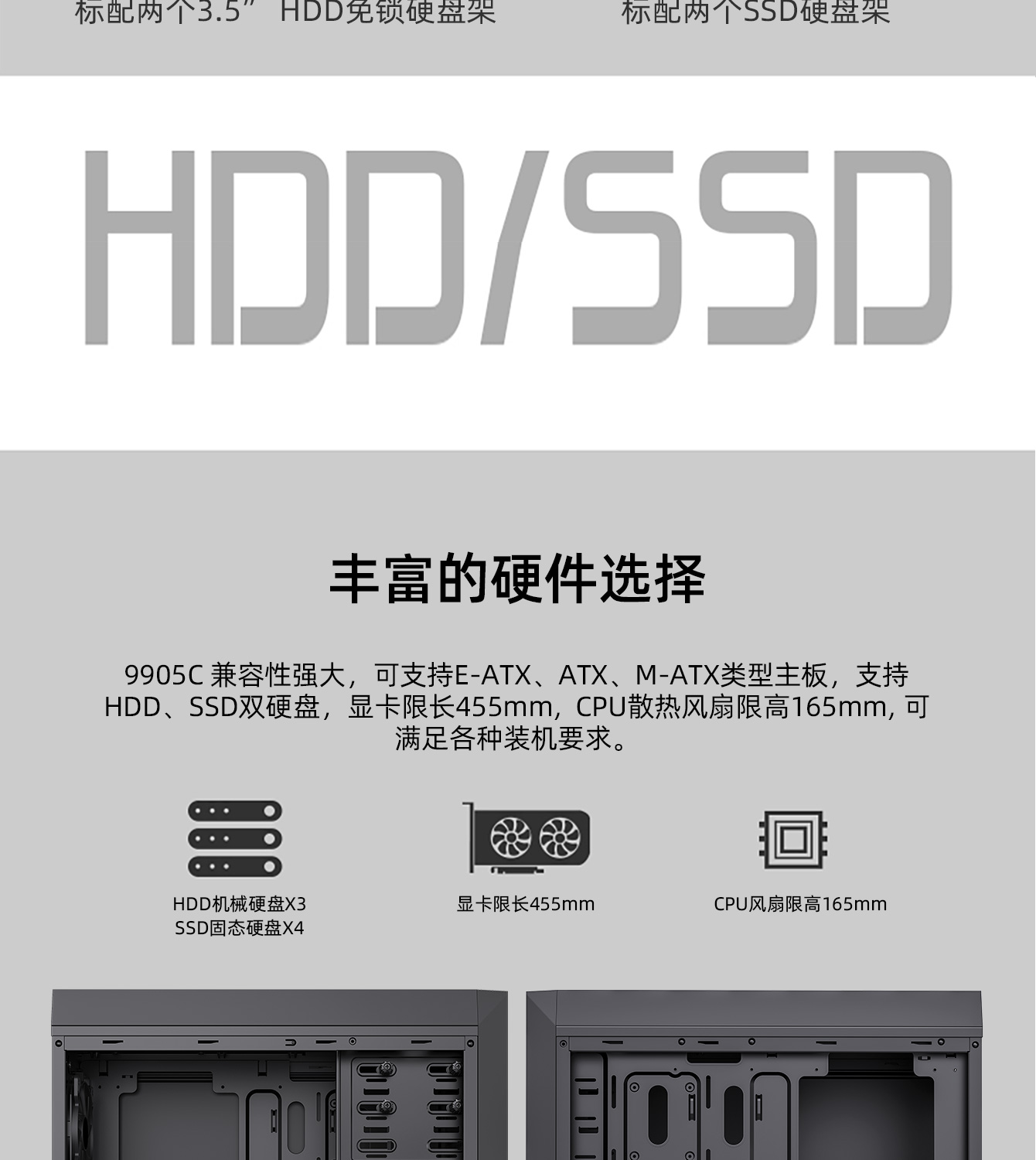

| Internal Drive Bay(s) | 3.5" (HDD) | *8 |
| 2.5" (SSD) | *2 | |

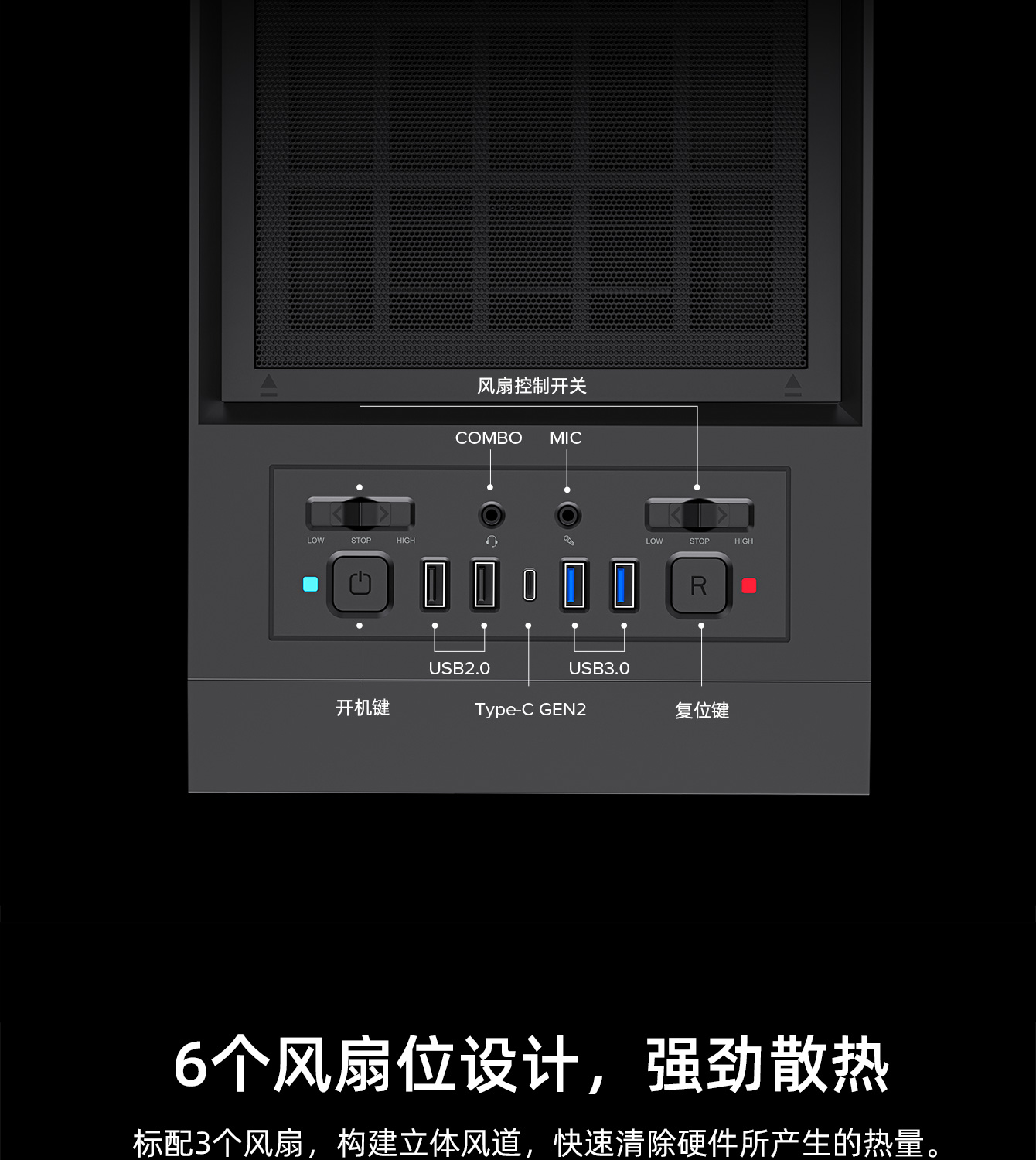

| I/O | Buttons | *2 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1 | |
| Type C (GEN2) | *1 | |

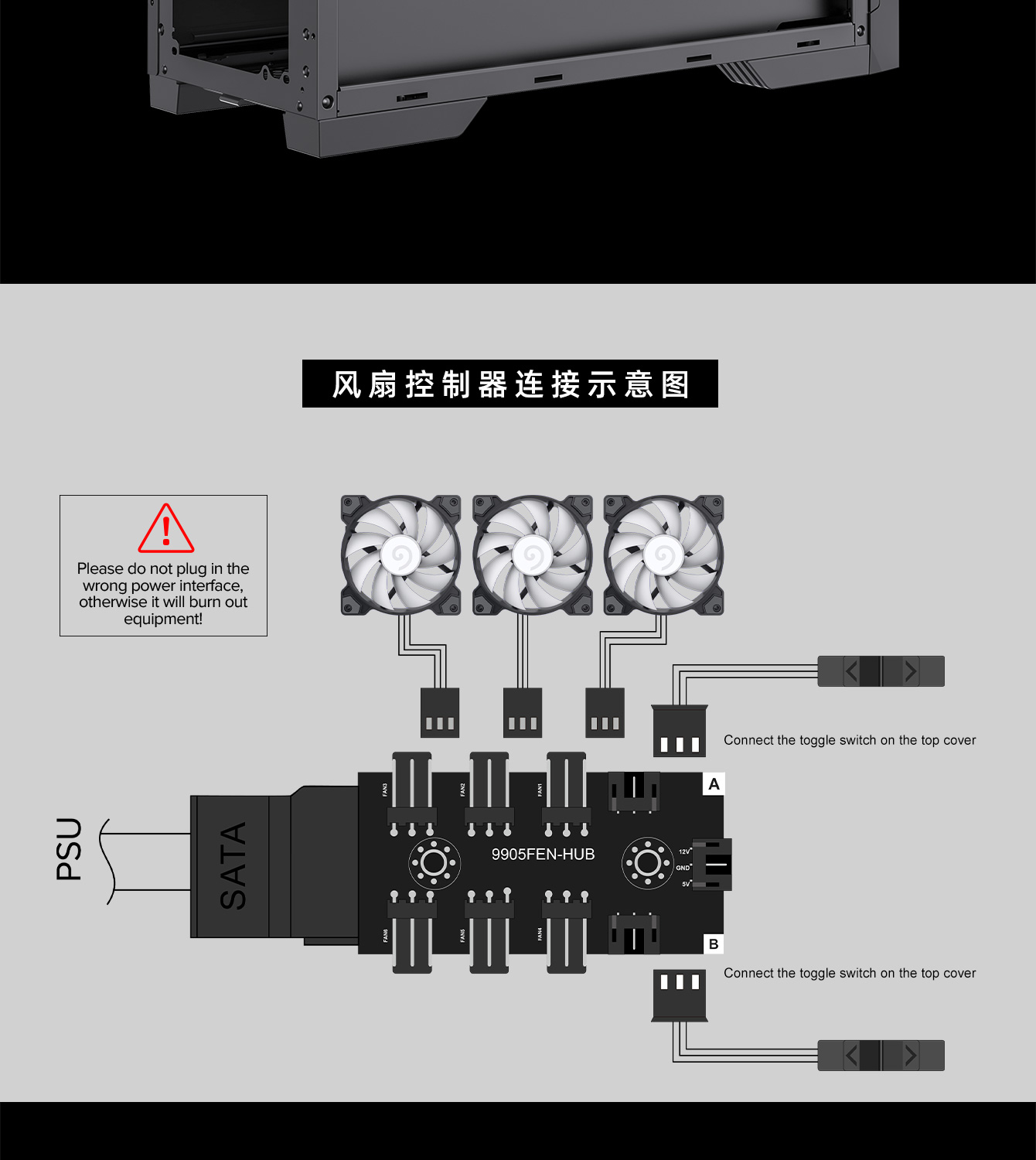

| Fan Controller | *2 | |

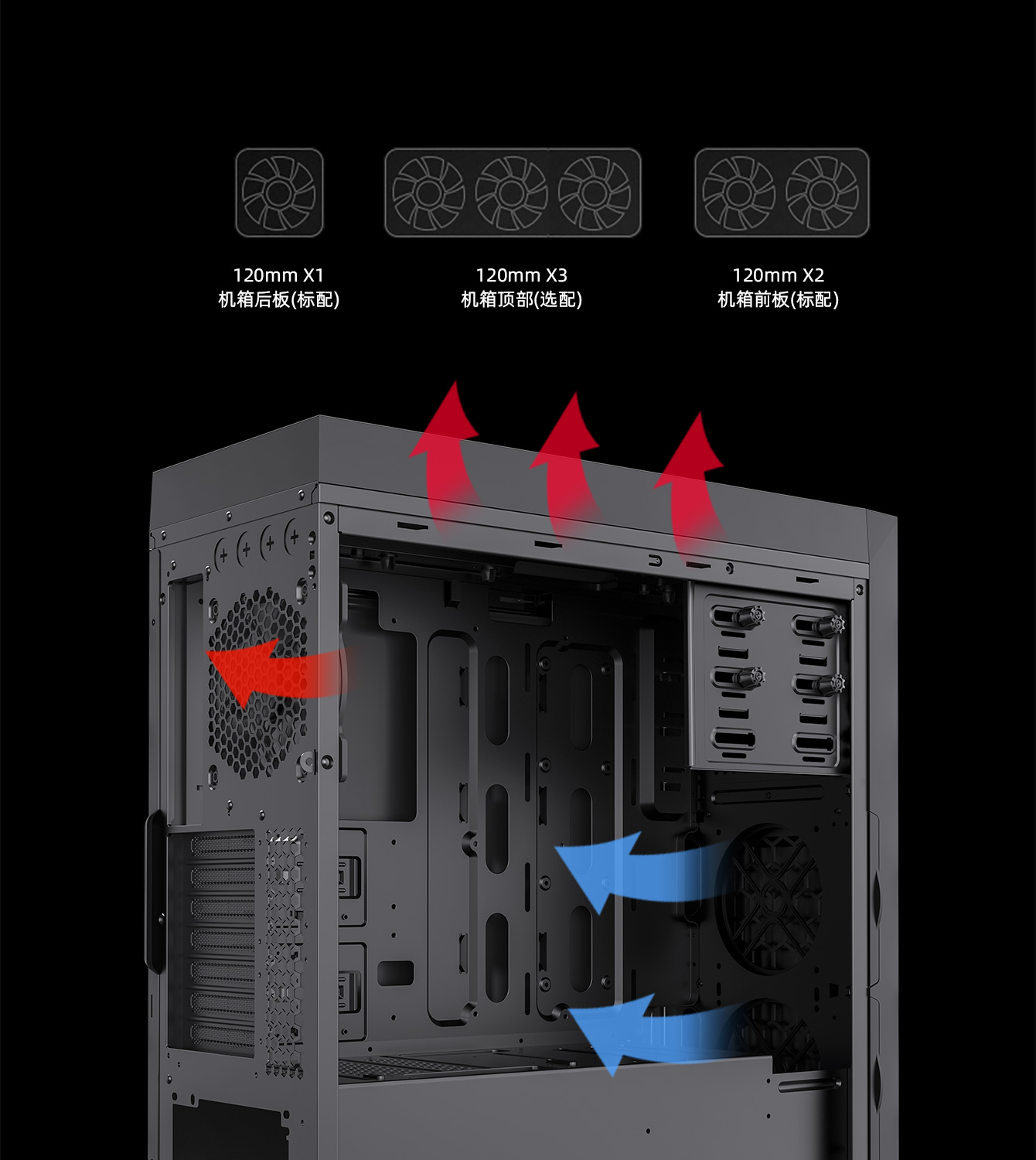

| Cooling Fan Support | Front | 2x120mm(Fan included) |
| Top | 3x120mm ,2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan included) | |
| Left Side | 0 | |
| Bottom | 1x120mm (Fan optional) | |

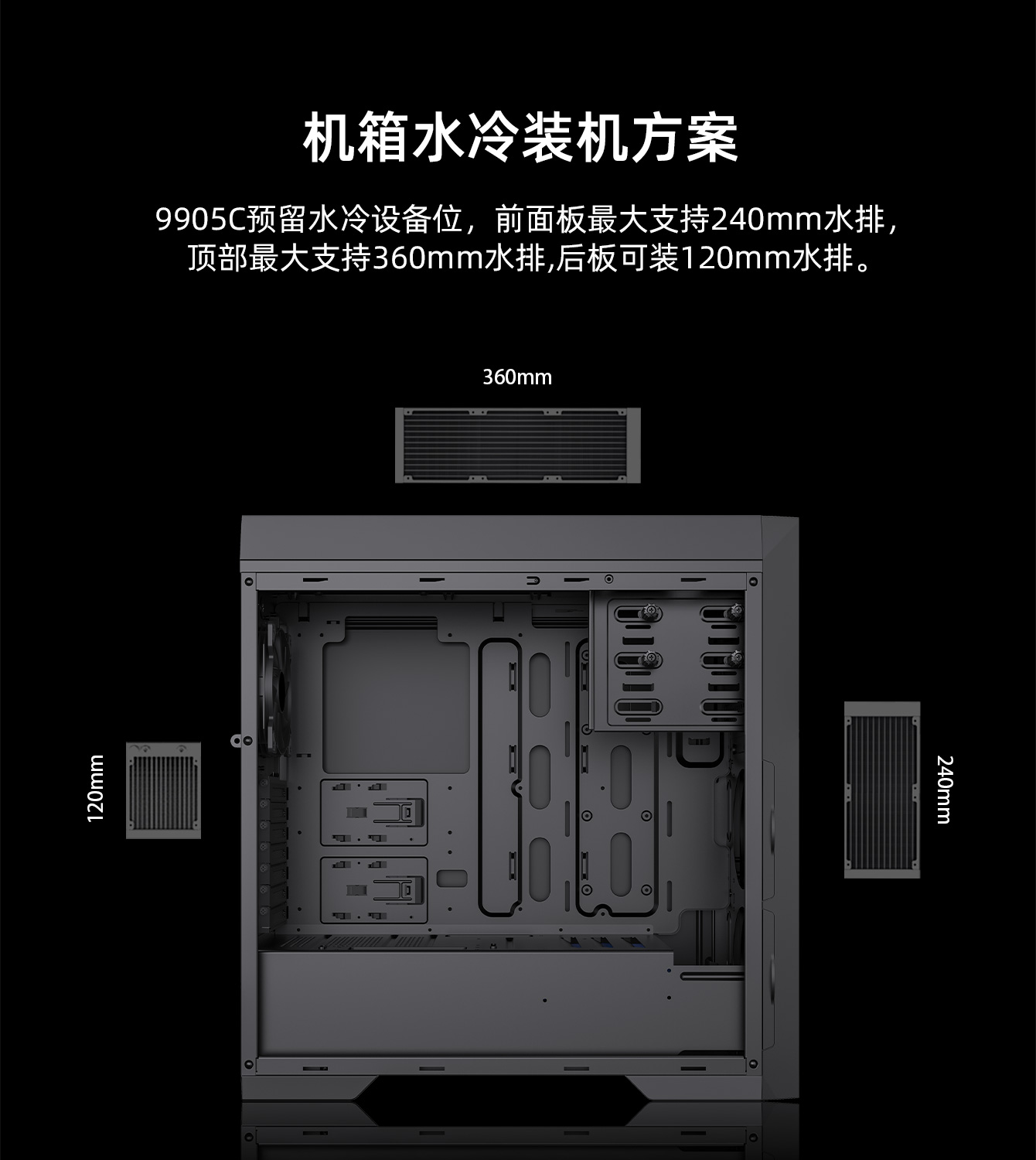

| Water Cooling Support (Radiator Size) | Front | 120mm*1,240mm*1 |

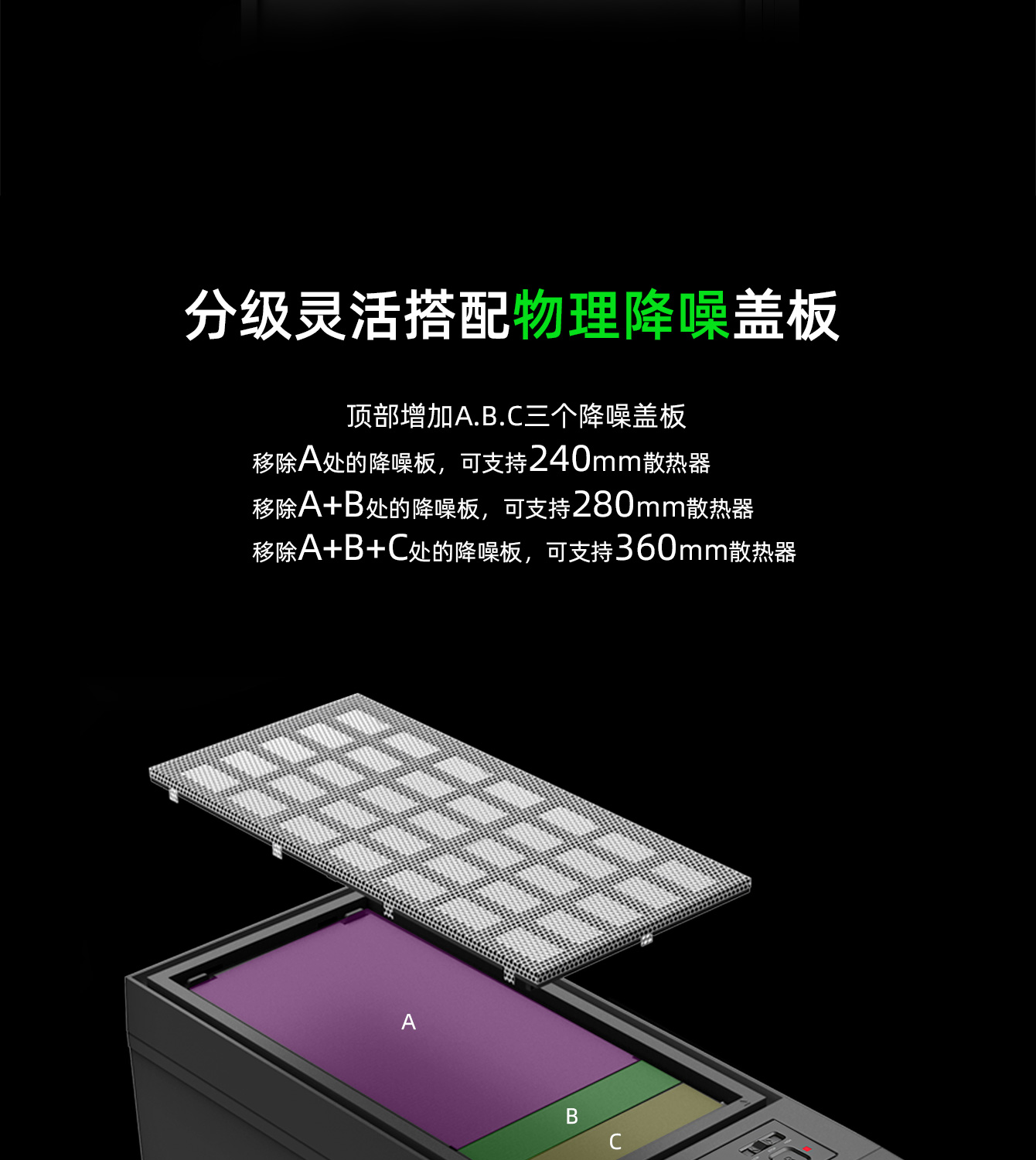

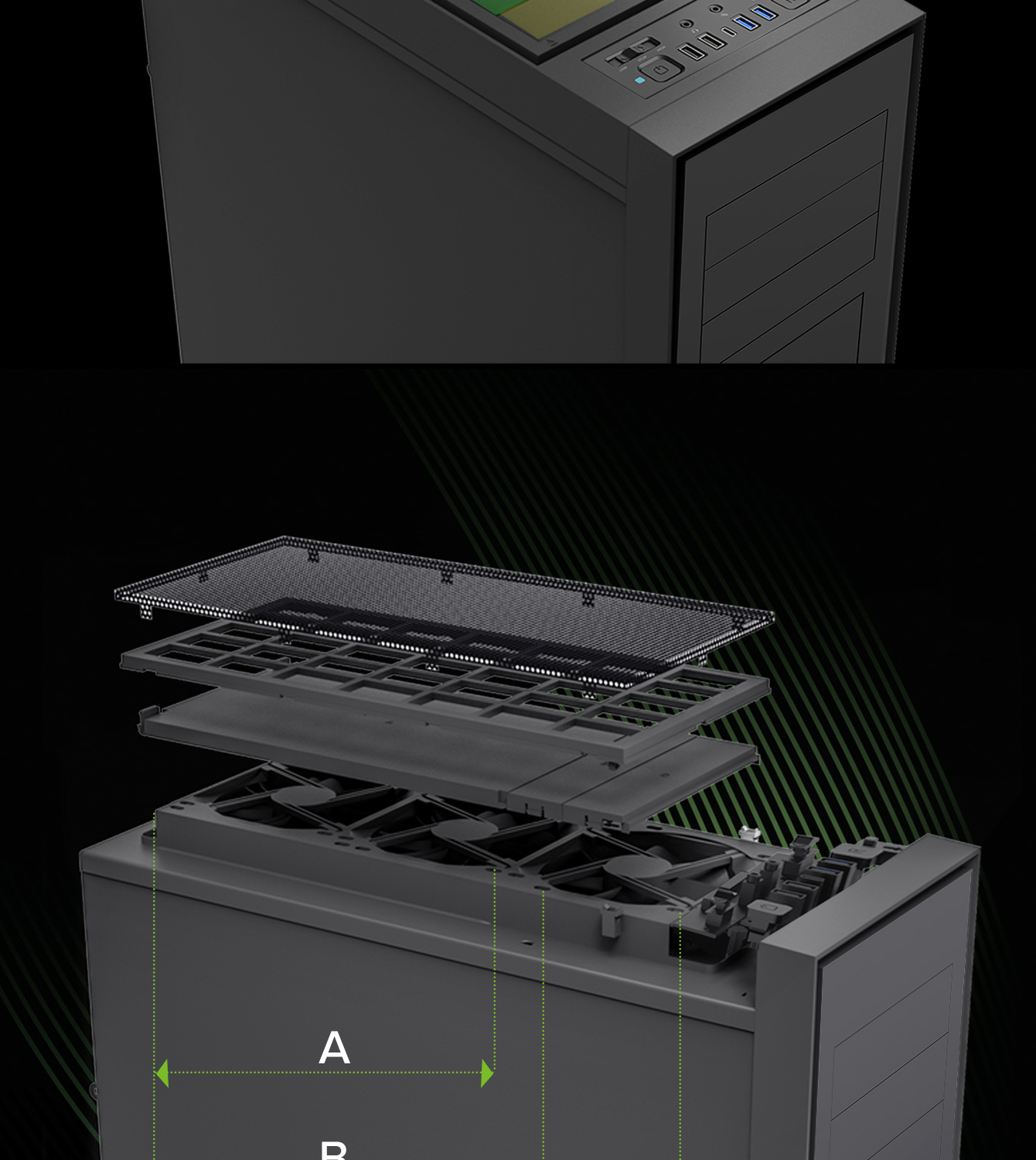

| Top | 120mm*1, 240mm*1,140mm*1,280mm*1,360mm*1 | |
| Rear | 120mm*1 | |

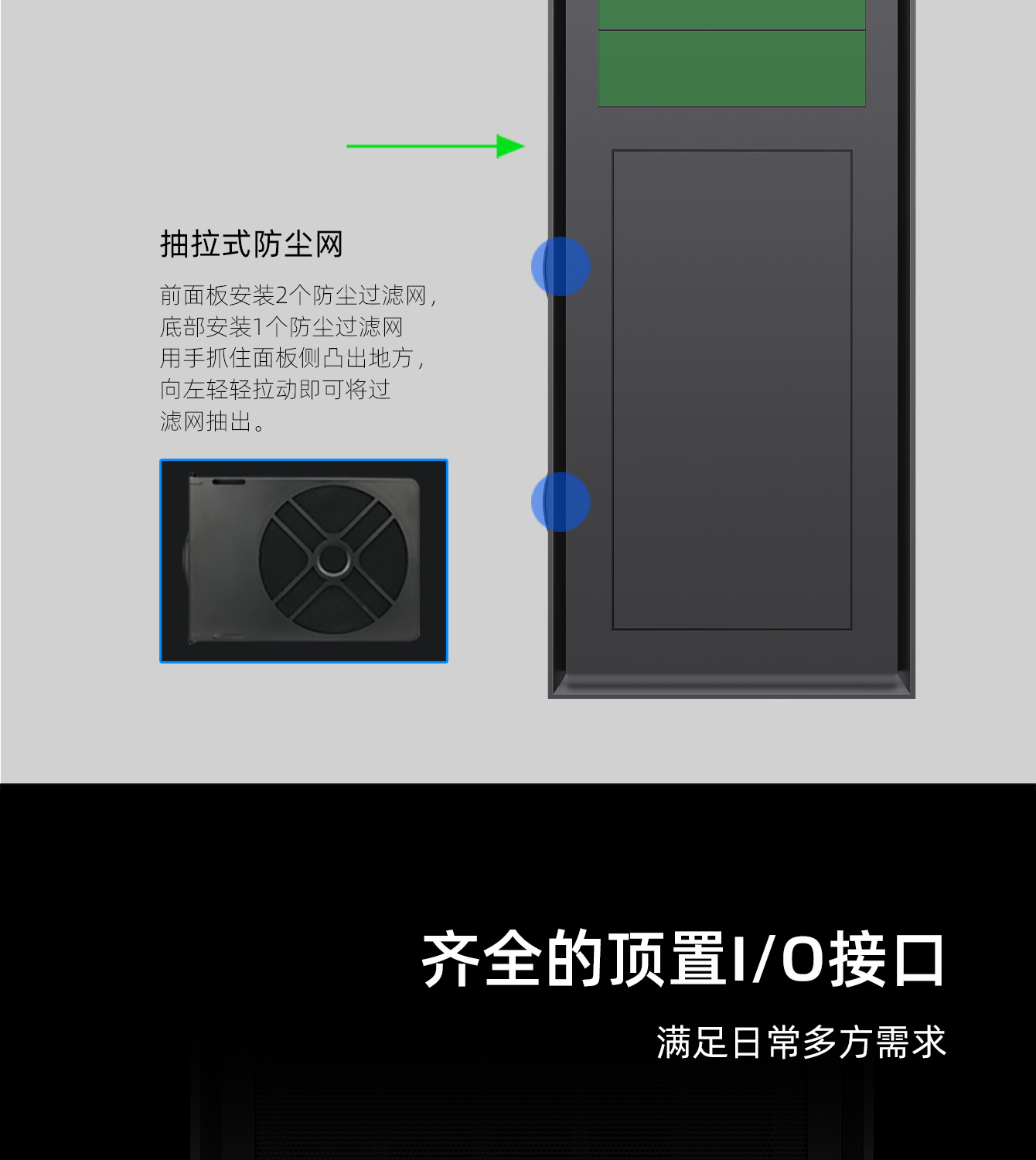

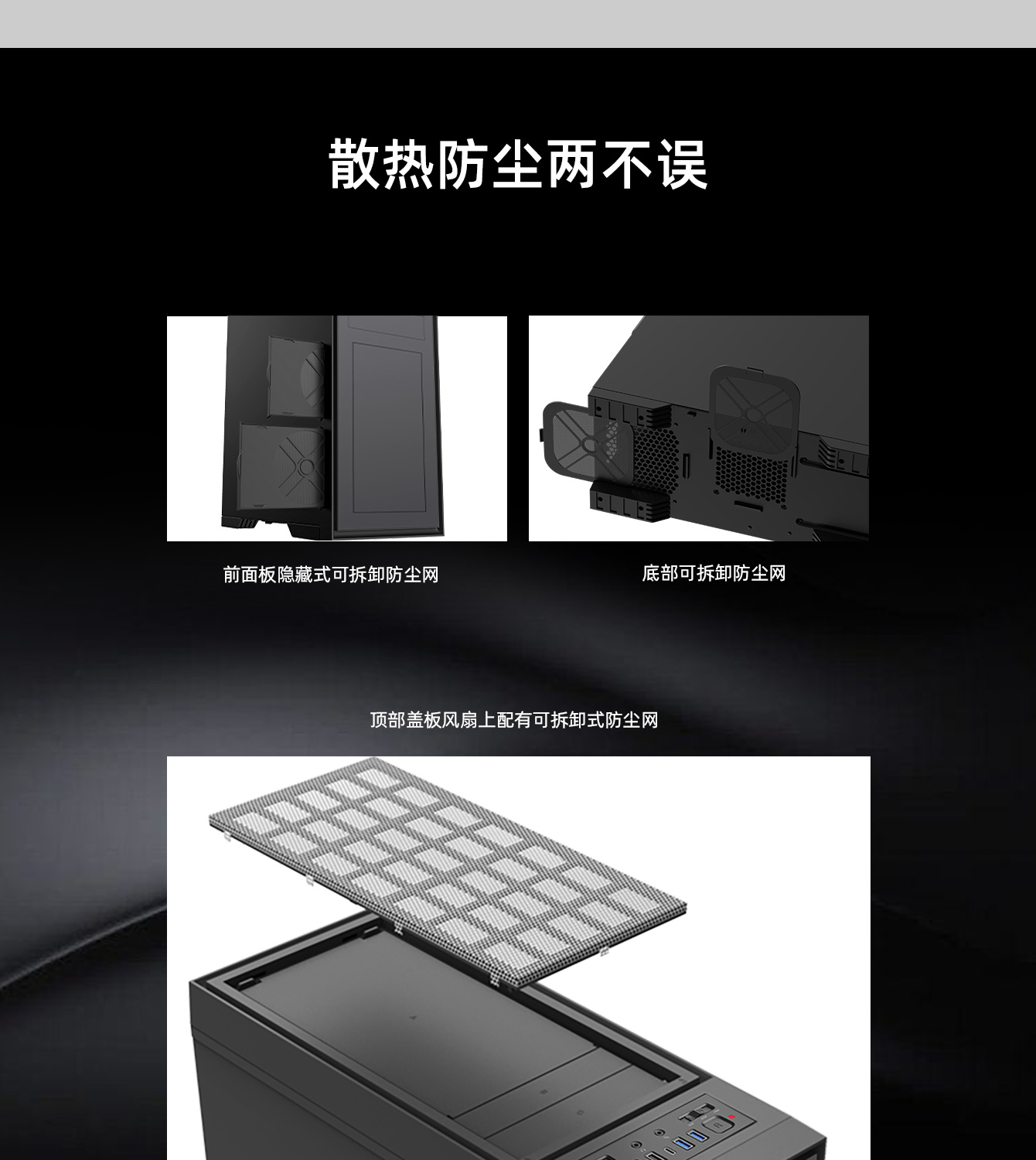

| Dust Cover | Bottom ,top cover with dust filter | |

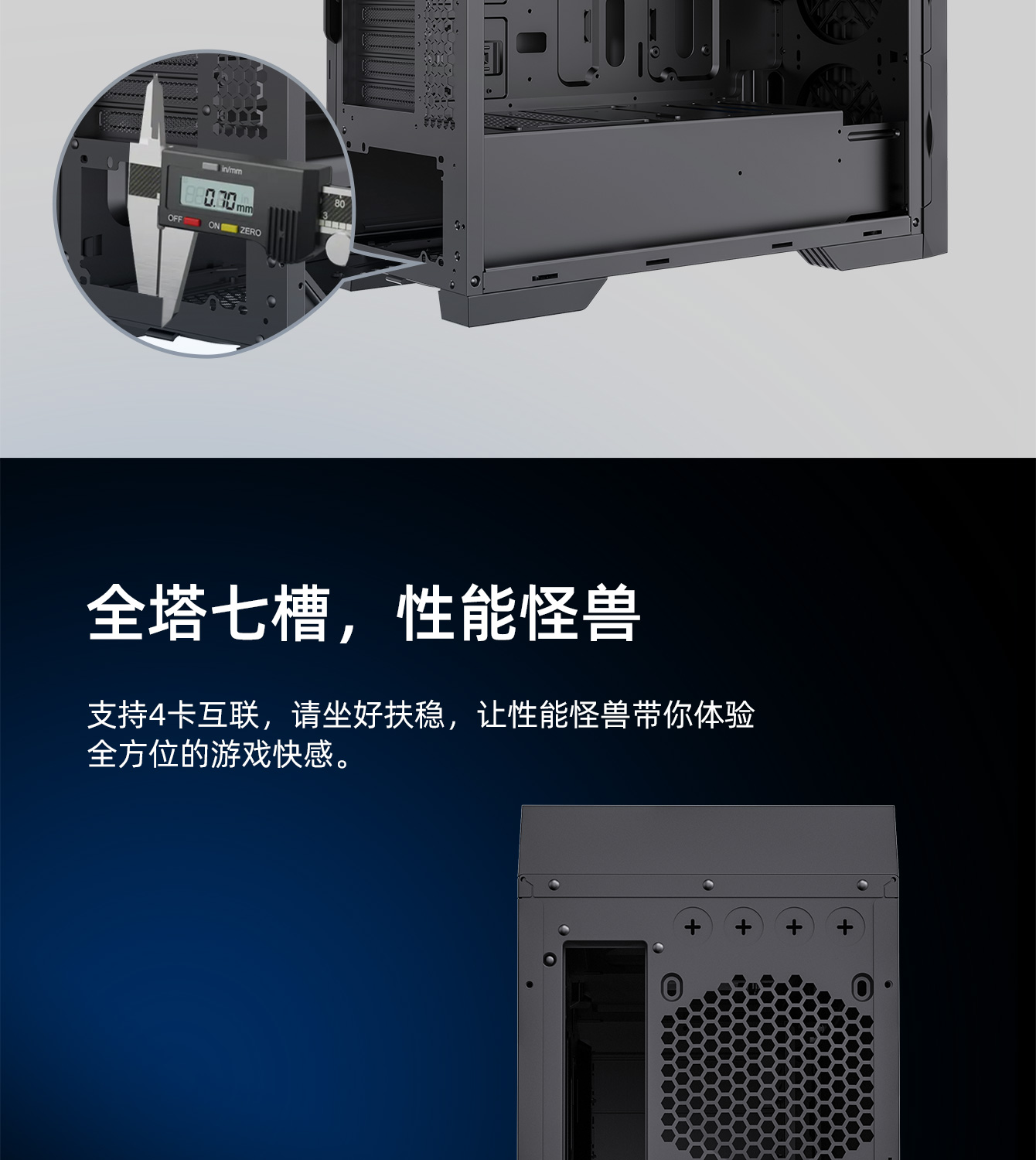

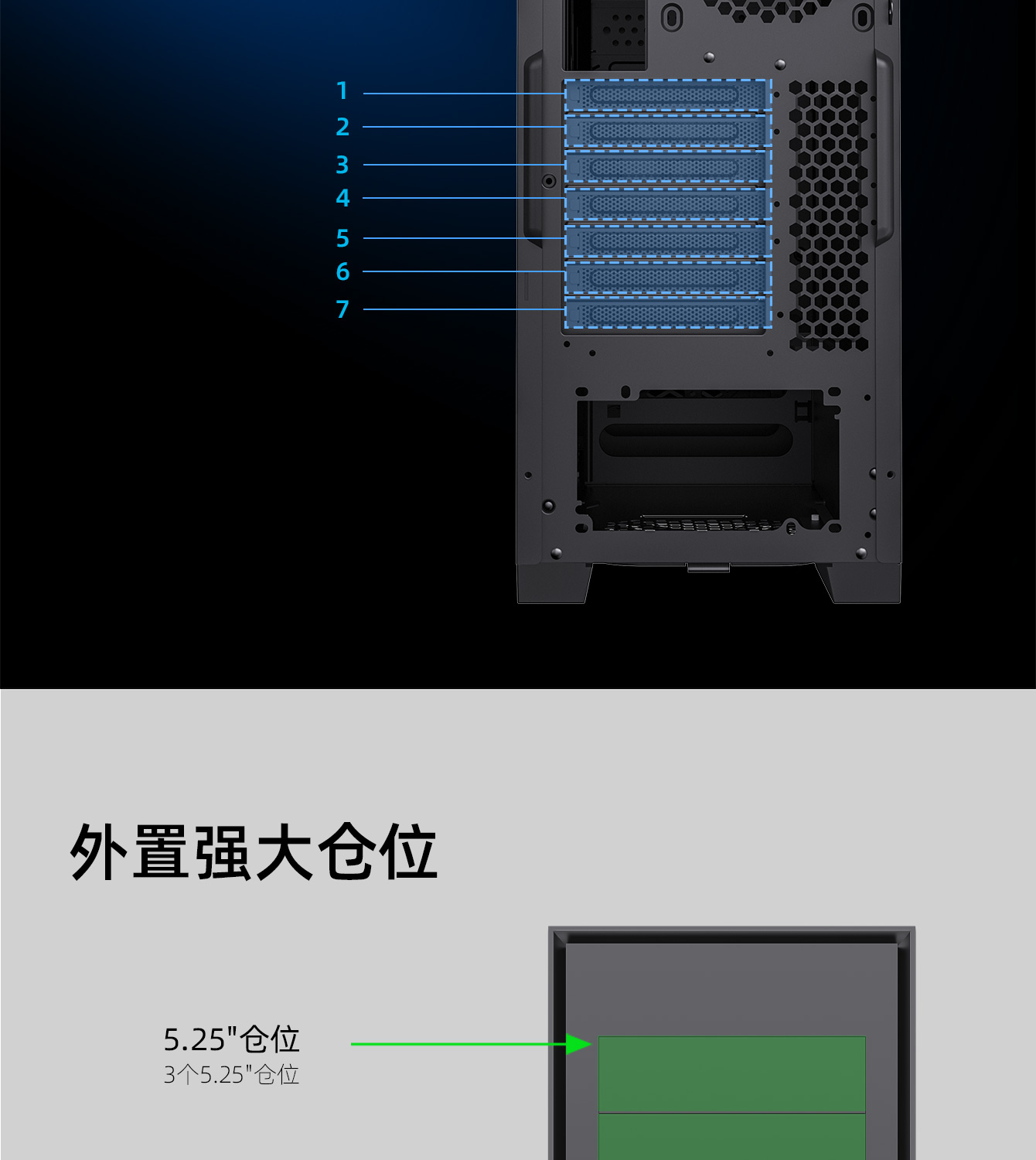

| Slots | *8 | |
| Carton & Logo | OEM | ODM | |

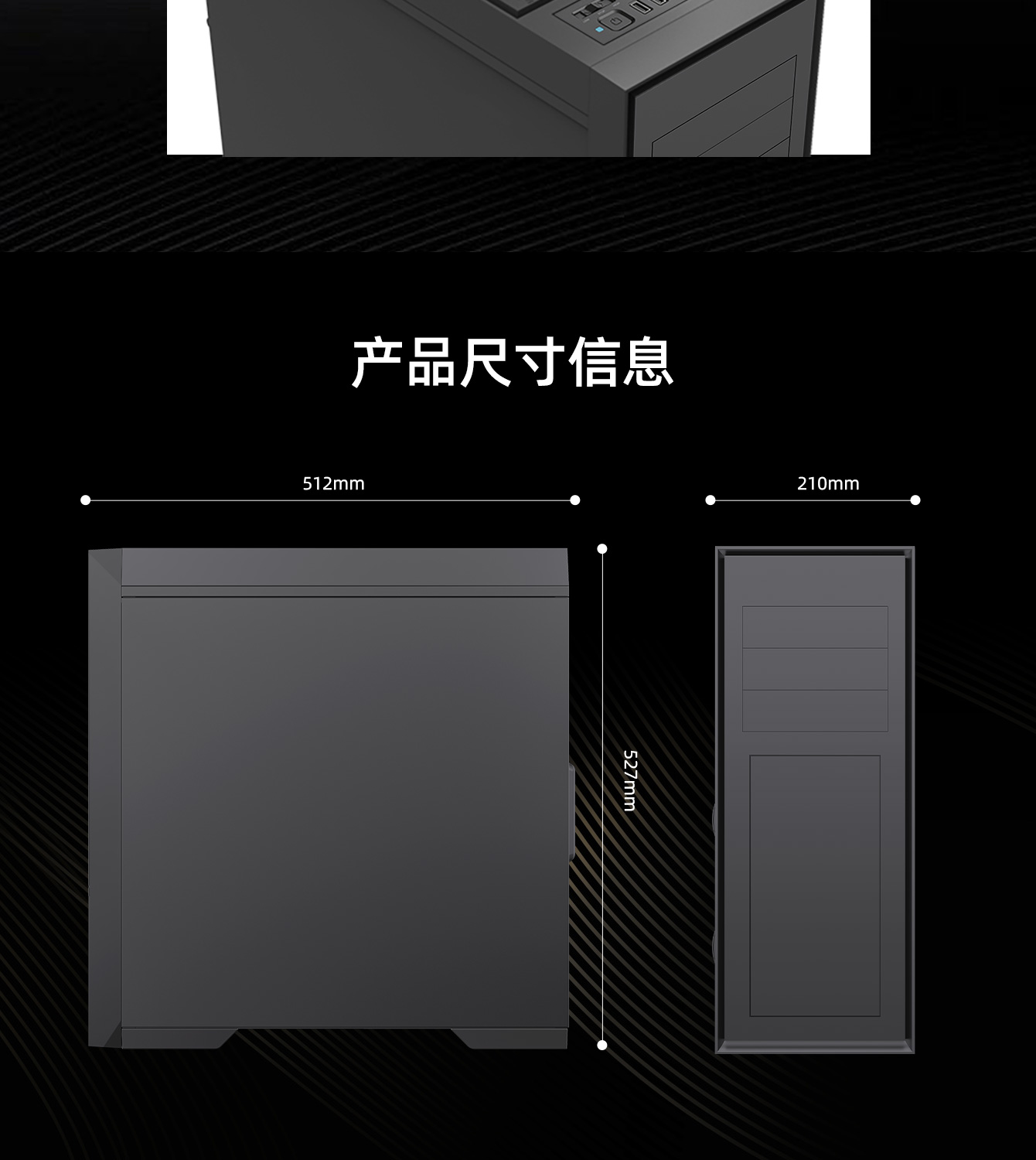

| Dimensions | Chassis | (L)470*(W)210*(H)465mm |
| Full Case (inc Fascia) | (L)512*(W)212*（H)487mm | |
| Carton | (L)579*(W)286*（H)597mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | 420mm | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 20mm | |
