| Form Factor | Mini Tower | |
| Chassis Material | SPCC 0.4mm | |
| PSU Form Factor | Bottom/ATX | |

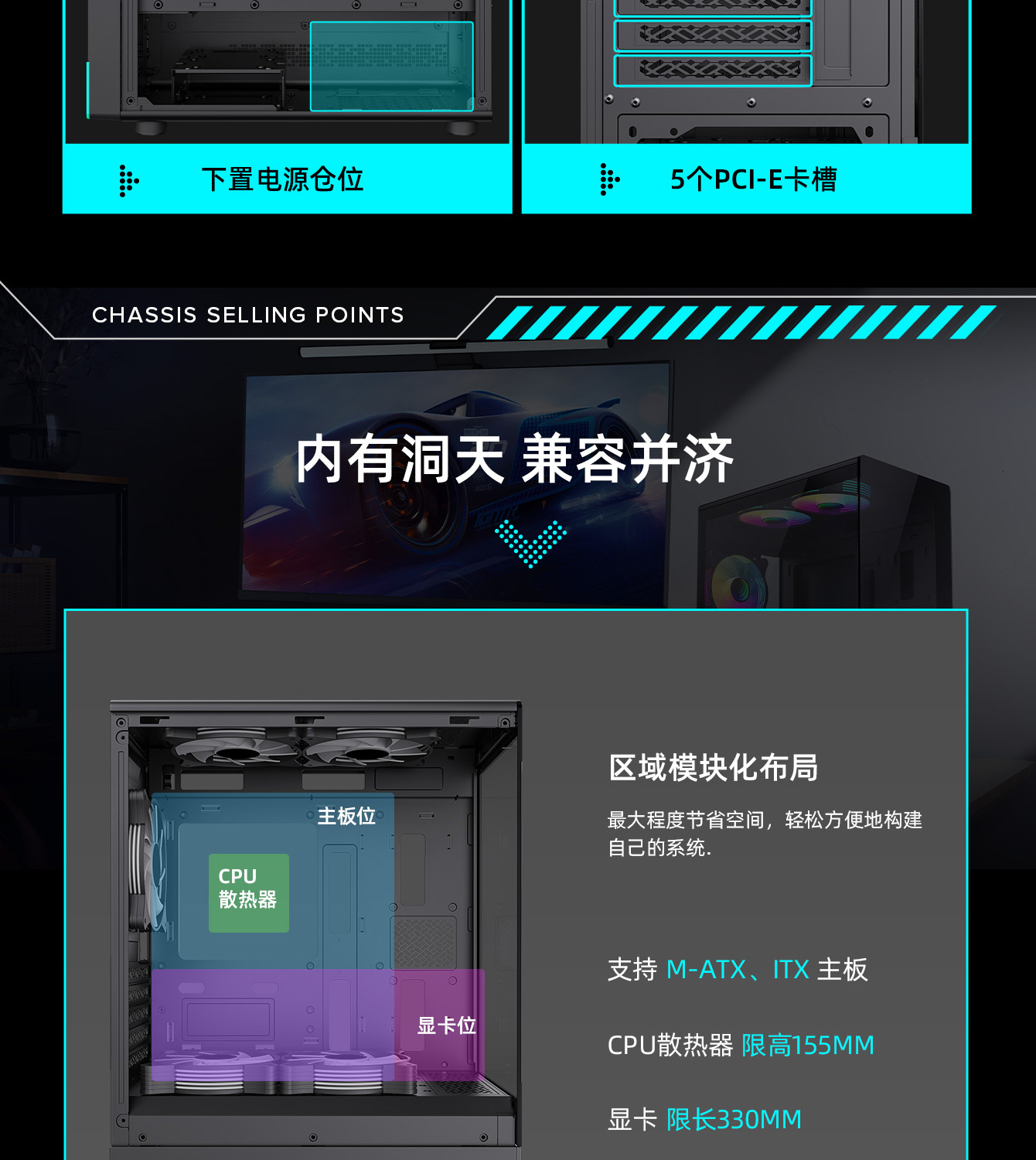

| M/B Form Factor | M-ATX、ITX | |
| Front Panel | Tempered Glass | |
| Top Panel | N/A | |

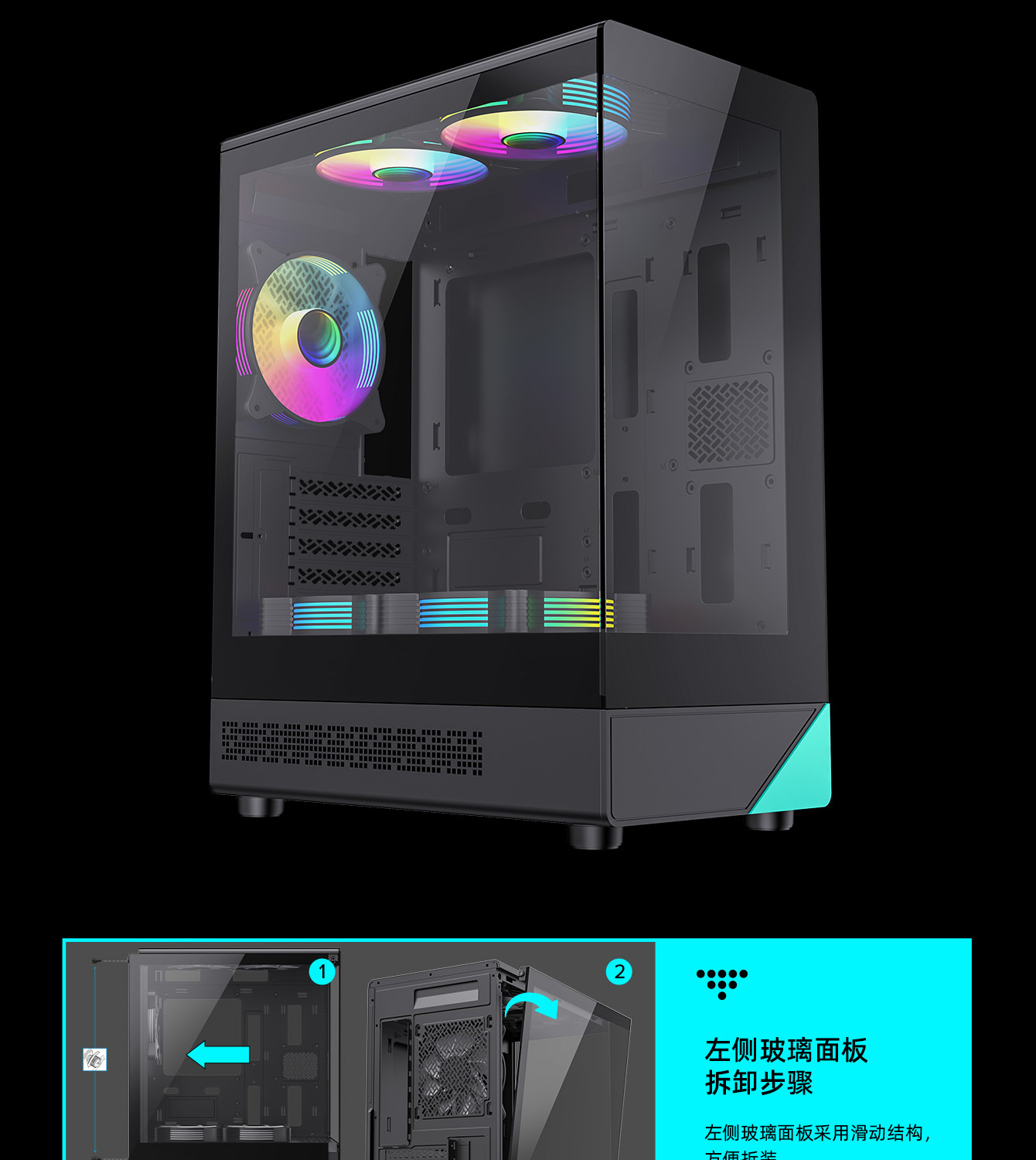

| Side Panel | Left | Tempered Glass |
| Right | Metal Cover | |
| External Drive Bay(s) | 5.25" (ODD) | N/A |
| 3.5" | N/A | |

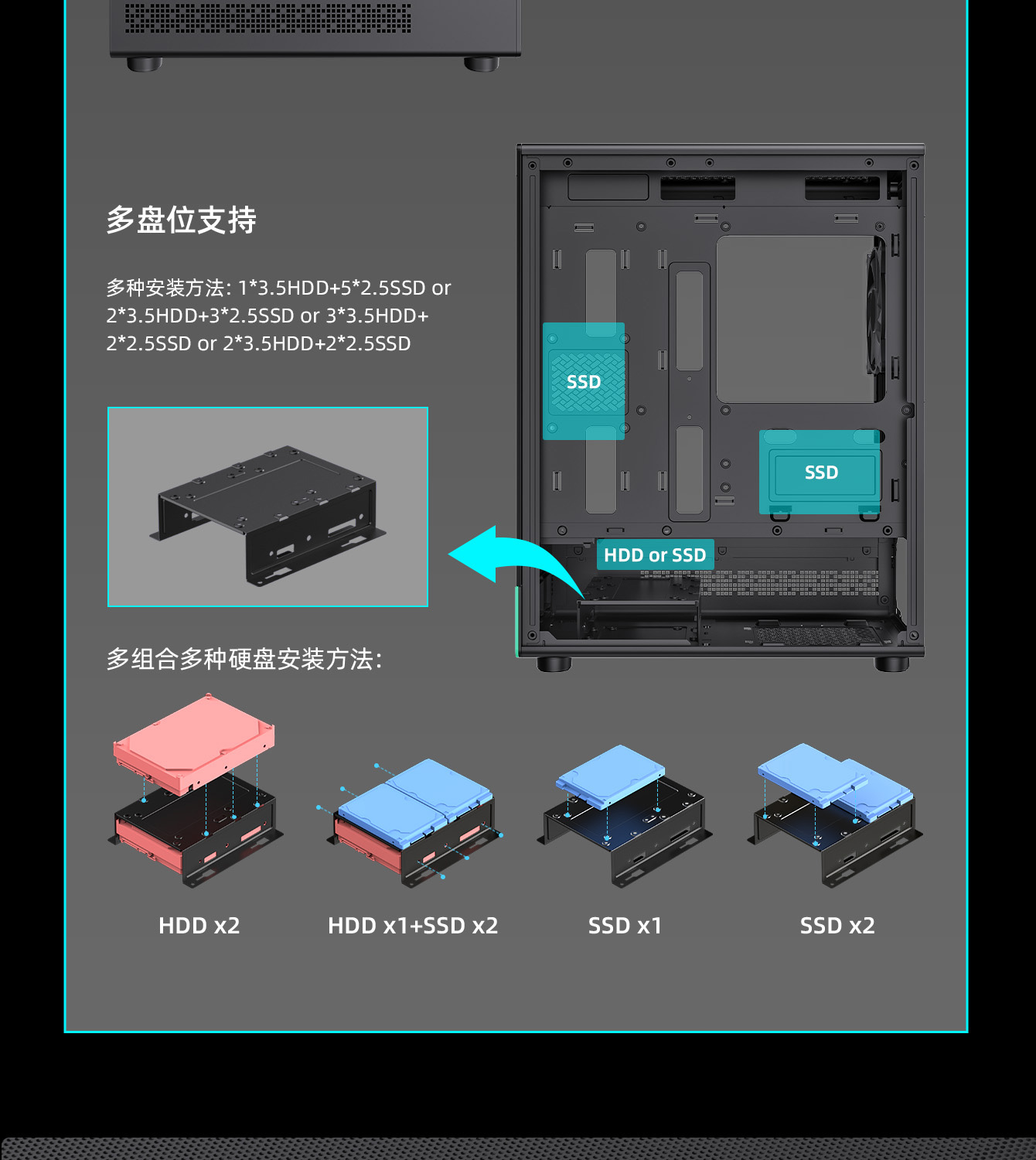

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
| 2.5" (SSD) | ||

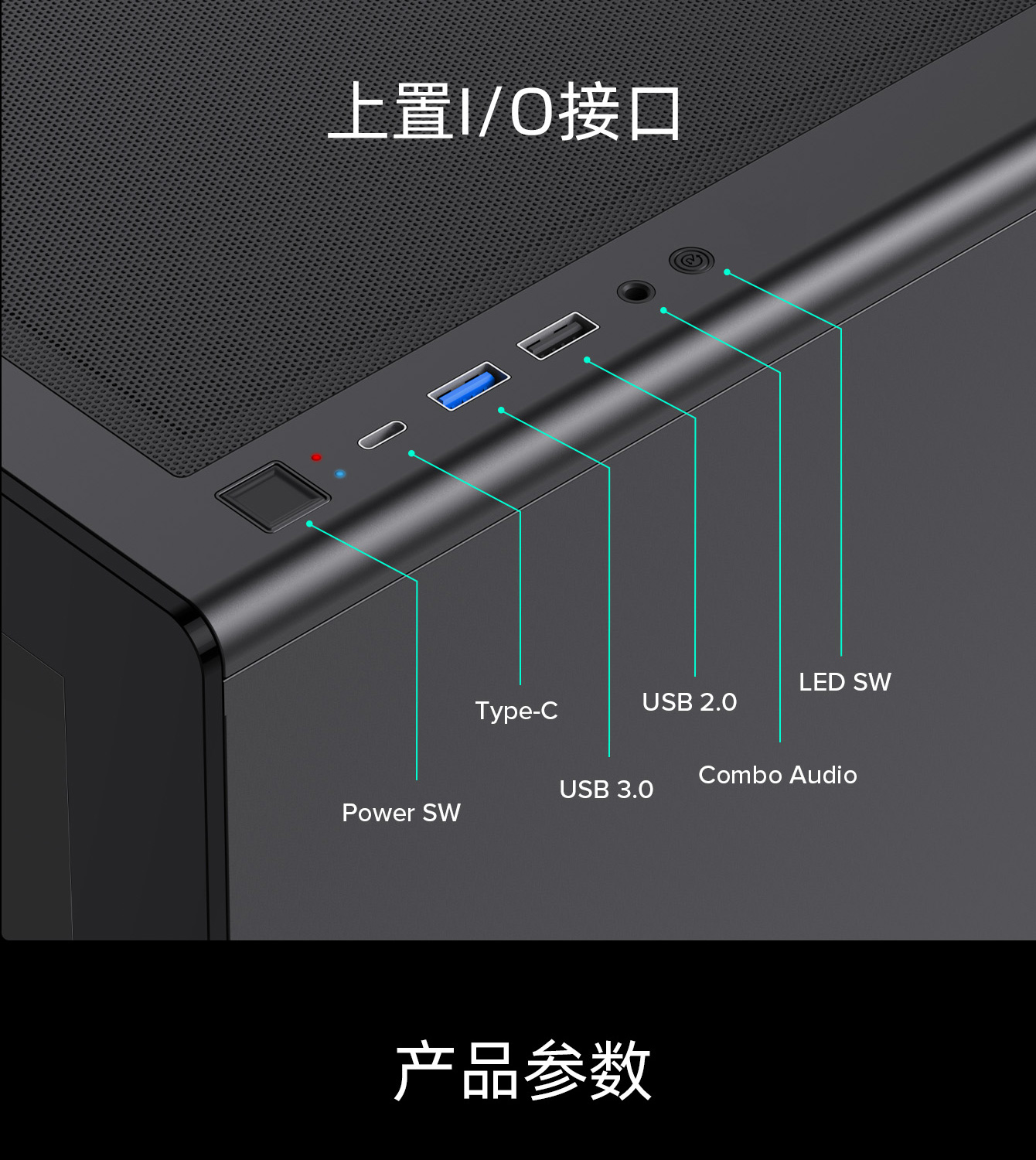

| I/O | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) | *1 | |
| Combo Audio Support | *1(CTIA) | |
| USB3.0 Type C | *1(2.0 or GEN2 or GEN2*2) | |
| P-Lock | *1 (Optional) | |

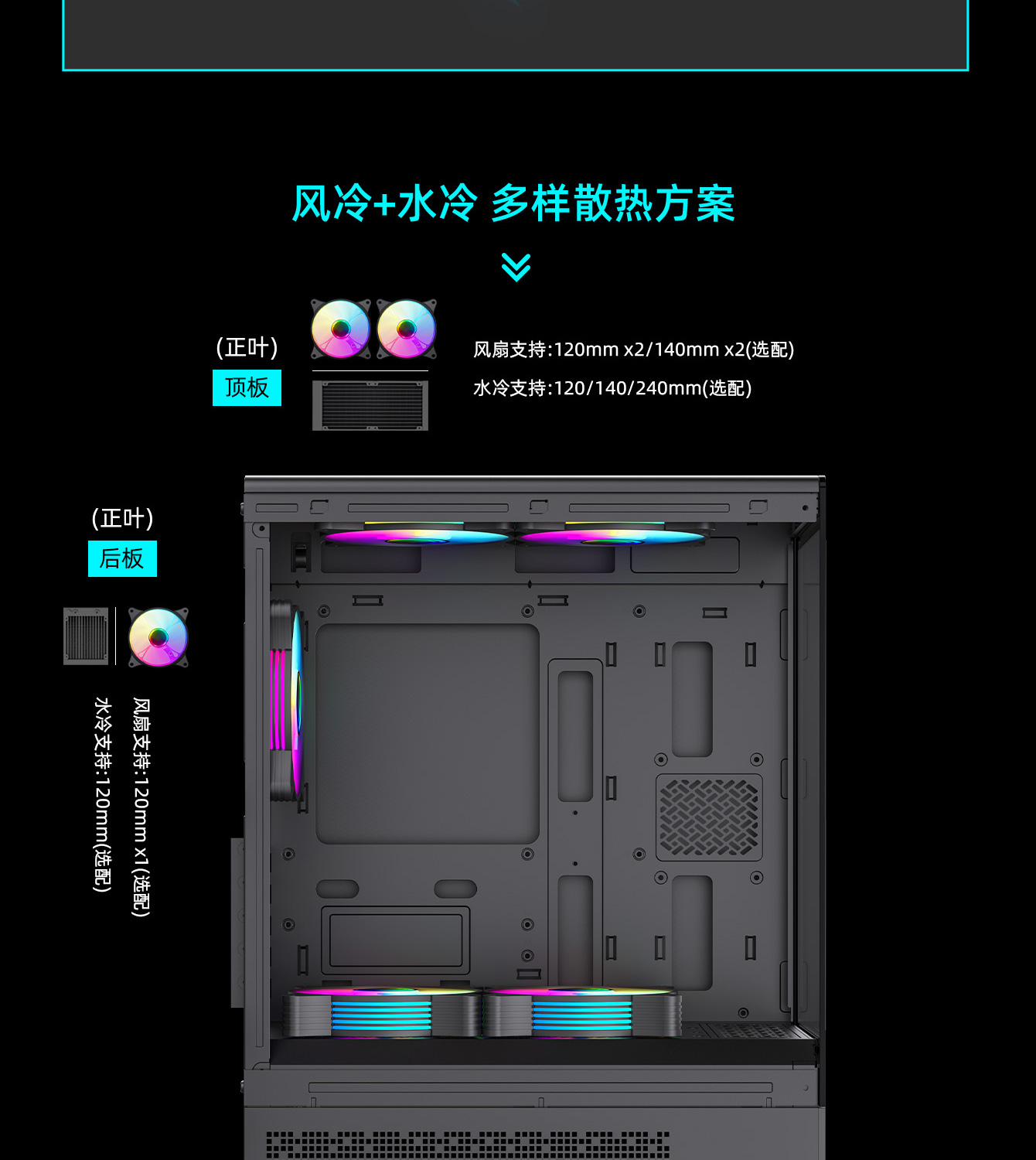

| Cooling Fan Support | Front | N/A |
| Top | 2x120mm ,2x140mm (Fan Optional) | |
| Rear | 1x120mm (Fan Optional) | |
| Left Side | N/A | |

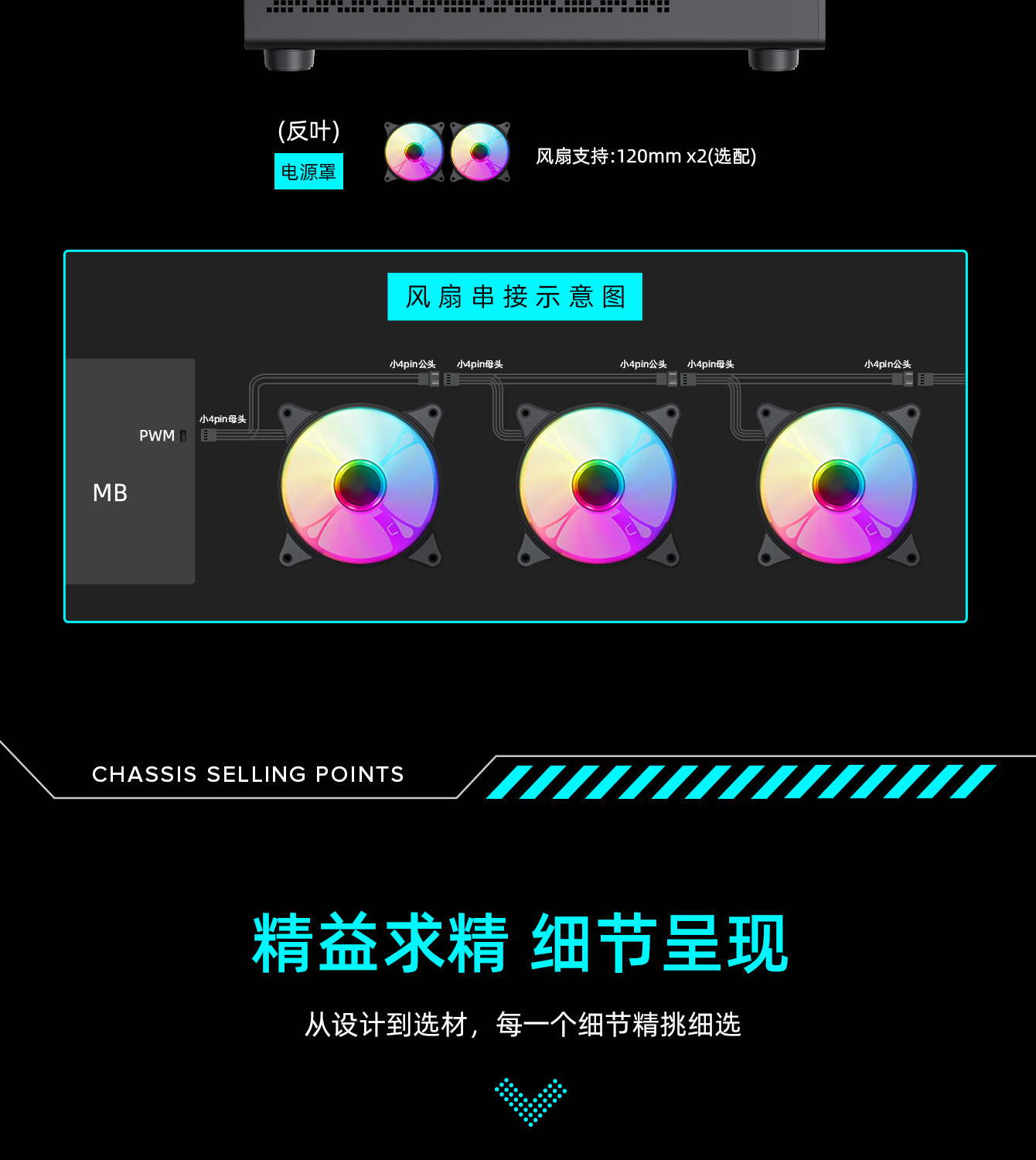

| PSU Cover | 2x120mm (Fan Optional) | |
| Water Cooling Support (Radiator Size) | Front | N/A |
| Top | 120mm, 140mm,240mm | |
| Rear | 120mm*1 | |

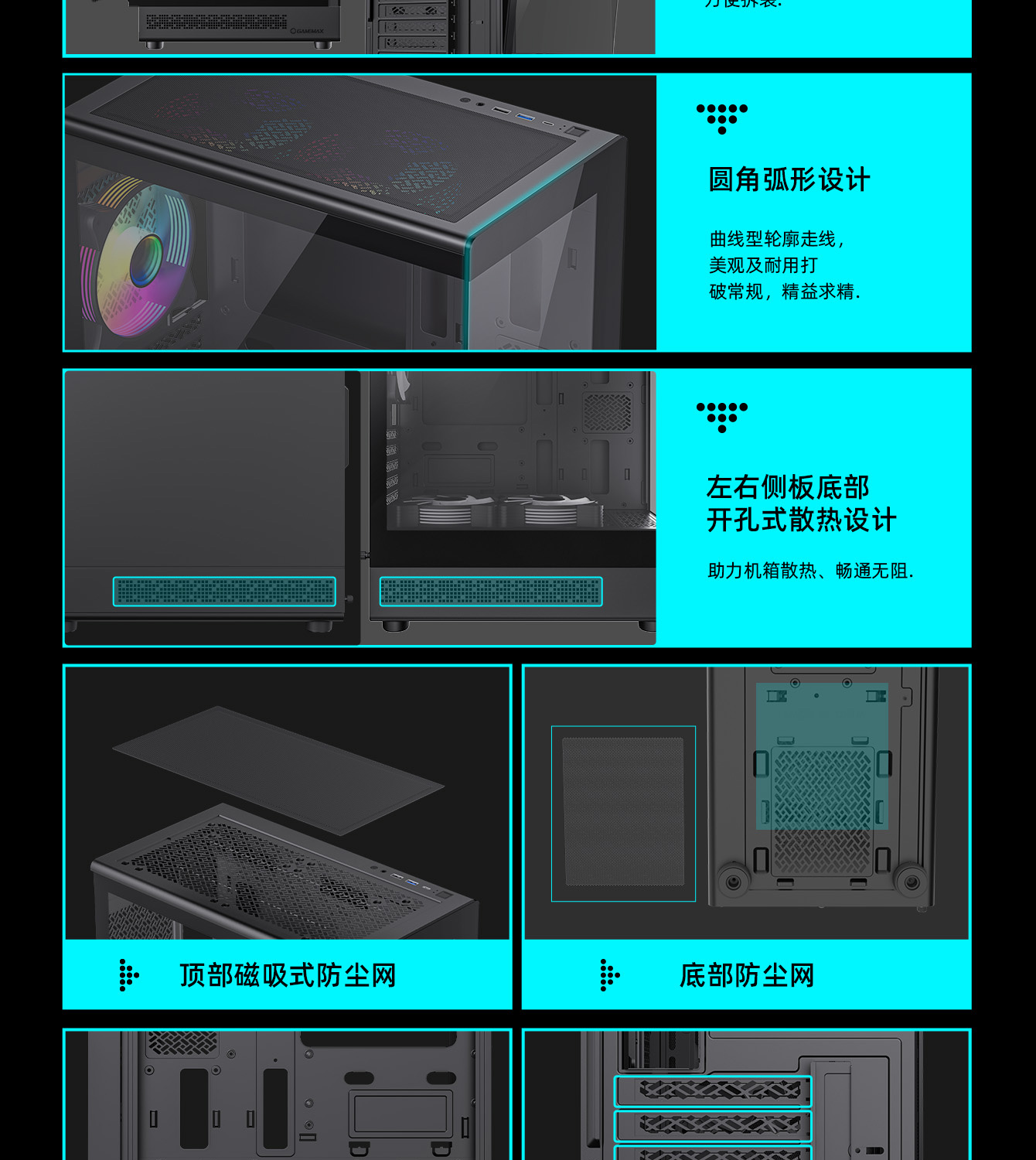

| Dust Cover | Bottom and Top Cover With Dust Filter | |
| Slots | *5 | |
| Carton & Logo | By OEM | |

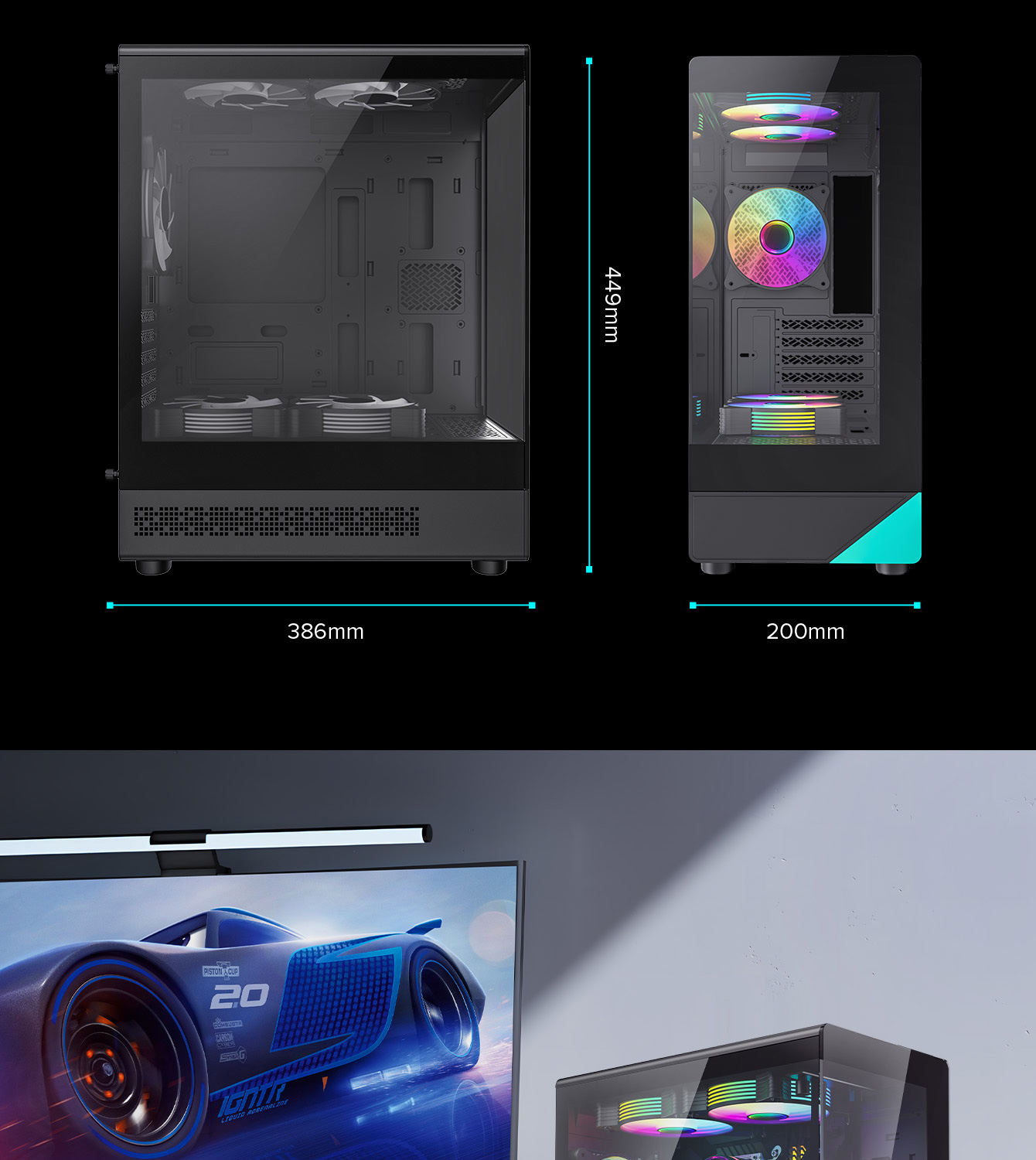

| Dimensions | Chassis | (L)340*(W)200*(H)436mm |
| Full Case (inc Fascia) | (L)358*(W)200*(H)449mm | |
| Carton | (L)458*(W)255*(H)456mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | Up to 330mm | |
| CPU Cooler Height | Up to 155mm | |
| PSU Length | Up to 160mm | |
| Cable Management Depth | 19mm | |
