6506

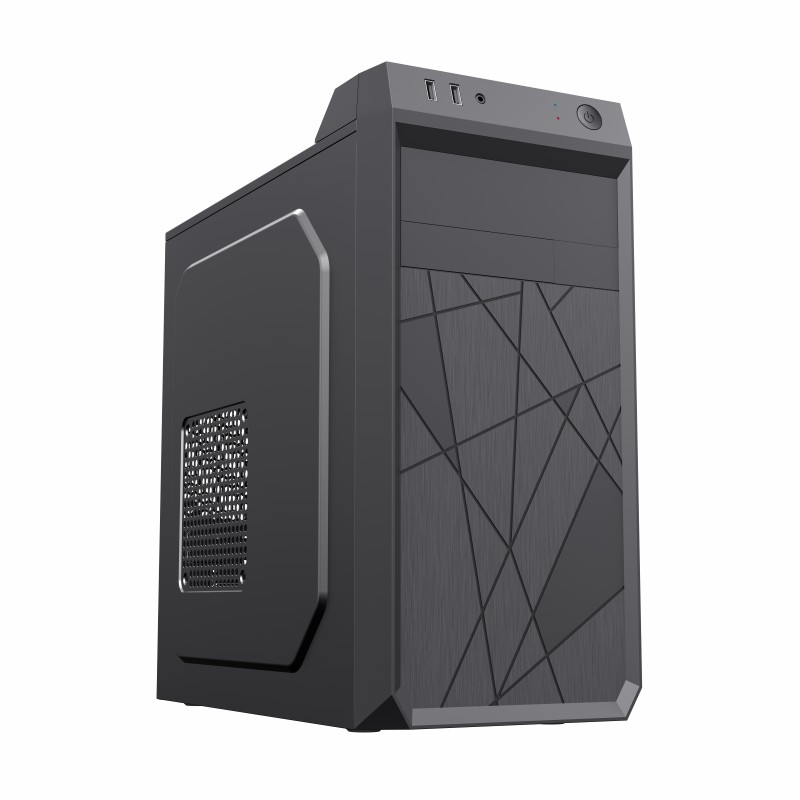

Sohoo 6506 mATX Chassis, support full size of mATXmotherboard size 244*244mm
With carry handle design on top of case
2xUSB ports+1 COMBO audio (2 in 1)
Open Structure ,easy for install hardware components
Support 2x 12CM RGB fan front panel
Support 1x 8CM rear board
Extra long graphics card can be installed
rear motherboard plate cable management
CPU cooler 140mm
Micro ATX Chassis
SPECIFICATION
Form Factor   (Midi, Micro, Mini ITX, Full)Micro
ChassisSPCC,SGCC  0.4mm
PSU Form   FactorTOP/ATX
M/B Form   FactorMicro-ATX、Mini-ITX
Front PanelABS
Top PanelMetal
Side PanelLeftMetal   cover
RightMetal   cover
External   Drive Bay(s)5.25"   (ODD)*1
3.5"*1
Internal   Drive Bay(s)3.5"   (HDD)*2
2.5" (SSD)*3
I/OButtons*2
USB2.0 Port(s)*2
USB3.0 Port(s)*0(Optional)
USB3.1 Port(s)*0(Optional)
COMBO Audio Support*1
Card Reader (Support)*0
P-Lock*0
Controller max. fansKensington lock,Pad lock,Alarm Switch,electronic lock(Optional)
Cooling Fan  SupportFront2x120/92/80mm(Fan   optional)
Top0
Rear1x92/80(Fan   optional)
Left Side1x120mm(Fan   optional)
PSU Cover0
Water   Cooling SupportFront0
(Radiator Size)Top0

Rear0
Dust Cover0
Slots*4
Carton   & LogoSohoo by OEM
DimensionsChassis(L)325*(W)170*(H)350mm
Full Case (inc Fascia)(L)368*(W)178*(H)353mm
Carton(L)390*(W)209*(H)400mm
Net Weight (Kg)3 kgs
Gross Weight (Kg)4 kgs
VGA Card   Lengthup to   270mm
CPU Cooler   Height140mm
Cable   Management Depth14mm
