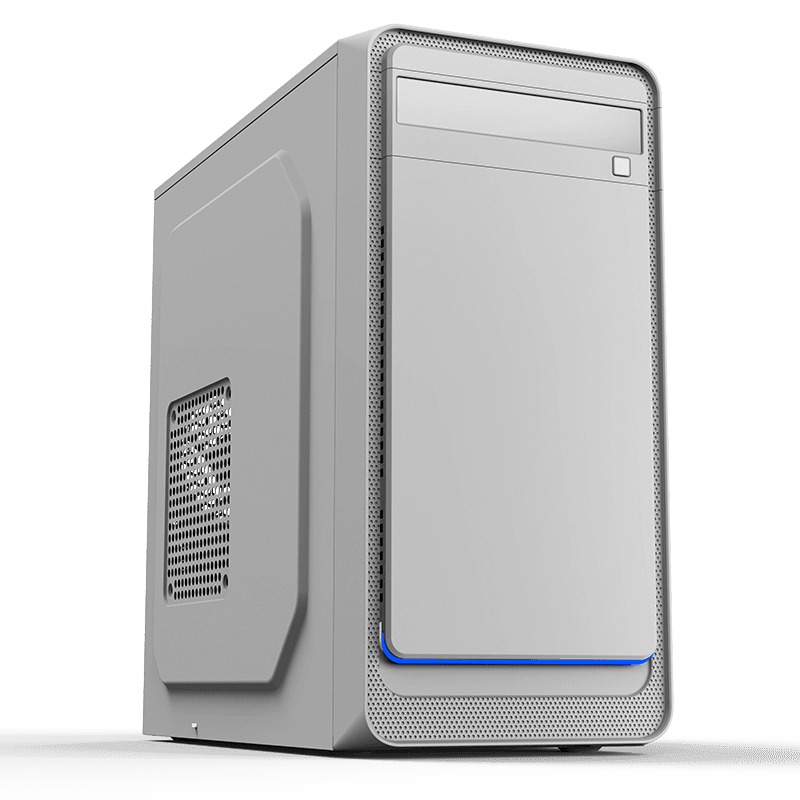

Model Micro ATX Chassis | SPECIFICATION | |
Form Factor (Midi, Micro, Mini ITX, Full) | Micro | |
Chassis | SPCC,SGCC 0.4mm | |
PSU Form Factor | TOP/ATX | |
M/B Form Factor | Micro-ATX、Mini-ITX | |
Front Panel | ABS | |
Top Panel | Metal | |
Side Panel | Left | Metal cover |
Right | Metal cover | |
External Drive Bay(s) | 5.25" (ODD) | *1 |
3.5" | *0 | |
Internal Drive Bay(s) | 3.5" (HDD) | *2 |
2.5" (SSD) | *3 | |
I/O | Buttons | *2 |
USB2.0 Port(s) | *2 | |
USB3.0 Port(s) | *0(Optional) | |
USB3.1 Port(s) | *0(Optional) | |
HD Audio Support | *1 | |
Card Reader (Support) | *0 | |
P-Lock | *0 | |
Controller max. fans | Kensington lock,Pad lock,Alarm Switch,electronic lock(Optional) | |
Cooling Fan Support | Front | 2x120/92/80mm(Fan optional) |
Top | 0 | |
Rear | 1x92/80(Fan optional) | |
Left Side | 1x120mm(Fan optional) | |
PSU Cover | 0 | |
Water Cooling Support (Radiator Size) | Front | 0 |
Top | 0 | |
Rear | 0 | |
Dust Cover | 0 | |
Slots | *4 | |
Carton & Logo | Sohoo by OEM | |
Dimensions | Chassis | (L)325*(W)170*(H)350mm |
Full Case (inc Fascia) | (L)368*(W)178*(H)353mm | |
Carton | (L)390*(W)209*(H)400mm | |
Net Weight (Kg) | 3 kgs | |
Gross Weight (Kg) | 4 kgs | |
VGA Card Length | up to 270mm | |
CPU Cooler Height | 140mm | |
Cable Management Depth | 14mm |
